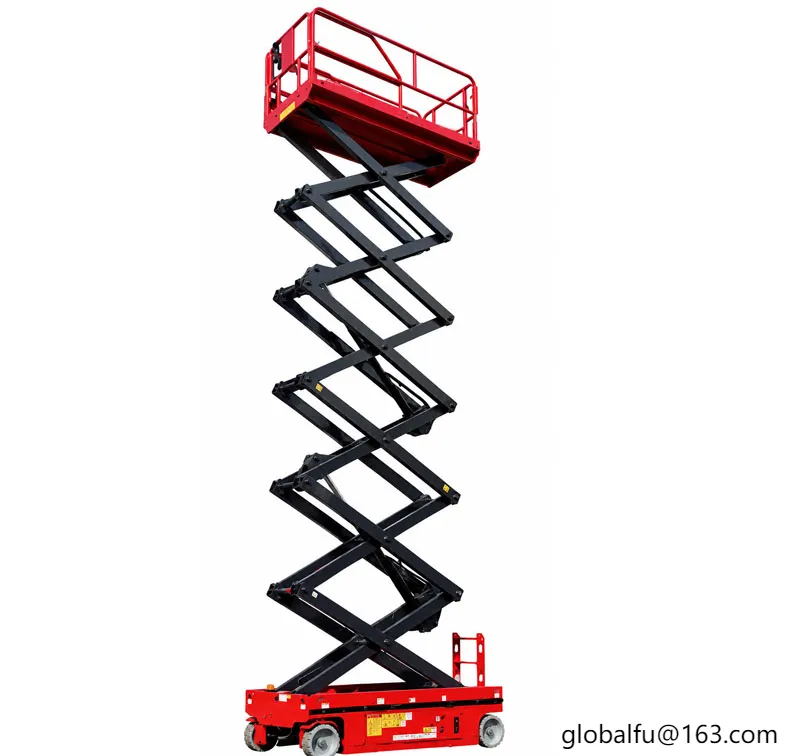

The PT1416 Self Propelled Scissor Lift Platform is a professional aerial access solution designed for industrial maintenance, equipment installation, inspection, and construction applications. With a maximum working height of 15.8m, a maximum platform height of 13.8m, and a 227kg safe working load, the PT1416 provides stable vertical access for high-level operations. Equipped with a self-propelled hydraulic drive system, large working platform, and extendable platform design, this mobile scissor lift platform improves working efficiency by allowing operators to complete elevated tasks with better flexibility and control. The PT1416 combines electric drive technology, reinforced lifting structure, and multiple safety protection systems, making it suitable for professional users who require reliable aerial work equipment.
227kg
113kg
2700 × 1150mm
900mm
24V / 4.5kW
CATL Lithium Battery / Lead Acid Battery
3900kg
Get Latest Price
Download PDF Catalog
| Item | Specification |
| Model | PT1416 |
| Drive Type | Self-propelled Hydraulic Drive |
| Maximum Working Height | 15.8m |
| Maximum Platform Height | 13.8m |
| Safe Working Load | 227kg |
| Extend Platform Safety Workload | 113kg |
| Working Platform Size | 2700 × 1150mm |
| Overall Dimensions (Unfolded Guardrail) | 2.87 × 1.37 × 2.87m |
| Overall Dimensions (Folded Guardrail) | 2.87 × 1.37 × 2.30m |
| Platform Extension Size | 900mm |
| Minimum Ground Clearance | 100/20mm |
| Wheelbase | 2260mm |
| Turning Radius (Inner/Outer Wheel) | 0 / 3.13m |
| Lifting/Driving Motor | 24V / 4.5kW |
| Travel Speed (Retracted State) | 3.5km/h |
| Travel Speed (Lifting State) | 0.8km/h |
| Battery | CATL Lithium Battery / Lead Acid Battery |
| Charger | 24V/30A |
| Maximum Climb Capability | 25% |
| Maximum Allowable Angle for Work | 1.5° / 3° |
| Tire Size | Φ381 × 127mm |
| Total Weight | 3900kg |
The heavy-duty scissor mechanism provides stable vertical lifting performance for high-altitude operations.
Key structural components include:
Steel plate welded base frame
High-strength lifting arms
Hydraulic cylinder lifting system
Polymer carbon fiber bearing components
The reinforced structure helps maintain platform stability during lifting and working operations.
The PT1416 adopts a self propelled hydraulic drive system combining lifting and traveling functions.
The system includes:
24V / 4.5kW lifting and driving motor
Hydraulic drive system
Hydraulic valve block
Hydraulic cylinder
This configuration supports smooth operation, accurate control, and efficient movement on suitable working surfaces.
The PT1416 features a spacious working platform designed for professional aerial tasks.
Specifications:
Working platform size: 2700 × 1150mm
Extension platform size: 900mm
The extendable platform provides additional working space for operators and equipment, improving convenience during installation and maintenance work.
The PT1416 uses an electric power configuration suitable for indoor and outdoor aerial applications.
Battery options include:
CATL Lithium Battery
Lead Acid Battery
The electric system supports flexible operation without requiring continuous external power connection.
The machine integrates multiple safety systems to improve operational reliability.
Main configurations include:
Proportional control system
Automatic braking system
Emergency descent system
Emergency stop button
Platform self-locking door
Fault diagnosis system
Tilt protection system
Charging protection system
These systems help operators perform aerial work with improved safety and control.
The PT1416 is equipped with a stable mobility system for jobsite transportation.
Main components include:
Φ381 × 127mm tires
2260mm wheelbase
25% climbing capability
The chassis design supports movement across suitable construction and maintenance areas.
