The PT1012 Self-propelled Scissor Lift Platform is a professional aerial access machine designed for maintenance, installation, inspection, and elevated working applications. Featuring a maximum working height of 11.8m, a maximum platform height of 9.8m, and a safe working load of 320kg, this self propelled scissor lift platform provides stable vertical access and efficient operation for professional users. Equipped with a self-propelled hydraulic drive system, a large working platform, and a 900mm extendable platform, the PT1012 improves working flexibility while reducing the need for frequent manual repositioning. The compact mobile structure and electric drive configuration make this mobile scissor lift platform suitable for industrial facilities, warehouses, workshops, equipment maintenance, and other professional aerial work environments.
320kg
113kg
Self-propelled Hydraulic Drive
2300 × 1150mm
900mm
24V / 3.3kW
Get Latest Price
Download PDF Catalog
| Item | Specification |
| Model | PT1012 |
| Drive System | Self-propelled Hydraulic Drive |
| Maximum Working Height | 11.8m |
| Maximum Platform Height | 9.8m |
| Safe Working Load | 320kg |
| Extend Platform Safety Workload | 113kg |
| Work Platform Size | 2300 × 1150mm |
| Overall Dimensions (Unfolded Guardrail) | 2.45 × 1.18 × 2.48m |
| Overall Dimensions (Folded Guardrail) | 2.45 × 1.18 × 1.88m |
| Platform Extension Size | 900mm |
| Minimum Ground Clearance | 100/20mm |
| Wheelbase | 1920mm |
| Turning Radius | 2.65m |
| Lifting / Driving Motor | 24V / 3.3kW |
| Machine Travel Speed (Retracted State) | 3.5km/h |
| Machine Travel Speed (Lifted State) | 0.8km/h |
| Battery Options | CATL Lithium Battery / Lead Acid Battery |
| Charger | 24V/30A |
| Maximum Climb Capability | 25% |
| Maximum Allowable Angle for Work | 1.5°/3° |
| Tire Size | Φ380 × 127mm |
| Total Weight | 2750kg |
The PT1012 uses a self-propelled hydraulic drive system that combines lifting and traveling functions.
The drive system allows the machine to move independently on the job site, helping operators position the equipment more efficiently during maintenance, installation, and inspection tasks.

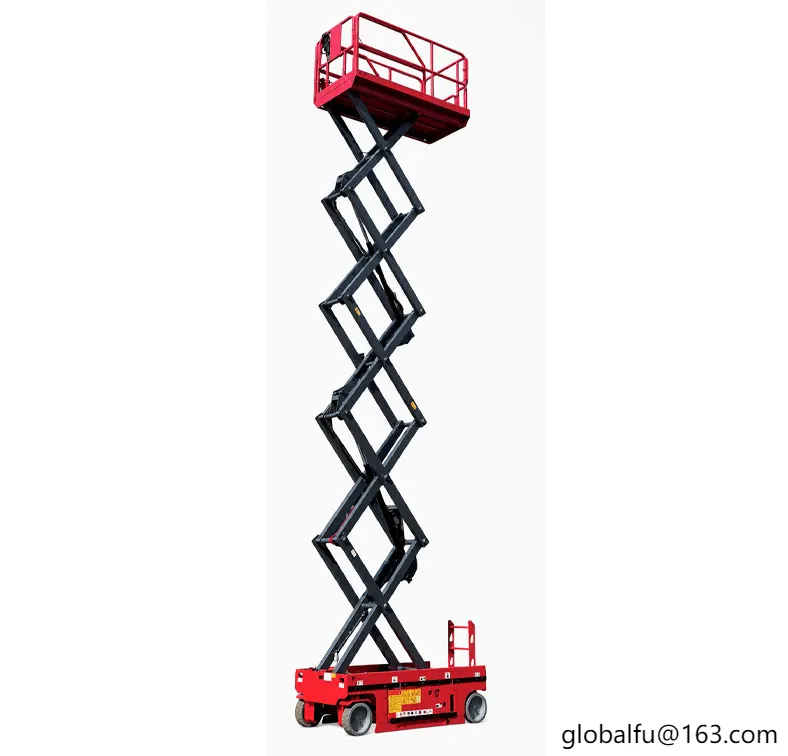

The heavy-duty scissor structure provides stable vertical lifting performance for high-level working requirements.
With an 11.8m maximum working height and 9.8m maximum platform height, the PT1012 is suitable for applications requiring reliable elevated access.
The reinforced lifting mechanism supports smooth platform movement while maintaining operational stability.

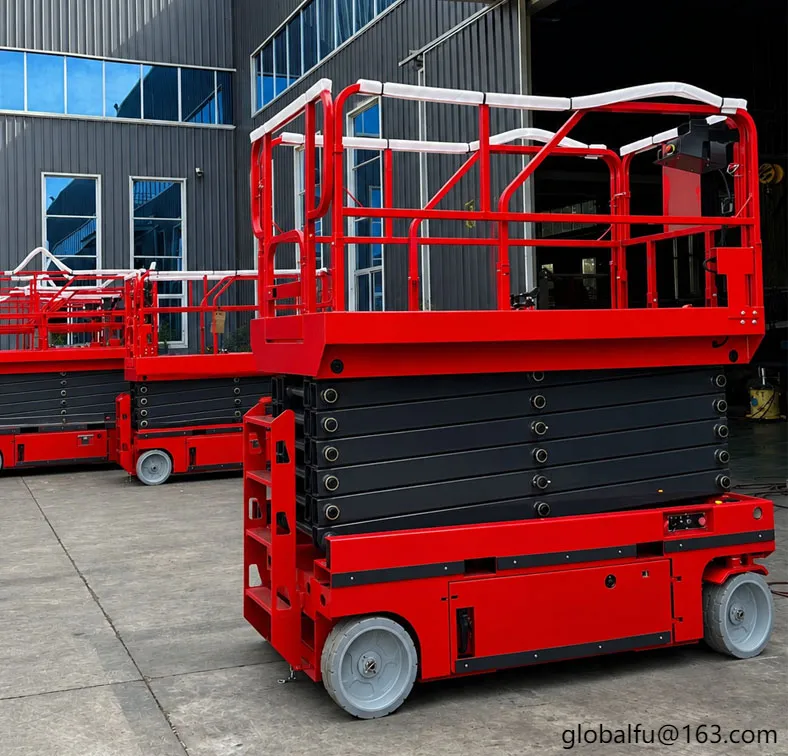

The PT1012 features a 2300 × 1150mm working platform with a 900mm extension system.
The extendable platform design provides additional working space, allowing operators to access wider working areas more conveniently.
This configuration makes the machine an effective extendable platform scissor lift solution for professional aerial work.
The PT1012 is equipped with a 24V / 3.3kW lifting and driving motor.
The machine supports:
CATL Lithium Battery
Lead Acid Battery
The electric power configuration provides a practical solution for indoor and outdoor professional working environments.

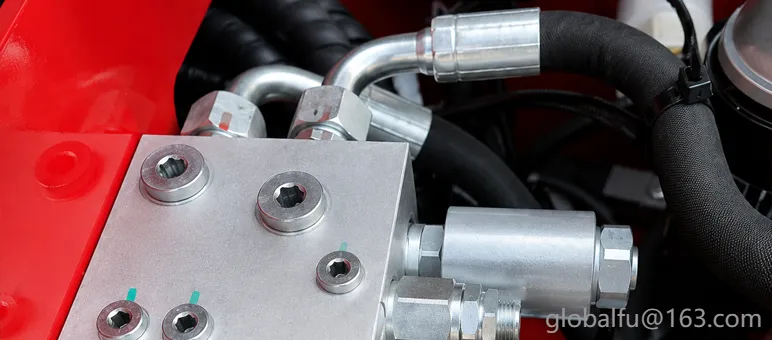

As a hydraulic scissor lift, the PT1012 uses a hydraulic lifting system to provide controlled platform elevation.
The hydraulic system supports stable lifting movement and coordinated operation between lifting and driving functions.
The PT1012 includes multiple control and safety systems designed to support reliable operation.
Main configurations include:
Proportional control system
Automatic braking system
Buzzer
Automatic pit protection system
Emergency descent system
Emergency stop button
Platform self-locking door
Fault diagnosis system
Tilt protection system
Charging protection system
Extended platform system
These systems help operators manage aerial work operations with improved control and convenience.
