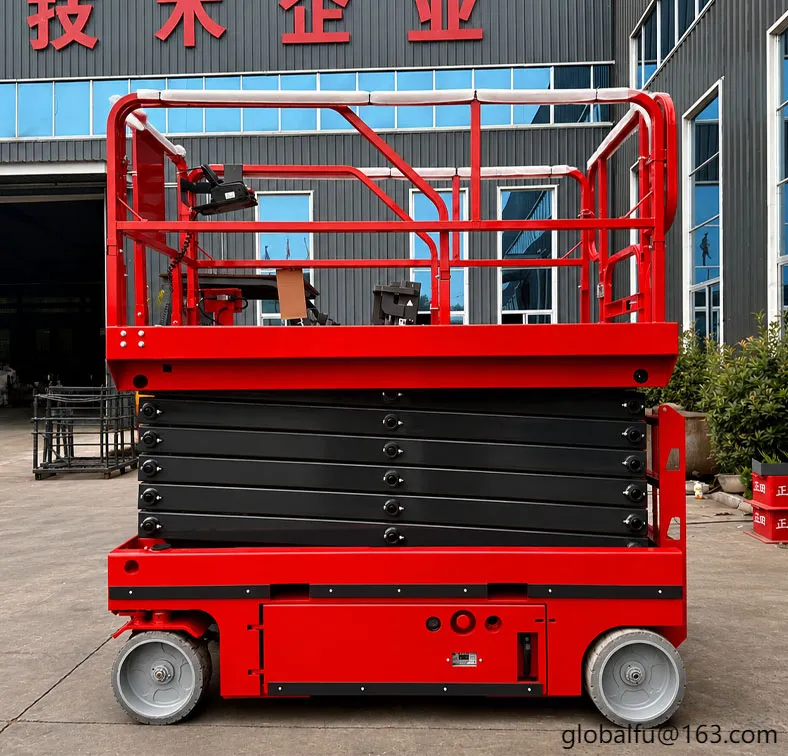

The PT0810 Self-propelled Scissor Lift Platform is a compact aerial work platform designed for maintenance, installation, inspection, and elevated working applications requiring stable lifting and flexible movement. With a maximum working height of 9.8m, a maximum platform height of 7.8m, and a safe working load of 230kg, this self propelled scissor lift platform provides efficient vertical access for professional working environments. Equipped with a self-propelled hydraulic drive system, electric power configuration, and a 900mm extendable platform, the PT0810 helps improve working efficiency while reducing manual repositioning during elevated operations. The compact structure, mobile design, and reliable lifting system make this mobile scissor lift platform suitable for indoor and outdoor maintenance tasks, equipment installation, facility inspection, workshops, warehouses, and other professional work areas.
230kg
113kg
Self-propelled Hydraulic Drive
900mm Extendable Platform
24V / 3.3kW
CATL Lithium Battery / Lead Acid Battery
Get Latest Price
Download PDF Catalog
| Item | Specification |
| Model | PT0810 |
| Drive Type | Self-propelled Hydraulic Drive |
| Maximum Working Height | 9.8m |
| Maximum Platform Height | 7.8m |
| Safe Working Load | 230kg |
| Extend Platform Safety Workload | 113kg |
| Work Platform Size | 2300 × 810mm |
| Overall Dimensions (Unfolded Guardrail) | 2.45 × 0.85 × 2.36m |
| Overall Dimensions (Folded Guardrail) | 2.45 × 0.85 × 1.76m |
| Platform Extension Size | 900mm |
| Minimum Ground Clearance | 100/20mm |
| Wheelbase | 1920mm |
| Turning Radius | 2.63m |
| Lifting / Driving Motor | 24V / 3.3kW |
| Machine Travel Speed (Retracted State) | 3.5km/h |
| Machine Travel Speed (Lifted State) | 0.8km/h |
| Battery Options | CATL Lithium Battery / Lead Acid Battery |
| Charger | 24V/30A |
| Maximum Climb Capability | 25% |
| Maximum Allowable Angle for Work | 1.5°/3° |
| Tire Size | Φ380×127mm |
| Total Weight | 2150kg |
The PT0810 uses a self-propelled hydraulic drive system that allows the machine to move independently during operation.
This design helps operators reposition the equipment more efficiently between different working areas, reducing manual movement requirements and improving workflow efficiency on job sites.

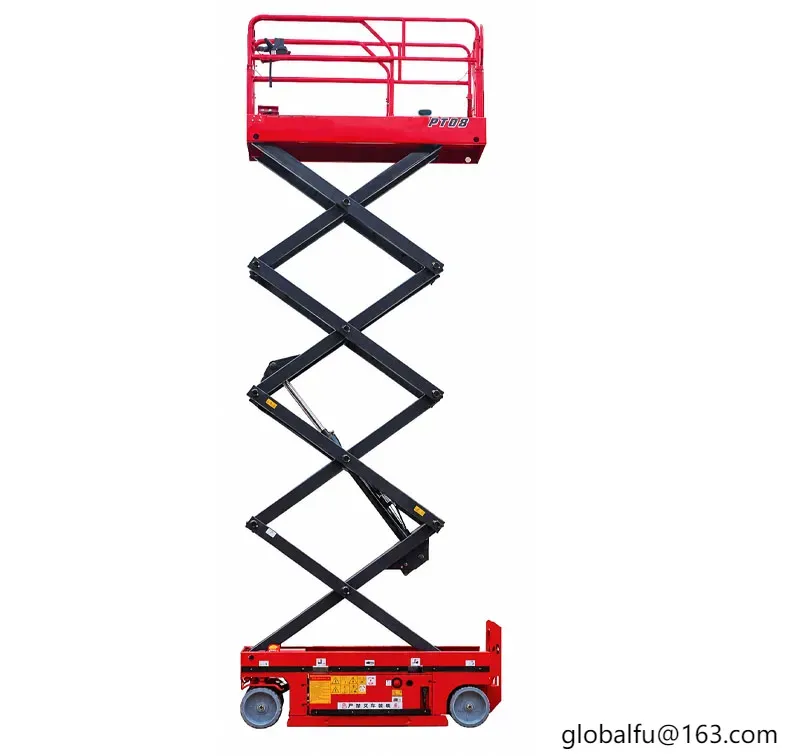

The reinforced scissor lifting structure provides controlled vertical movement and supports a maximum working height of 9.8m.
With a maximum platform height of 7.8m, the machine provides practical elevated access for maintenance, installation, and inspection tasks where stable platform positioning is required.
The PT0810 features a 900mm platform extension, increasing the available working area when additional access space is needed.
The scissor lift platform extension design allows operators to work more conveniently in wider areas while maintaining stable platform operation.

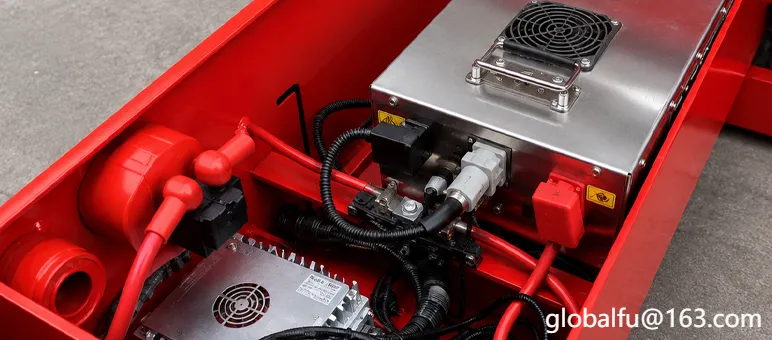

The machine is equipped with a 24V / 3.3kW lifting and driving motor.
The battery system supports mobile operation with CATL lithium battery or lead acid battery options, providing a practical power solution for different working environments.
The hydraulic lifting system supports smooth platform elevation and stable operation.
As a hydraulic scissor lift, the PT0810 combines hydraulic lifting performance with self-propelled mobility, providing a flexible aerial access solution for professional users.
The PT0810 includes multiple control and safety-related configurations, including:
Proportional control system
Automatic braking system
Emergency descent system
Emergency stop button

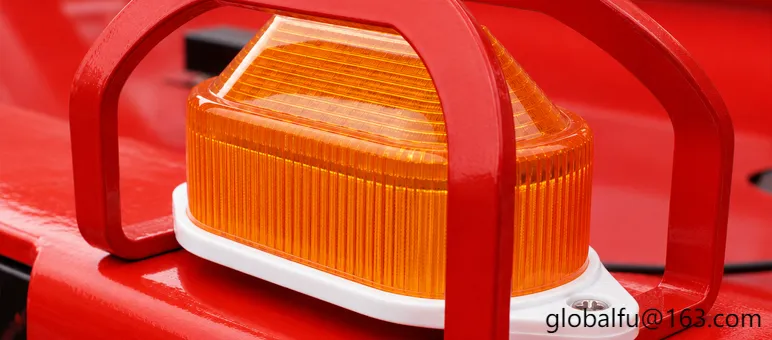

Buzzer
Platform self-locking door
Fault diagnosis system
Tilt protection system
Charging protection system
These configurations support controlled operation and help improve working safety during daily use.
