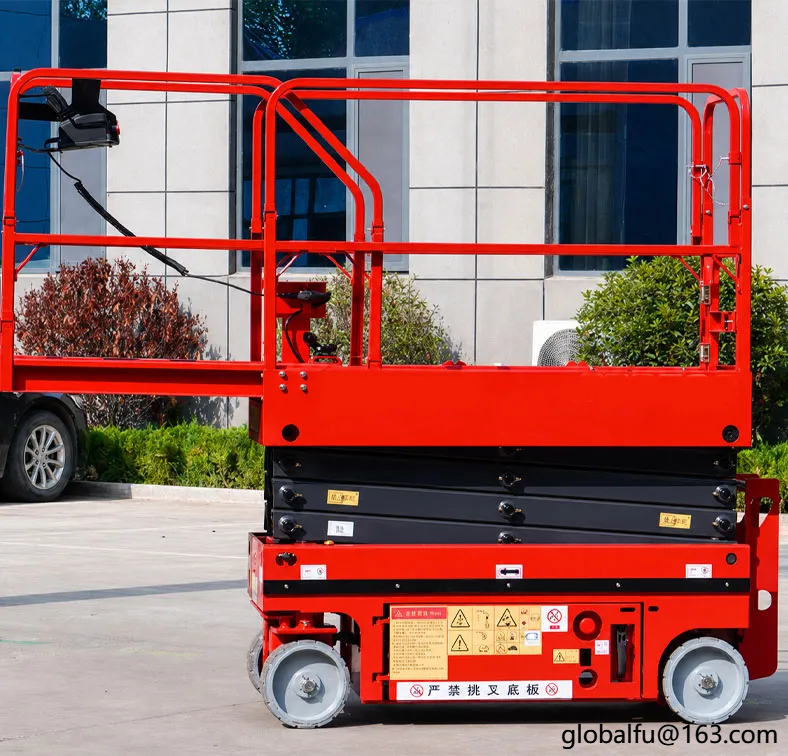

The PT0608 Self-propelled Scissor Lift Platform is a compact mobile aerial work solution designed for maintenance, installation, inspection, and elevated working applications where safe access and flexible movement are required. With a maximum working height of 7.8m, a maximum platform height of 5.8m, and a safe working load of 230kg, this self propelled scissor lift platform provides efficient vertical access for professional working environments. Equipped with a self-propelled hydraulic drive system, electric power configuration, and an extendable working platform, the PT0608 helps operators improve working efficiency while reducing manual repositioning during elevated tasks. The compact structure and mobile design make this mobile scissor lift platform suitable for indoor and outdoor maintenance applications, workshops, warehouses, equipment installation areas, and other jobsite environments requiring reliable aerial access.
230kg
Self-propelled Hydraulic Drive
900mm Extendable Platform
24V / 3.3kW
3–5m/min (Lifted State)
1500kg
Get Latest Price
Download PDF Catalog
| Item | Specification |
| Model | PT0608 |
| Drive Type | Self-propelled Hydraulic Drive |
| Maximum Working Height | 7.8m |
| Maximum Platform Height | 5.8m |
| Safe Working Load | 230kg |
| Extend Platform Safety Workload | 113kg |
| Work Platform Size | 1680 × 740mm |
| Overall Dimensions (Unfolded Guardrail) | 1.83 × 0.76 × 2.18m |
| Overall Dimensions (Folded Guardrail) | 1.83 × 0.76 × 1.8m |
| Platform Extension Size | 900mm |
| Minimum Ground Clearance | 83/16mm |
| Wheelbase | 1360mm |
| Turning Radius | 2.35m |
| Lifting / Driving Motor | 24V / 3.3kW |
| Machine Travel Speed (Retracted State) | 3.5km/h |
| Machine Travel Speed (Lifted State) | 0.8km/h |
| Battery | Lithium Battery / Lead Acid Battery |
| Charger | 24V/30A |
| Maximum Climb Capability | 25% |
| Maximum Allowable Angle for Work | 1.5°/3° |

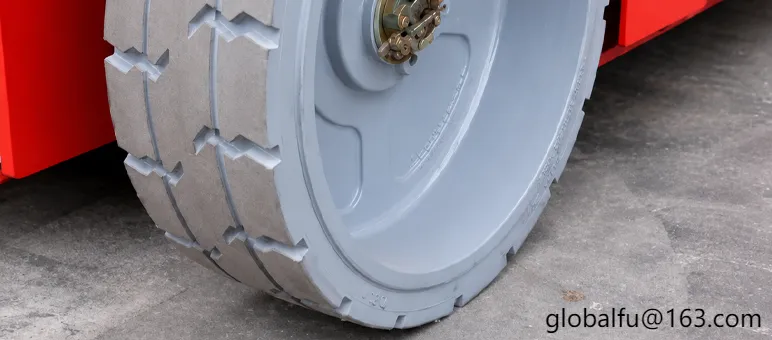

| Tire Size | Φ305×100mm |
| Total Weight | 1500kg |
The PT0608 adopts a self-propelled hydraulic drive system that allows the machine to move independently during operation.
The integrated drive configuration helps operators reposition the machine more efficiently between different working areas, making it suitable for applications requiring frequent movement and flexible access.

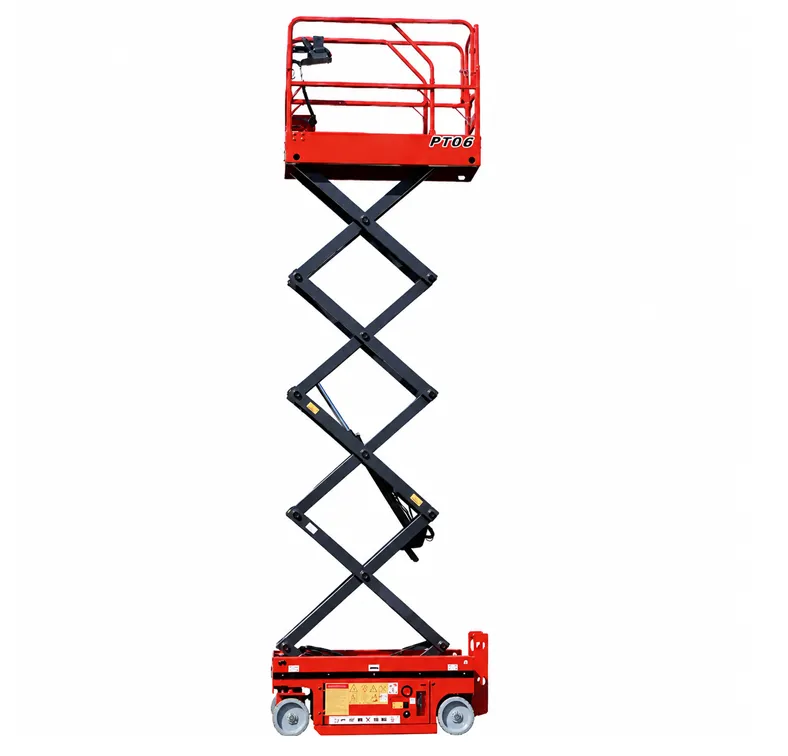

The reinforced scissor lifting structure provides controlled vertical movement and supports a maximum working height of 7.8m.
The lifting mechanism is designed for elevated maintenance and installation tasks where stable platform positioning is required.
The PT0608 features a 900mm platform extension, providing additional working space for operators when required.
The scissor lift platform extension design helps improve accessibility in wider working areas while maintaining convenient operation.
The machine uses a 24V / 3.3kW lifting and driving motor with battery-powered operation.
The electric system provides a practical solution for workplaces requiring mobile lifting equipment with convenient operation and reduced dependence on external power sources.

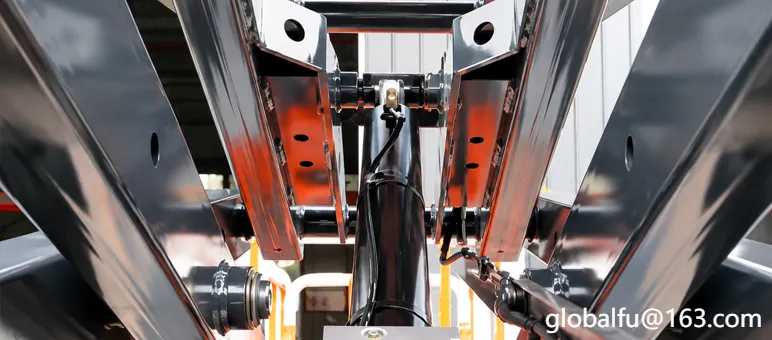

The hydraulic system supports smooth lifting movement and stable platform operation.
As a hydraulic scissor lift, the PT0608 combines hydraulic lifting performance with self-propelled mobility to provide a flexible aerial working solution.

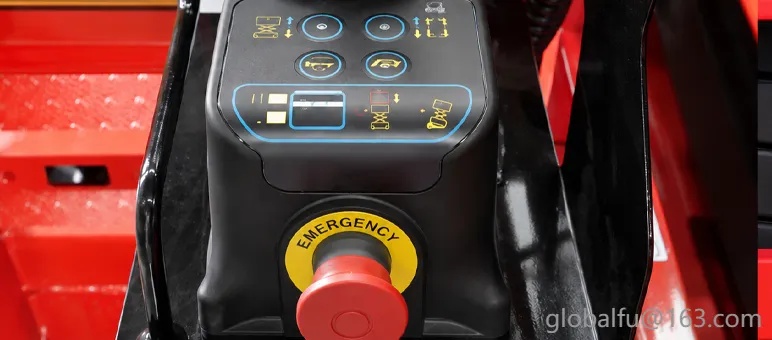

The PT0608 includes multiple control and safety-related configurations, including:
Proportional control system
Automatic braking system
Emergency descent system
Emergency stop button
Buzzer
Platform self-locking door
Fault diagnosis system
Tilt protection system
These systems support safer operation and easier equipment management during daily work.
