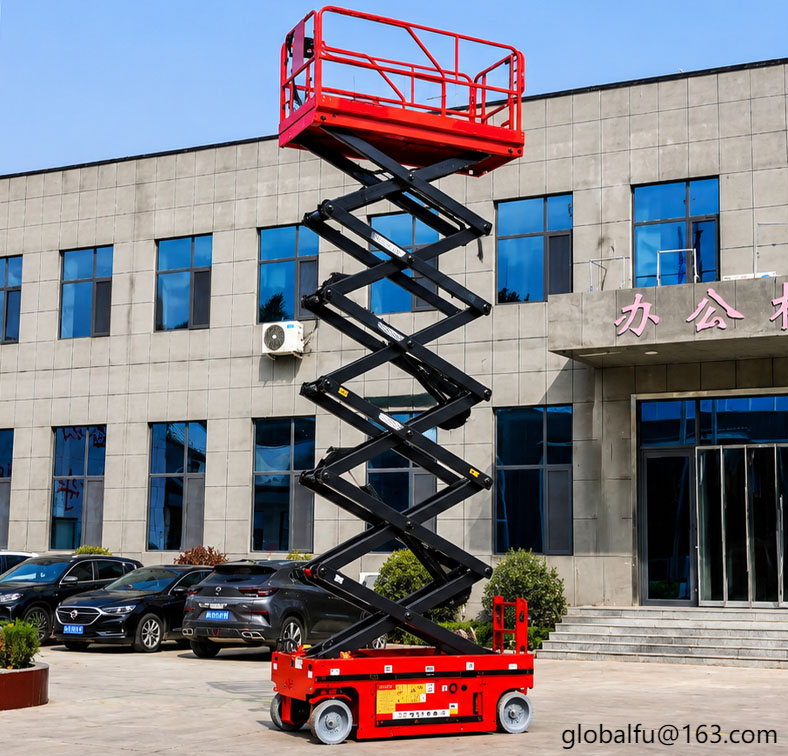

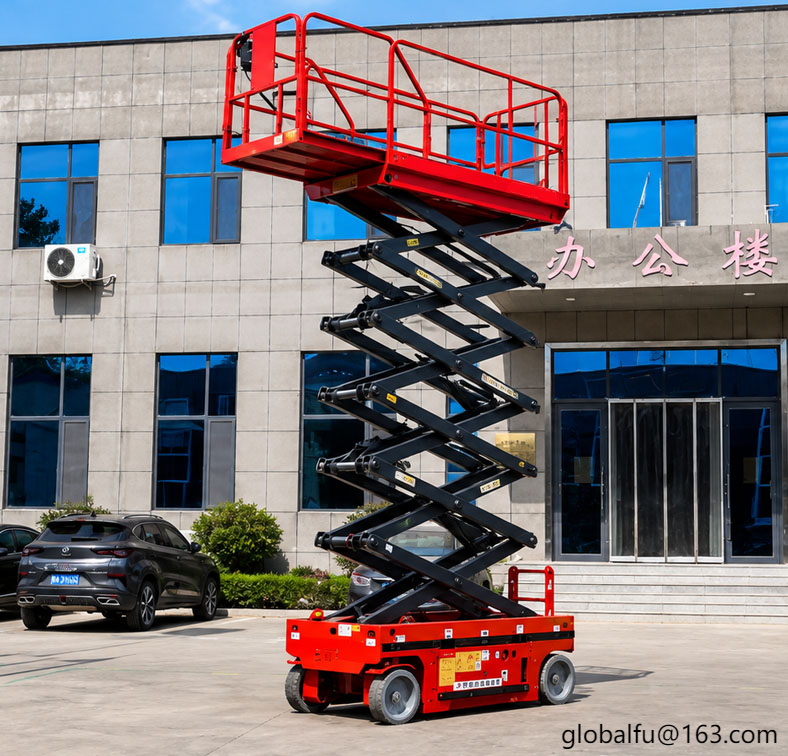

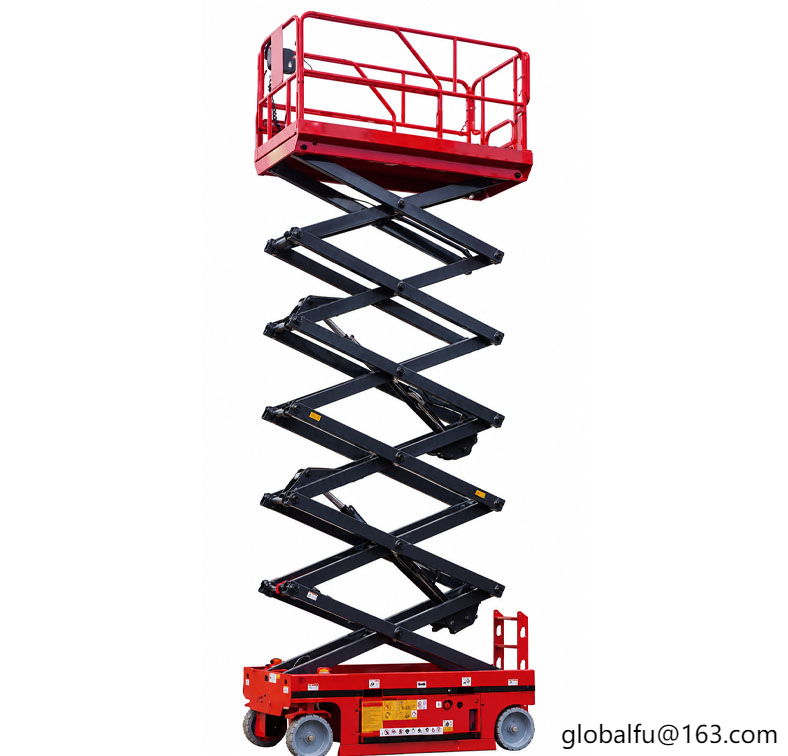

The PT1214 Self-propelled Scissor Lift Platform is a high-performance aerial access solution designed for professional maintenance, installation, inspection, and elevated working applications. With a maximum working height of 13.8m, a maximum platform height of 11.8m, and a 320kg safe working load, the PT1214 provides stable vertical access and excellent operational efficiency for industrial and commercial environments. Equipped with a self-propelled hydraulic drive system, a large working platform, and a 900mm extendable platform, this mobile scissor lift platform allows operators to complete elevated tasks with improved flexibility and productivity. The PT1214 combines electric drive technology, hydraulic lifting performance, and comprehensive safety systems, making it suitable for professional aerial work where reliability and working height are essential.
320kg
113kg
2300 × 1150mm
900mm
24V / 3.3kW
CATL Lithium Battery / Lead Acid Battery
2950kg
Get Latest Price
Download PDF Catalog
| Project | Parameter |
| Model | PT1214 |
| Drive Type | Self-propelled Hydraulic Drive |
| Maximum Working Height | 13.80m |
| Maximum Platform Height | 11.80m |
| Safe Working Load | 320kg |
| Extend Platform Safety Workload | 113kg |
| Work Platform Size | 2300 × 1150mm |
| Overall Dimensions (Unfolded Guardrail) | 2.45 × 1.18 × 2.60m |
| Overall Dimensions (Folded Guardrail) | 2.45 × 1.18 × 2.00m |
| Table Extension Size | 900mm |
| Minimum Ground Clearance | 100/20mm |
| Wheelbase | 1920mm |
| Turning Radius (Inner/Outer Wheel) | 0 / 2.65m |
| Lifting/Driving Motor | 24V / 3.3kW |
| Machine Travel Speed (Retracted State) | 3.5km/h |
| Machine Travel Speed (Lifting State) | 0.8km/h |
| Battery | CATL Lithium Battery / Lead Acid Battery |
| Charger | 24V/30A |
| Maximum Climb Capability | 25% |
| Maximum Allowable Angle for Work | 1.5° / 3° |
| Tire Size | Φ380 × 127mm |
| Total Weight | 2950kg |
The PT1214 adopts a self-propelled hydraulic drive system integrating lifting and traveling functions.
Operators can move the machine directly on the working site without frequent manual repositioning, improving job efficiency.
The drive system includes:
24V / 3.3kW lifting and driving motor
Hydraulic drive system
Automatic braking system
Proportional control system
This design supports smooth movement and accurate operation in professional working environments.

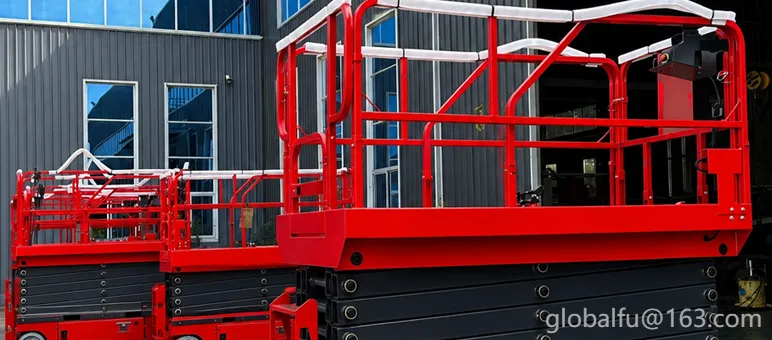

The PT1214 features a spacious working platform with:
Platform size: 2300 × 1150mm
Extension platform size: 900mm
The extended platform provides additional working space, allowing operators to handle tools and equipment more conveniently.
This makes the PT1214 an effective extendable platform scissor lift solution for demanding aerial applications.
The reinforced scissor lifting mechanism provides reliable vertical lifting performance.
The structure includes:
Steel plate welded base frame
High-strength scissor arms
Hydraulic cylinder lifting system
Polymer carbon fiber bearing components
The design helps maintain platform stability during lifting operations.
The PT1214 uses an electric drive configuration suitable for professional indoor and outdoor applications.
Power options include:
CATL Lithium Battery
Lead Acid Battery
The electric system supports efficient operation while reducing dependence on external power sources during working tasks.
The PT1214 is designed for applications requiring extended vertical access.
With:
13.8m maximum working height
11.8m maximum platform height
the machine provides efficient access for maintenance, installation, inspection, and facility management tasks.
Compared with standard lifting equipment, this tall scissor lift configuration offers greater working coverage while maintaining stable platform support.
The PT1214 integrates multiple safety systems to support reliable operation.
Main safety features include:
Automatic pit protection system
Emergency descent system
Emergency stop button
Platform self-locking door
Fault diagnosis system
Tilt protection system
Charging protection system
Safety maintenance support rod
Folding fence
These configurations improve operator control and working safety.
