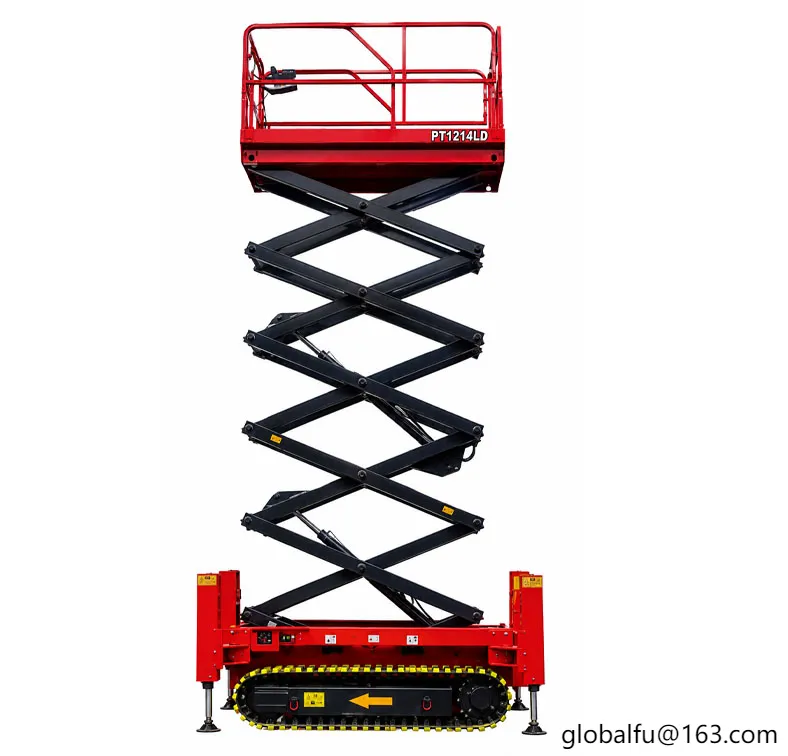

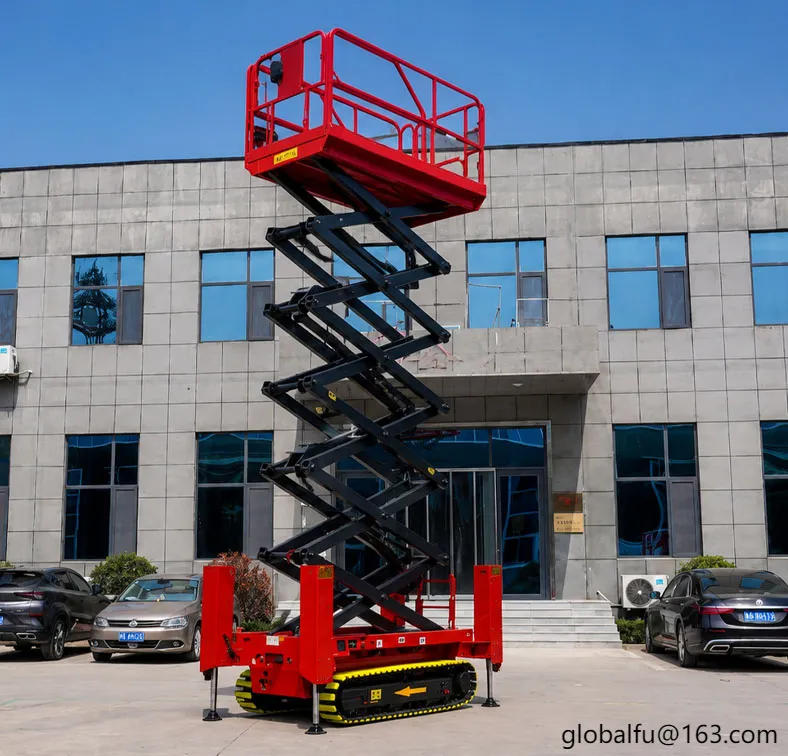

The PT1214LD Crawler Scissor Lift Platform is a self-propelled aerial work platform designed for elevated operations in complex outdoor environments. Equipped with a crawler track walking system and hydraulic scissor lifting structure, it provides stable access solutions for construction sites, industrial maintenance, equipment installation, and outdoor repair applications. With a maximum working height of 13.8m, maximum platform height of 11.8m, and 320kg safe working load, the PT1214LD combines high lifting capability, strong terrain adaptability, and reliable operation performance. The crawler drive system reduces ground pressure and improves mobility on uneven surfaces, making this crawler scissor lift suitable for demanding jobsite conditions where conventional wheeled platforms may have limitations.
320kg
2300 × 1150mm
900mm
48V / 4.5kW
48V / 4kW
Crawler Track Self-Propelled Drive
Get Latest Price
Download PDF Catalog
| Item | Specification |
| Model | PT1214LD |
| Drive Type | Self-propelled hydraulic drive |
| Product Type | Crawler Scissor Lift Platform |
| Maximum Working Height | 13.8m |
| Maximum Platform Height | 11.8m |
| Safe Working Load | 320kg |
| Extended Platform Safety Load | 113kg |
| Working Platform Size | 2300 × 1150mm |
| Overall Dimension (Unfolded Guardrail) | 2.77 × 1.55 × 2.71m |
| Overall Dimension (Folded Guardrail) | 2.77 × 1.55 × 2.1m |
| Platform Extension Size | 900mm |
| Hoisting Motor | 48V / 4.5kW |
| Walking Motor | 48V / 4kW |
| Travel Speed (Retracted) | 3.5km/h |
| Lifting Speed | 3–5m/min |
| Standard Battery | 8 × 6V / 240Ah |
| Charger | 48V / 40A |
| Maximum Gradeability | 30% |
| Maximum Working Angle | 1.5° / 3° |
| Total Weight | 3650kg |

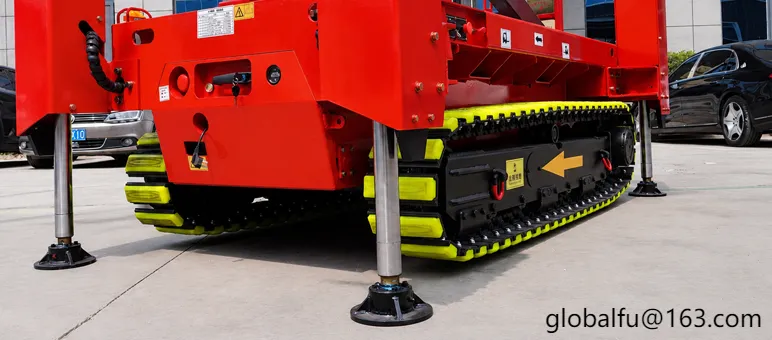

The PT1214LD adopts a crawler walking system that provides better ground adaptability compared with traditional wheeled aerial platforms.
Key benefits:
Lower ground pressure
Improved stability on uneven surfaces
Suitable for outdoor construction environments
Strong climbing ability up to 30%
Better mobility on rough and soft terrain
The crawler design makes the machine suitable for complex jobsite conditions.
The hydraulic scissor mechanism provides smooth lifting performance and reliable platform support.
The lifting system includes:
Hydraulic cylinder
Hydraulic valve block
Hydraulic motor pump system
High-strength scissor arms
This structure helps maintain platform stability during lifting and aerial operations.
The spacious platform design improves operator efficiency during installation and maintenance work.
Platform specifications:
Working platform size: 2300 × 1150mm
Extension platform size: 900mm
Extended platform safety workload: 113kg
The extension platform provides additional working space for tools and materials.
The PT1214LD uses an electric drive system designed for stable and efficient operation.
Power configuration:
Hoisting motor: 48V / 4.5kW
Walking motor: 48V / 4kW
Battery: 8 × 6V / 240Ah
Charger: 48V / 40A
The electric system provides:
Low operating noise
Easy maintenance
Efficient energy usage
Suitable indoor and outdoor operation
The PT1214LD includes multiple safety systems to improve operational reliability.
Safety functions include:
Automatic pit protection system
Emergency descent system
Emergency pause system
Platform self-locking door
Oil pipe explosion-proof system
Tilt protection system
Automatic braking system
Fault diagnosis system
Buzzer and horn warning system
Charging protection system
These functions help operators perform elevated work more safely.
