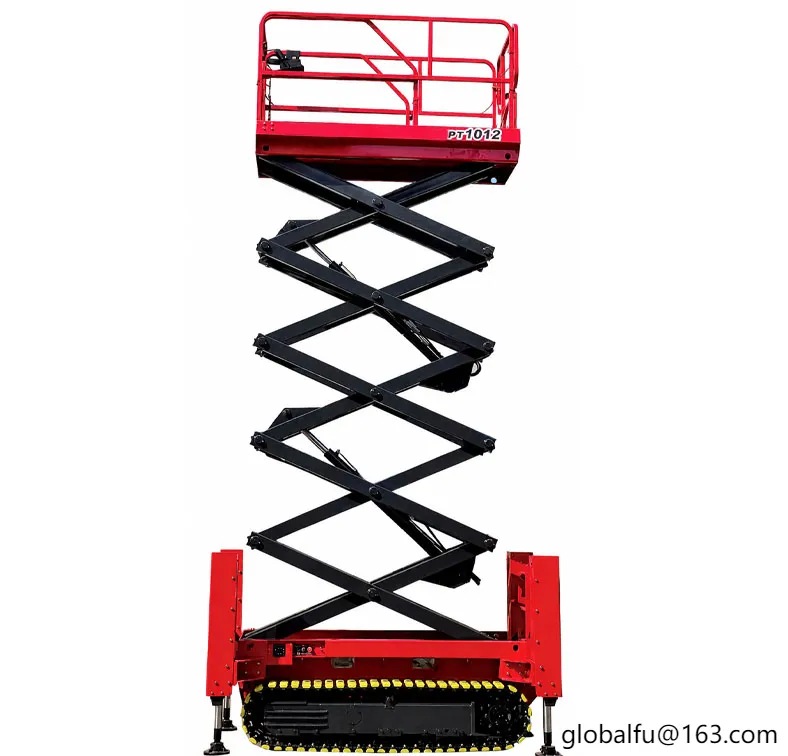

The PT1012LD Crawler Scissor Lift Platform is a self-propelled aerial work platform designed for professional lifting operations where stability and terrain adaptability are important. Equipped with a crawler track drive system, hydraulic lifting structure, and electric power configuration, this crawler scissor lift platform provides reliable vertical access for industrial maintenance, construction installation, equipment inspection, and other elevated working applications. With a maximum working height of 11.8m, maximum platform height of 9.8m, and safe working load of 320kg, the PT1012LD offers a practical solution for buyers requiring a stable tracked aerial work platform for demanding working environments.
320kg
113kg
2300 × 1150mm
900mm
48V / 4.5kW
48V / 4kW
8 × 6V / 200Ah
Get Latest Price
Download PDF Catalog
| Item | Specification |
| Model | PT1012LD |
| Product Name | Crawler Scissor Lift Platform |
| Drive Type | Self-propelled Hydraulic Drive |
| Maximum Working Height | 11.8m |
| Maximum Platform Height | 9.8m |
| Safe Working Load | 320kg |
| Extend Platform Safety Workload | 113kg |
| Work Platform Size | 2300 × 1150mm |
| Overall Dimensions (Guardrail Unfolded) | 2.77 × 1.55 × 2.59m |
| Overall Dimensions (Guardrail Folded) | 2.77 × 1.55 × 1.98m |
| Table Extension Size | 900mm |
| Minimum Ground Clearance | Not provided |
| Hoisting Motor | 48V / 4.5kW |
| Walking Motor | 48V / 4kW |
| Machine Operating Speed (Collapsed) | 3.5km/h |
| Machine Operating Speed (Lifting) | 0km/h |
| Rising/Falling Speed | 3–5m/min |
| Standard Battery | 8 × 6V / 200Ah |
| Charger | 48V / 40A |
| Maximum Climb Capability | 30% |
| Maximum Allowable Working Angle | 1.5° / 3° |
| Total Weight | 3550kg |
The PT1012LD is equipped with a crawler track drive system that provides improved stability and traction compared with conventional wheeled lifting platforms.
Key benefits:
Better contact with uneven surfaces
Enhanced movement capability on challenging job sites
Stable operation during aerial lifting tasks
Suitable for outdoor construction and industrial environments
The hydraulic scissor lifting structure provides smooth and reliable vertical movement.
The system integrates:
Hydraulic cylinder
Hydraulic valve block
Motor pump system
Anti-wear hydraulic oil
This configuration helps maintain stable lifting performance during repeated aerial operations.
The PT1012LD features a spacious working platform with an extension function.
Platform configuration:
Platform size: 2300 × 1150mm
Extension size: 900mm
Extend platform safety workload: 113kg
The extendable platform provides additional working space for installation, inspection, and maintenance applications.
The PT1012LD uses an electric drive configuration designed for professional aerial work applications.
Power system includes:
Hoisting motor: 48V / 4.5kW
Walking motor: 48V / 4kW
Battery: 8 × 6V / 200Ah
Charger: 48V / 40A
The electric system supports efficient machine operation and convenient daily use.
The PT1012LD integrates multiple safety systems to support safer aerial operations.
Main safety features include:
Automatic pit protection system
Emergency descent system
Platform self-locking door
Oil pipe explosion-proof system
Tilt protection system
Automatic braking system
Fault diagnosis system
Emergency pause system
These configurations help operators perform lifting tasks with improved control and operational safety.
