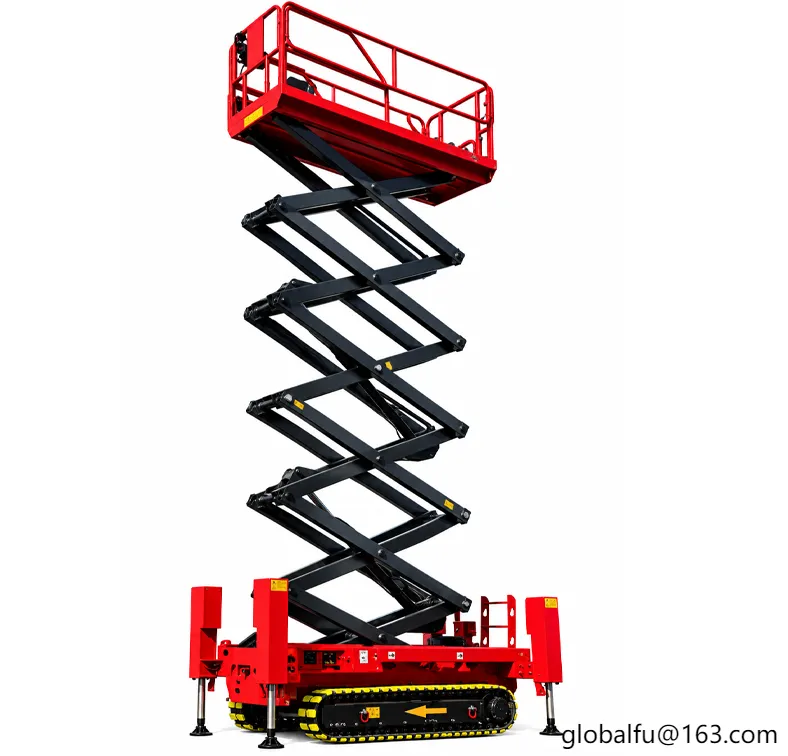

The PT1416LD Crawler Scissor Lift Platform is a self-propelled aerial work platform designed for high-level outdoor operations requiring strong terrain adaptability and stable lifting performance. Equipped with a crawler track drive system, hydraulic scissor lifting structure, and electric power system, the PT1416LD provides reliable access solutions for construction sites, industrial maintenance, equipment installation, and elevated repair applications. With a maximum working height of 15.8m, maximum platform height of 13.8m, and 230kg safe working load, this crawler scissor lift platform is designed for professional users who need higher reach capability and improved mobility on uneven job sites.
230kg
113kg
2.7 × 1.15 × 1.1m
0.9m
Self-Propelled Crawler Track
48V / 4.5kW
Get Latest Price
Download PDF Catalog
| Item | Specification |
| Model | PT1416LD |
| Drive Type | Self-propelled hydraulic drive |
| Product Type | Crawler Scissor Lift Platform |
| Maximum Working Height | 15.8m |
| Maximum Platform Height | 13.8m |
| Safe Working Load | 230kg |
| Extended Platform Safety Workload | 113kg |
| Working Platform Size | 2.7 × 1.15 × 1.1m |
| Overall Dimensions (Unfolded Guardrail) | 3.17 × 1.55 × 3.02m |
| Overall Dimensions (Folded Guardrail) | 3.17 × 1.55 × 2.42m |
| Platform Extension Size | 0.9m |
| Hoisting Motor | 48V / 4.5kW |
| Walking Motor | 48V / 4kW |
| Travel Speed (Retracted) | 3.5km/h |
| Lifting Speed | 3–5m/min |
| Standard Battery | 8 × 6V / 240Ah |
| Charger | 48V / 40A |
| Maximum Gradeability | 30% |
| Maximum Allowable Working Angle | 1.5° / 3° |
| Total Weight | 4550kg |
The crawler walking system provides improved stability and terrain adaptability compared with conventional wheeled platforms.
Advantages:
Lower ground pressure
Better traction on uneven surfaces
Suitable for outdoor construction environments
Improved mobility on rough ground
Maximum climbing capability up to 30%
The crawler design allows the machine to work effectively in challenging site conditions.
The PT1416LD uses a hydraulic scissor lifting system designed for smooth and stable vertical movement.
Key components include:
Hydraulic cylinder
Hydraulic valve block
Hydraulic motor pump
High-strength scissor arms
The structure supports reliable lifting performance and helps maintain platform stability during aerial operations.
The spacious working platform improves operator efficiency when handling tools and performing maintenance tasks.
Platform specifications:
Working platform size: 2.7 × 1.15 × 1.1m
Extension platform size: 0.9m
Extended platform safety workload: 113kg
The extension function provides additional working space and flexibility.
The PT1416LD is powered by an efficient electric system for lifting and traveling functions.
Power configuration:
Hoisting motor: 48V / 4.5kW
Walking motor: 48V / 4kW
Battery: 8 × 6V / 240Ah
Charger: 48V / 40A
Benefits:
Low operating noise
Efficient energy usage
Easy maintenance
Suitable for indoor and outdoor applications
The PT1416LD integrates multiple safety functions to improve operational reliability.
Safety configurations include:
Automatic pit protection system
Emergency descent system
Emergency pause system
Platform self-locking door
Oil pipe explosion-proof system
Tilt protection system
Automatic braking system
Fault diagnosis system
Buzzer and horn warning system
Charging protection system
These systems help operators perform elevated work with improved safety control.
