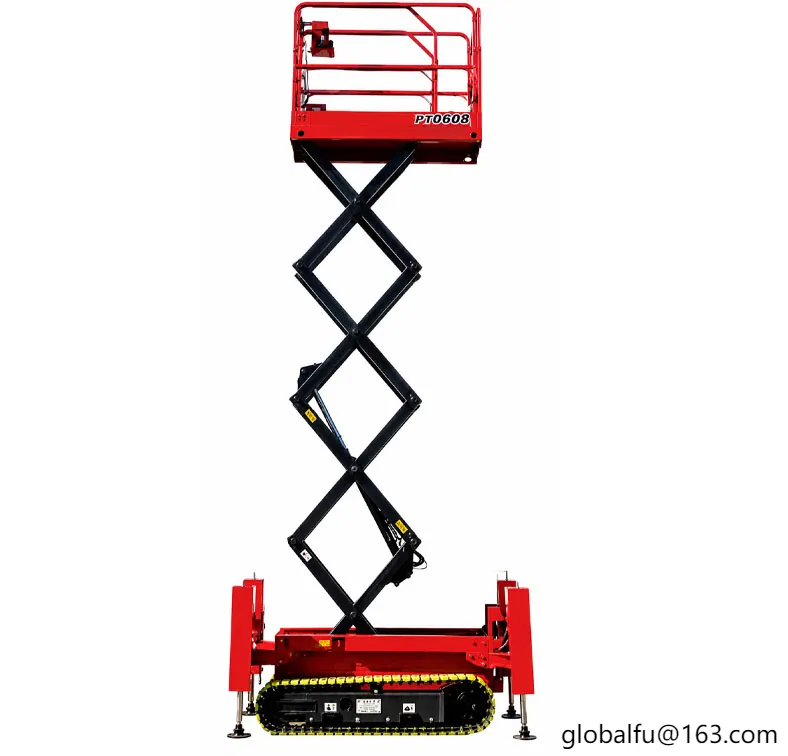

The PT0608LD Crawler Scissor Lift Platform is a self-propelled aerial work platform designed for applications requiring stable lifting performance and improved ground adaptability. Equipped with a crawler track walking system, hydraulic lifting structure, and electric drive configuration, this crawler scissor lift platform provides reliable vertical access for industrial maintenance, equipment installation, inspection, and construction-related operations. With a maximum working height of 7.8m, a maximum platform height of 5.8m, and a safe working load of 250kg, the PT0608LD offers a practical solution for professional users who require a compact but stable aerial access machine.
250kg
113kg
1680 × 750mm
900mm
48V / 4.5kW
48V / 4kW
8 × 6V / 200Ah
Get Latest Price
Download PDF Catalog
| Item | Specification |
| Model | PT0608LD |
| Product Type | Crawler Scissor Lift Platform |
| Drive Type | Self-propelled Hydraulic Drive |
| Maximum Working Height | 7.8m |
| Maximum Platform Height | 5.8m |
| Safe Working Load | 250kg |
| Extend Platform Safety Workload | 113kg |
| Working Platform Size | 1680 × 750mm |
| Overall Dimensions (Unfolded Guardrail) | 2.37 × 1.25 × 2.3m |
| Overall Dimensions (Folded Guardrail) | 2.37 × 1.25 × 1.9m |
| Platform Extension Size | 900mm |
| Hoisting Motor | 48V / 4.5kW |
| Walking Motor | 48V / 4kW |
| Machine Operating Speed (Collapsed) | 3.5km/h |
| Machine Operating Speed (Lifting) | 0km/h |
| Rising/Falling Speed | 3–5m/min |
| Standard Battery | 8 × 6V / 200Ah |
| Charger | 48V / 40A |
| Maximum Climb Capability | 30% |
| Maximum Allowable Angle for Work | 1.5° / 3° |
| Total Weight | 1930kg |

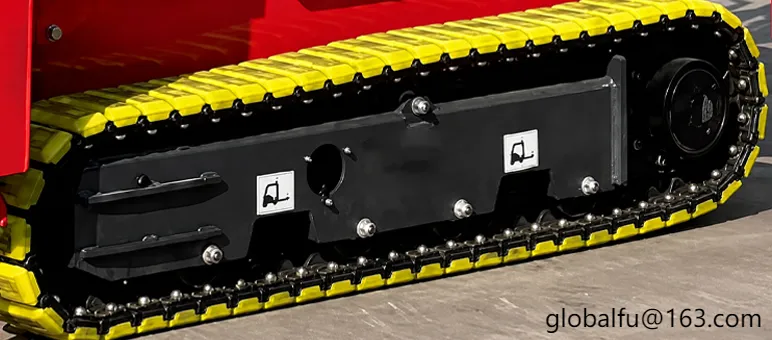

The crawler track system is designed for stable movement in environments where ground conditions may be uneven.
Component:
Crawler track: Lijin / Macona
The crawler structure supports better machine stability and mobility during jobsite operations.
The hydraulic system provides lifting power for the scissor structure.
Main components:
Hydraulic cylinder: Xingda
Hydraulic oil: Kunlun brand N32/N46 anti-wear
The hydraulic configuration supports smooth lifting operation and reliable performance.

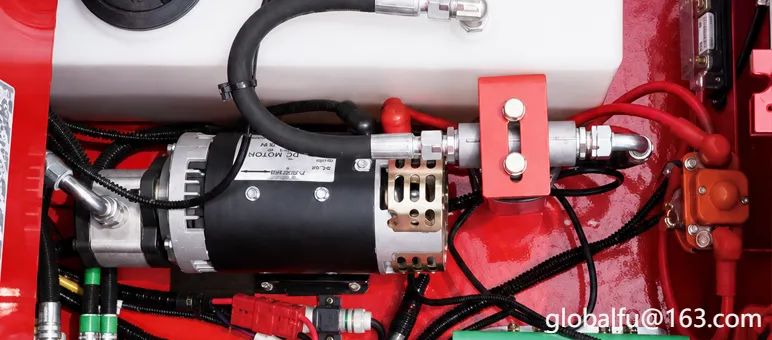

The PT0608LD uses an electric drive system for lifting and movement.
Configuration:
Hoisting motor: 48V / 4.5kW
Walking motor: 48V / 4kW
Control system: HanboTai / Kuanhui
The electric drive system provides convenient operation and supports efficient aerial work processes.
The machine structure is designed for professional working environments.
Structural components:
Safety guardrail: 35mm × 35mm square tube
Countertop: Anti-slip patterned board 3mm
Rod: Rectangular tube 120 × 80 × 5/4 (Q355B)
Base frame: Steel plate welding
These structural components support stable platform operation.
The PT0608LD includes multiple safety systems for professional operation.
Main safety functions:
Automatic pit protection system
Emergency descent system
Emergency pause system
Fault diagnosis system
Tilt protection system
Automatic braking system
Platform self-locking door
Charging protection system
Horn and buzzer
These systems help improve operator safety during lifting and movement operations.
