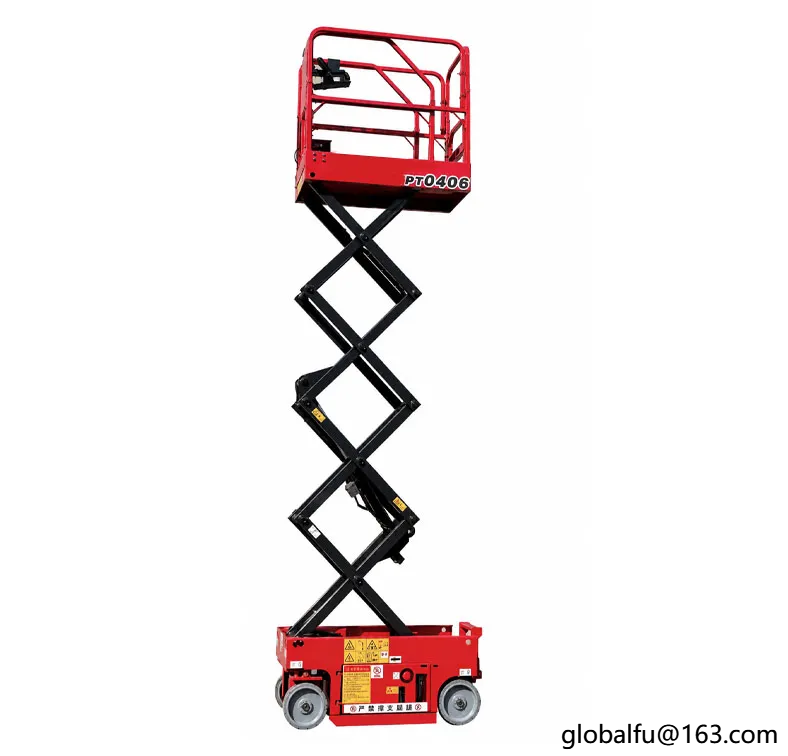

The PT0406 Self-propelled Scissor Lift Platform is a compact aerial work platform designed for maintenance, installation, and elevated working applications that require safe vertical access and flexible movement. With a maximum working height of 6.2m, a safe working load of 230kg, and a self-propelled drive system, this self propelled scissor lift platform helps operators complete aerial tasks more efficiently while reducing the need for frequent repositioning. Designed with a compact structure, electric drive system, and extendable platform function, the PT0406 is suitable for indoor and outdoor maintenance environments, equipment installation, facility inspection, and other applications requiring a reliable mobile lifting solution.
230kg
Self-propelled Electric Drive
600mm Extendable Platform
Lithium Battery / Lead Acid Battery
24V / 1.5kW
880kg
Get Latest Price
Download PDF Catalog
| Item | Specification |
| Model | PT0406 |
| Drive Type | Self-propelled Hydraulic Drive |
| Maximum Working Height | 6.2m |
| Maximum Platform Height | 4.5m |
| Safe Working Load | 230kg |
| Extend Platform Safety Workload | 90kg |
| Work Platform Size | 1290 × 700mm |
| Overall Dimensions (Unfolded Guardrail) | 1.46 × 0.76 × 2.05m |
| Overall Dimensions (Folded Guardrail) | 1.46 × 0.76 × 1.67m |
| Table Extension Size | 600mm |
| Minimum Ground Clearance | 83/16mm |
| Wheelbase | 1110mm |
| Turning Radius | 1.39m |
| Lifting / Driving Motor | 24V / 1.5kW |
| Machine Travel Speed (Retracted State) | 3.5km/h |
| Machine Travel Speed (Lifting State) | 0.8km/h |
| Battery Options | CATL Lithium Battery / Lead Acid Battery |
| Charger | 24V/30A |
| Maximum Climb Capability | 25% |
| Maximum Allowable Angle for Work | 1.5°/3° |
| Tire Size | Φ305×100mm |
| Total Weight | 880kg |
The self-propelled drive system allows the PT0406 to move independently during operation, improving work efficiency when operators need to reposition the machine between different working areas.
Compared with manually moved lifting equipment, the integrated drive system helps reduce handling effort and supports smoother operation on maintenance sites.

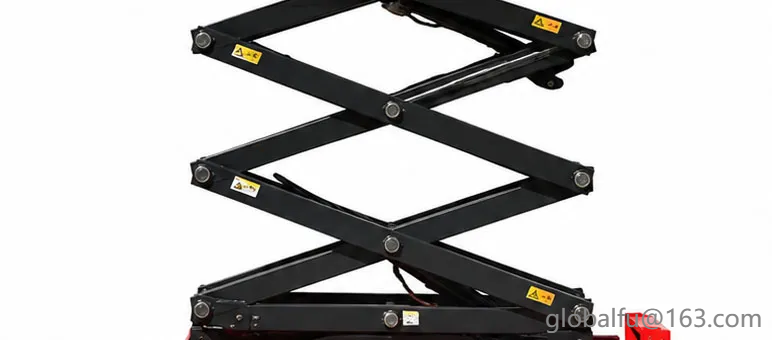

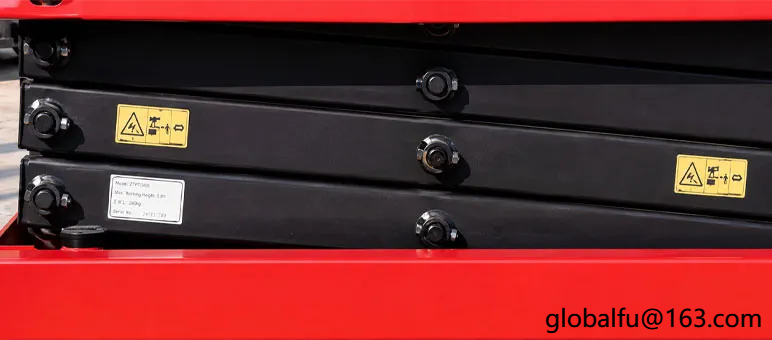

The scissor lifting mechanism provides stable vertical movement and supports a maximum platform height of 4.5m and maximum working height of 6.2m.
The lifting structure is designed for applications requiring controlled elevation, allowing operators to access higher working areas for maintenance and installation tasks.
The platform features a 600mm extension function, providing additional working space when required.
The scissor lift platform extension design helps operators reach wider working areas while maintaining convenient operation in different jobsite conditions.

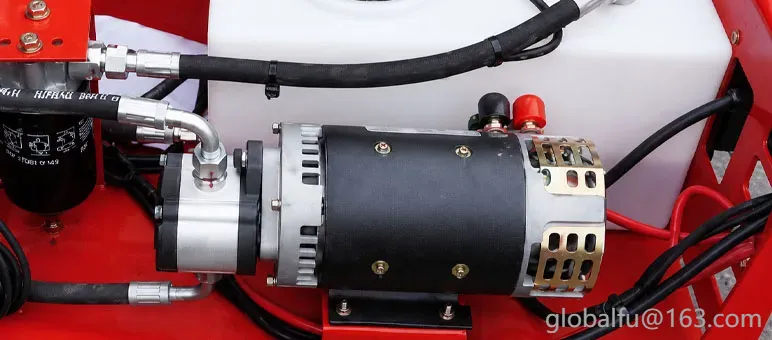

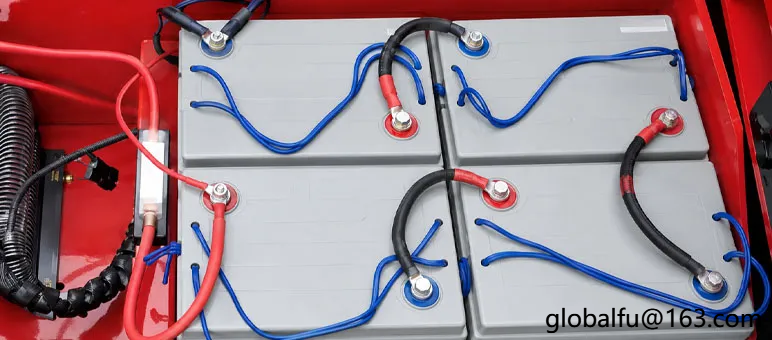

The PT0406 uses a 24V / 1.5kW lifting motor with lithium battery or lead-acid battery options.
The electric power system provides a practical solution for workplaces requiring low-emission operation and convenient equipment mobility.
The hydraulic lifting system supports smooth platform elevation and stable operation.
As a compact hydraulic scissor lift, the PT0406 combines hydraulic lifting performance with self-propelled mobility to provide a flexible aerial access solution.
The machine is equipped with multiple control and safety-related configurations, including:
Proportional control system
Automatic braking system
Emergency descent system
Emergency stop button
Buzzer
Platform self-locking door
Fault diagnosis system
These functions help operators maintain safer and more controlled working procedures.
