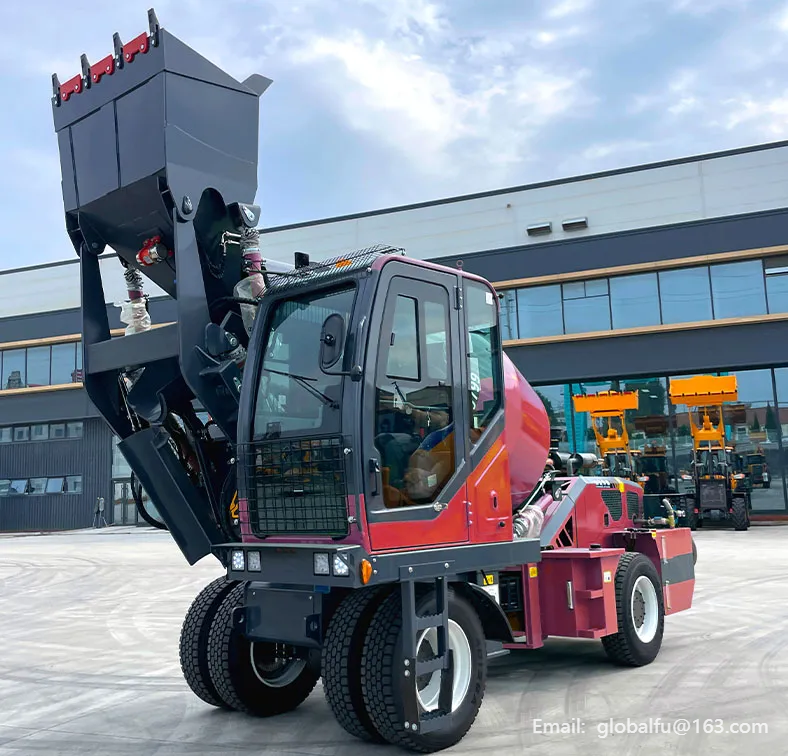

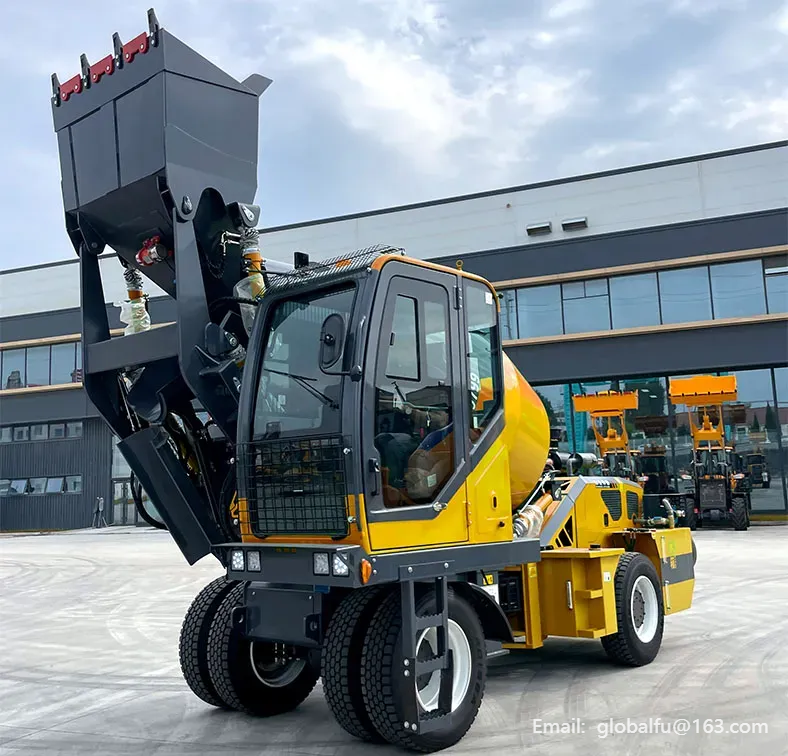

The 4.0 CBM Self-Loading Concrete Mixer is a high-capacity onsite concrete mixer machine designed for construction projects that need integrated material loading, water supply, concrete mixing, site movement, and unloading in one machine. With a 4.0m³ concrete yield per batch, 6000L mixing drum geometrical capacity, Yuchai 4108 turbocharged diesel engine, torque converter drive form, ZL-315 power shift gearbox, and 780L water tank, this 4 cubic meter self loading concrete mixer is suitable for road construction, building projects, municipal engineering, bridge and culvert work, rural infrastructure, and remote jobsite concrete supply. For contractors and equipment dealers looking for a self loading concrete mixer for sale, this model provides stronger batch output than smaller 1.2CBM and 2CBM models while keeping the jobsite flexibility of an integrated self-loading concrete mixer truck.
4.0 m³ / batch
91 kW
Torque converter drive with ZL-315 power shift gearbox, 4 forward and 4 reverse gears
780L water
Get Latest Price
Download PDF Catalog
| Category | Item | Specification |
| Vehicle Parameters | Overall Dimensions (L × W × H) | 7640 × 2870 × 4750 mm |
| Wheelbase | 2480 mm | |
| Curb Weight | 9000 kg | |
| Drive Form | Torque Converter | |
| Maximum Speed | 35 km/h | |
| Maximum Gradeability | 45° | |
| Minimum Turning Radius | 4800 mm | |
| Minimum Ground Clearance | 330 mm | |
| Diesel Engine | Model | Yuchai 4108 Turbo-Charged |
| Rated Power | 91 kW | |
| Gearbox | Model | ZL-315 Power Shift Gearbox |
| Gearshift | 4 Forward, 4 Reverse | |
| Conventional Parameters | Equipment Model | JBC-40A |
| Service Refill Capacities | Fuel Tank | 230 L |
| Total Hydraulic System Capacity | 170 L | |
| Oil | 16 L | |
| Parameters of Hydraulic System | Reducer | KY07-5-J |
| Pump | 40-63 | |
| Motor | HYTEK | |
| Water Supply System Parameters | Tank Volume | 780 L |
| Water Supply | Time Relay | |
| Mixing and Unloading | Mixing Drum Geometrical Capacity | 6000 L |
| Drum Rotation Speed | 18–21 rpm | |
| Concrete Yield | 4.0 m³ / Batch | |
| Drum Slewing System | Heavy-duty saddle system, hydraulically rotated at 290° and automatically locked by hydraulic brake | |
| Drum Drive System | Gear pump and open-circuit hydraulic motor drive | |
| Drum Lifting System | Two double-acting jacks lift the drum to horizontal position | |
| Unloading Chute | Manually adjustable chute, rotatable 90° | |
| Chute Extension | Removable chute extensions provided as standard |
This model is equipped with a Yunnei 490 turbocharged diesel engine rated at 55kW. The turbocharged diesel power system supports stronger working performance for onsite concrete mixing, jobsite movement, and regular construction operation.
Diesel power is practical for outdoor construction, rural road projects, remote jobsites, and areas where stable electric power may not always be available.

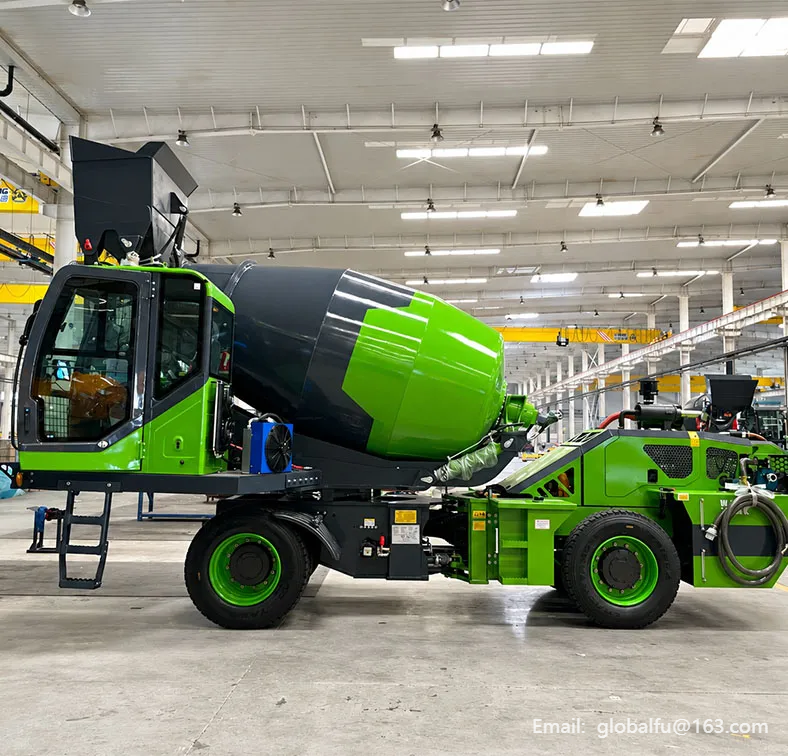

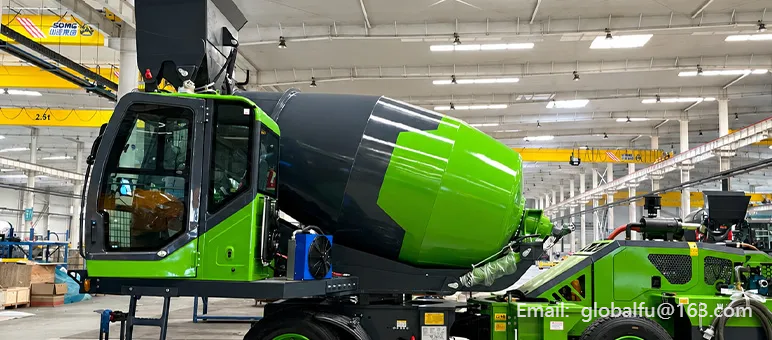

The mixer uses a double-cone mixing drum with double-spiral mixing screws and a convex bottom. The drum has a 6000L geometrical capacity and provides approximately 4.0m³ concrete yield per batch.
With a drum rotation speed of 18–21 rpm, the machine supports onsite concrete preparation for road work, building construction, bridge and culvert projects, municipal engineering, and medium-to-large jobsite concrete applications.

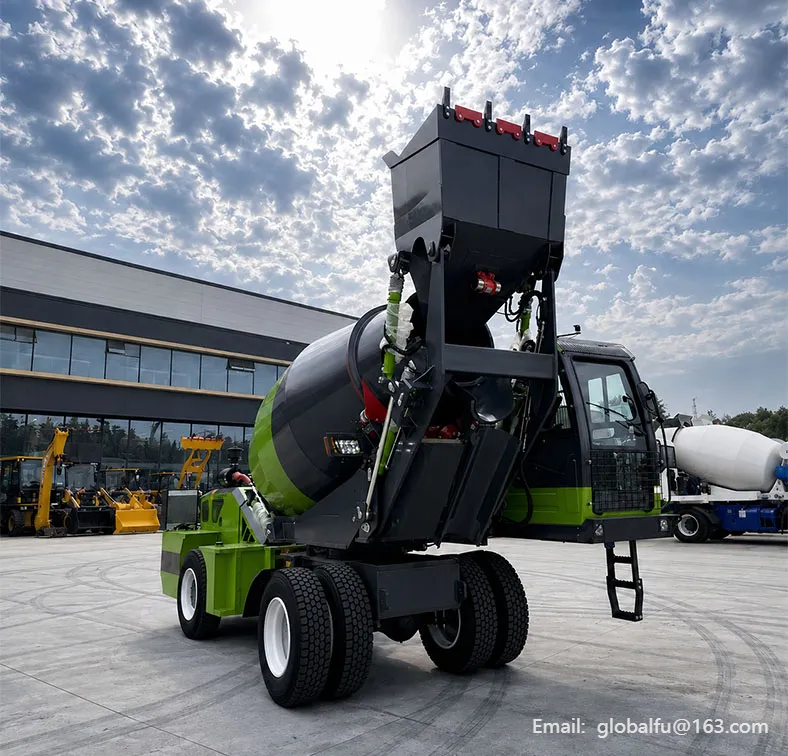

The self-loading structure helps collect and feed sand, gravel, cement, and other raw materials into the mixing system. This reduces dependence on separate loading equipment for many construction tasks.
For contractors working on scattered jobsites, rural roads, or remote project areas, the integrated loading and mixing design helps simplify concrete preparation and improve jobsite workflow.

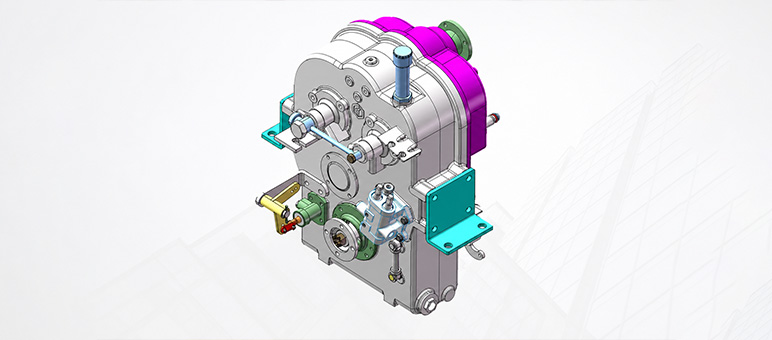

The machine uses a torque converter drive form and ZL-265 power shift gearbox with 4 forward and 4 reverse gears. This configuration supports flexible movement, positioning, and repeated operation during loading and unloading.
The torque converter helps provide smoother power transmission under construction working conditions, while the multiple gear options allow the operator to adapt to different site movement needs.
The hydraulic system includes a KY07-2-0 reducer, 50/32 dual gear pump, and cycloid 125 motor. These components support key working actions related to mixing, loading, movement, and unloading.

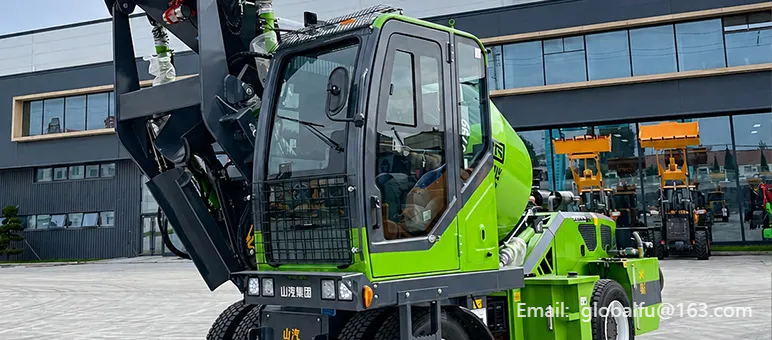

The machine also uses a compact four-wheel chassis with 280 mm ground clearance and a visible enclosed cab structure. These features support better jobsite mobility, driver visibility, and operating convenience on small and medium construction sites.

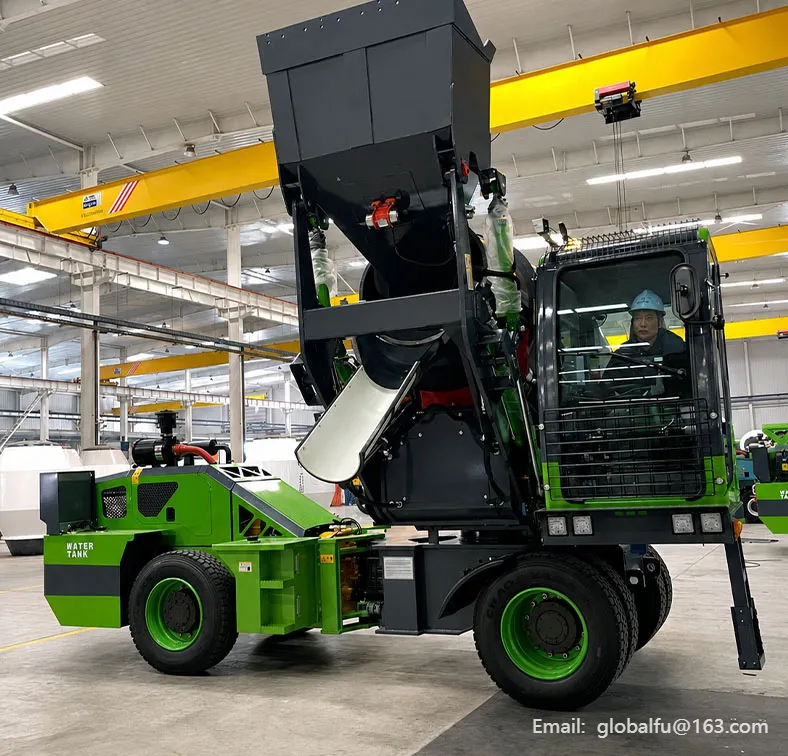

The 1.2CBM model is equipped with a 400L water tank and a time relay water supply system. This helps support water filling during onsite concrete mixing and improves operation convenience compared with manual water handling.
For concrete preparation, a practical water supply system helps operators manage the mixing process more efficiently, especially when working on road projects, rural construction sites, and remote jobsites.
Engineered for adaptability, our self-loading concrete mixers deliver high-quality concrete exactly where you need it, overcoming the limitations of traditional batching plants
