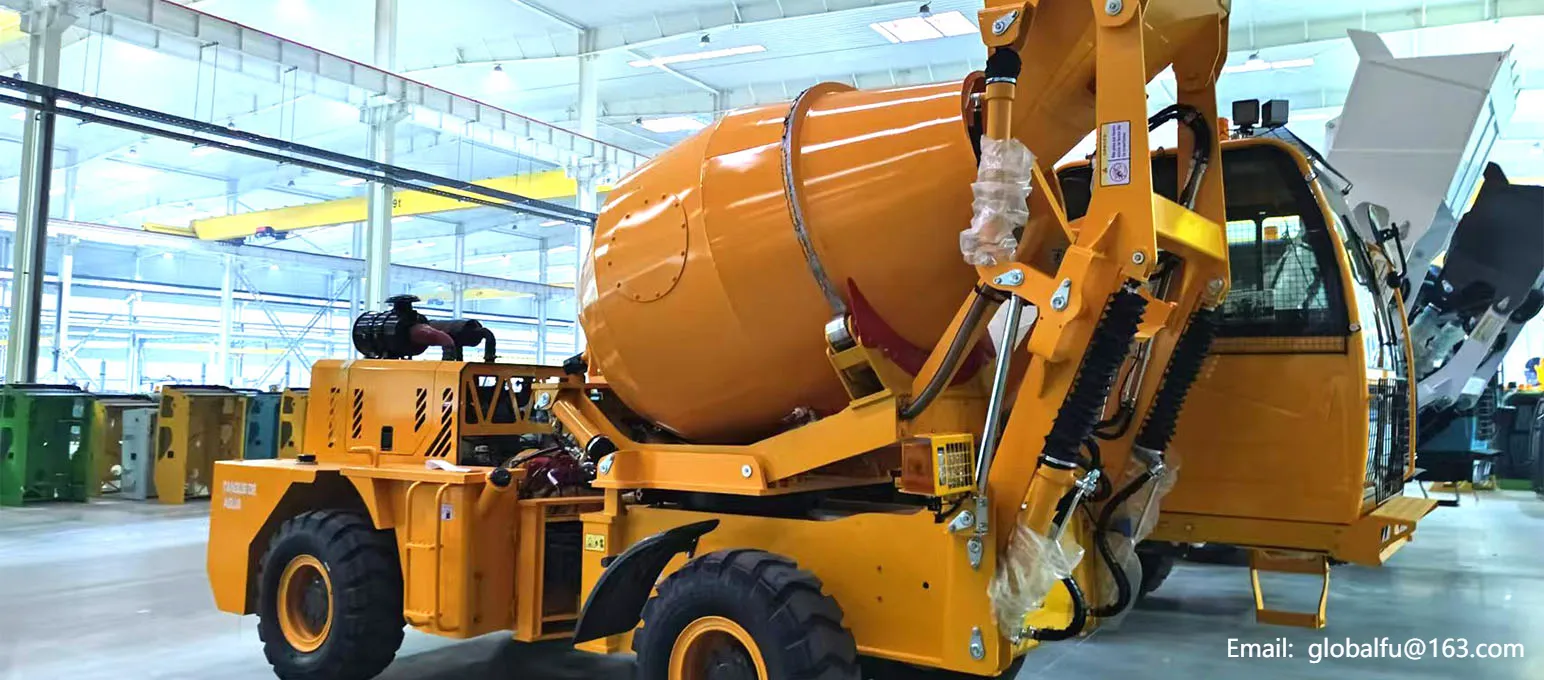

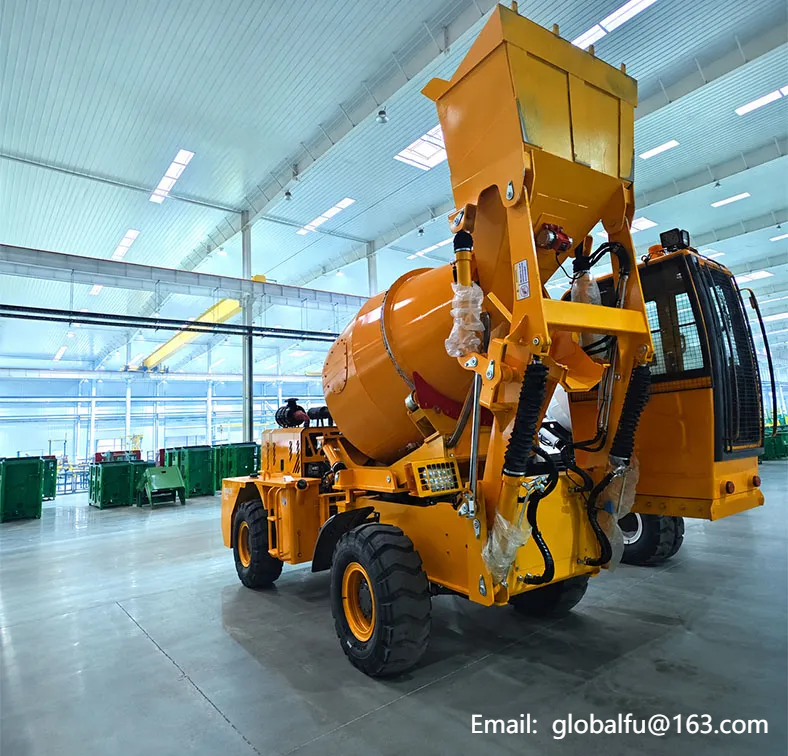

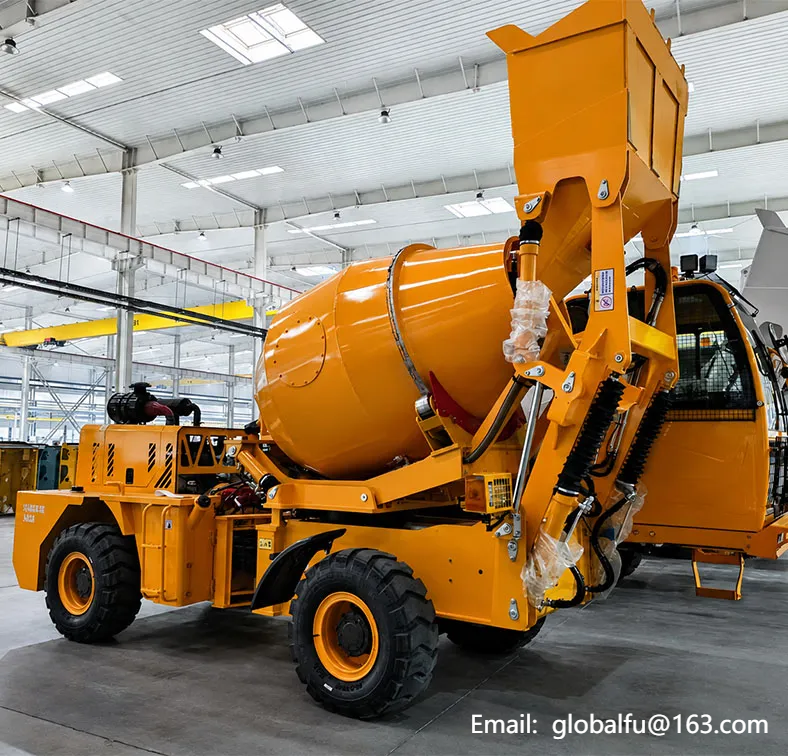

The 1.8CBM Self-Loading Concrete Mixer Truck is designed for onsite concrete mixing, loading, transportation, and discharge in building construction, road projects, rural construction, municipal works, bridge construction, and remote jobsite applications. This machine combines material loading, concrete mixing, water supply, movement, and discharge functions in one compact construction vehicle. With a JBC-18 model configuration, Yuchai/Yunnei 4102 turbocharged diesel engine, 77.3kW rated power, ZL-265 power shift gearbox, automatic metering water supply, electronic water suction pump, and manganese steel mixing drum, it is suitable for small and medium concrete projects that require flexible onsite operation. For buyers looking for a practical 1.8m3 self loading concrete mixer, concrete mixer machine, or self loading concrete mixer for sale, this model provides a useful balance of capacity, mobility, and jobsite efficiency.
7300 × 2650 × 3750mm
2680L
6000kg
2560mm
Get Latest Price
Download PDF Catalog
| Item | Specification |
| Product Name | 1.8m³ Self-Loading Concrete Mixer Truck |
| Model | JBC-18 |
| Overall Dimensions | 7300 × 2650 × 3750mm |
| Wheelbase | 2560mm |
| Curb Weight | 6000kg |
| Rated Drum Capacity | 2680L |
| Injection / Combustion System | Direct Injection, Re-entrant W-Type Combustion Chamber |
| Drive Form | Torque Converter |
| Cooling System | Vertical Inline, Water-Cooled, Four-Stroke |
| Maximum Speed | 30km/h |
| Gearbox Model | ZL-265 Power Shift Gearbox |
| Maximum Gradeability | 30° |
| Gear Position | 4 Forward + 4 Reverse |
| Engine Model | Yunnei / Yuchai 4102 Turbocharged Engine |
| Rated Power | 77.3kW |
| Fuel Type | Diesel |
| Emission Standard | China II Emission Standard |
Equipped with a high-performance 77.3KW Yuchai/Yunnei turbocharged diesel engine. It features secondary air filtration to ensure stable and continuous operation even in the dustiest construction environments
The machine adopts a pure excavator-style cab and is equipped with a car seat for operator comfort.
The configuration also includes a driving camera, helping the operator observe working conditions more conveniently during movement, loading, and jobsite operation. This is useful when the machine works around materials, workers, and narrow construction areas.
The 1.8m³ output drum is forged from high-strength manganese steel, significantly extending its service life. It is supported by two robust rollers to ensure maximum stability during transport and rotation.
The configuration includes a wheel-side reduction axle with dual wheel-side dual brakes, supporting jobsite mobility and braking reliability.
The machine also uses Chaoyang tires, a bucket vibrator, and Ruili brake master pump, slave pump, and handbrake pump. These components support material loading, braking control, and movement in construction-site working conditions. The machine also includes secondary air treatment filtration, helping support engine intake protection in dusty working environments.

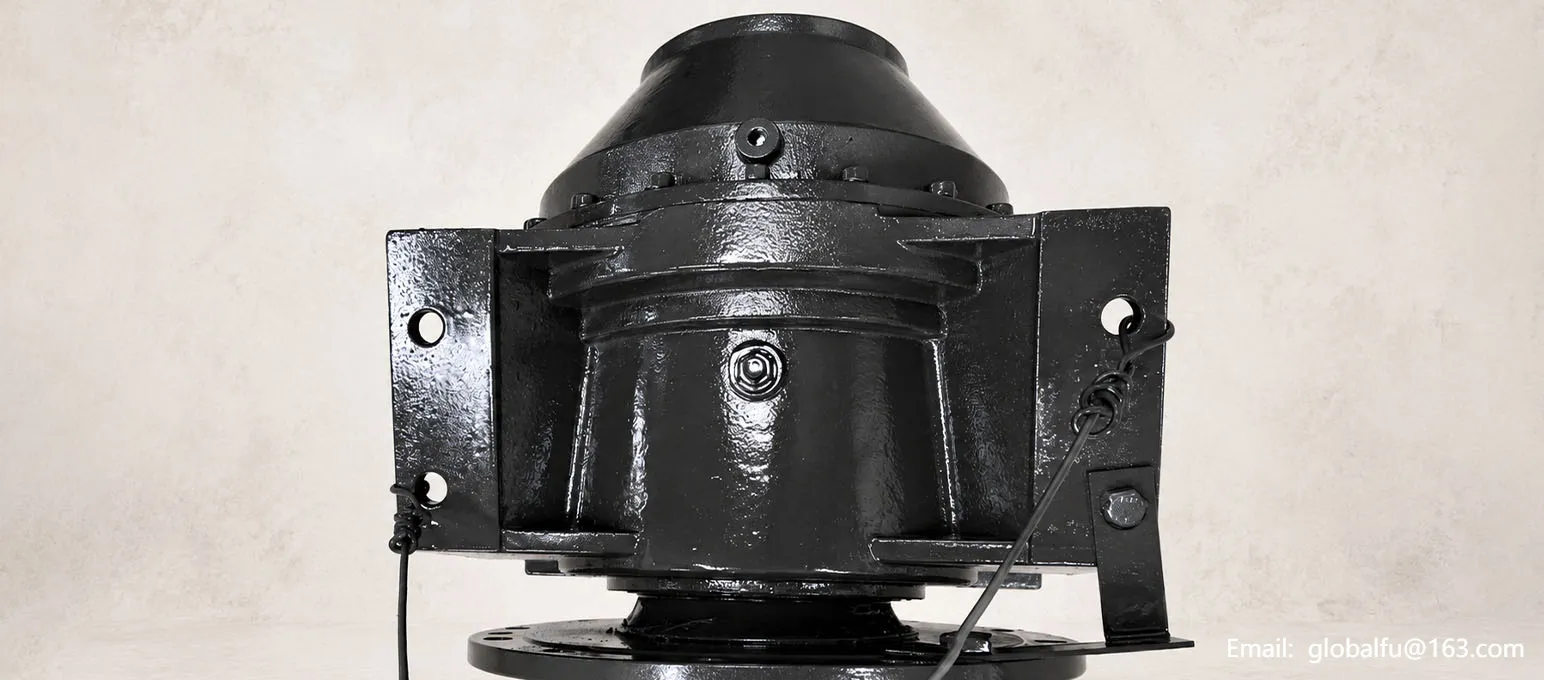

The machine is configured with a cycloidal motor and Keyi reducer, supporting the transmission and mixing-related working systems.
The overall configuration is designed for practical self-loading mixer operation, including loading, water supply, mixing, movement, and discharge support. Final hydraulic system details should be confirmed according to the actual production configuration before ordering.
Engineered for adaptability, our self-loading concrete mixers deliver high-quality concrete exactly where you need it, overcoming the limitations of traditional batching plants
