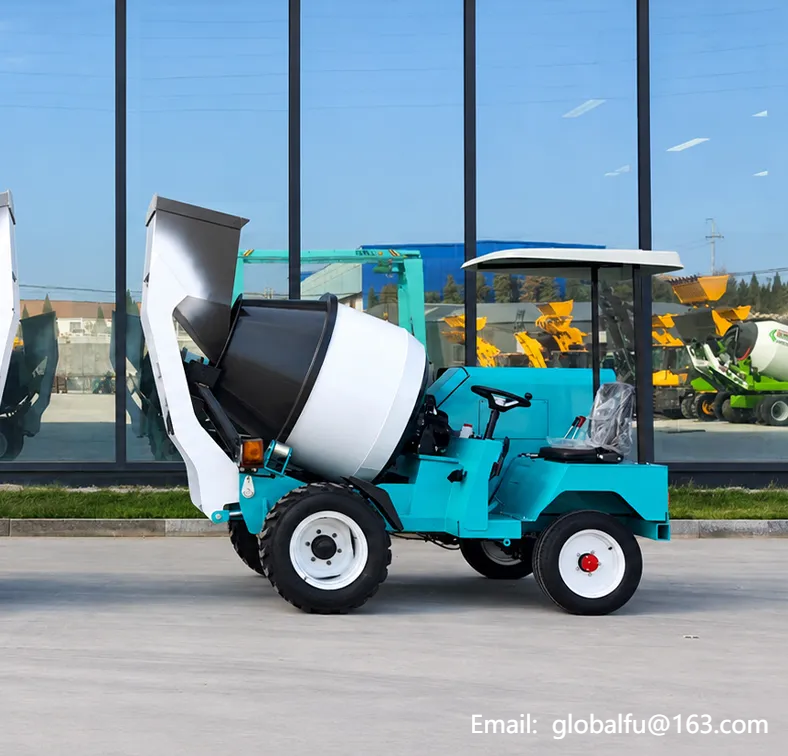

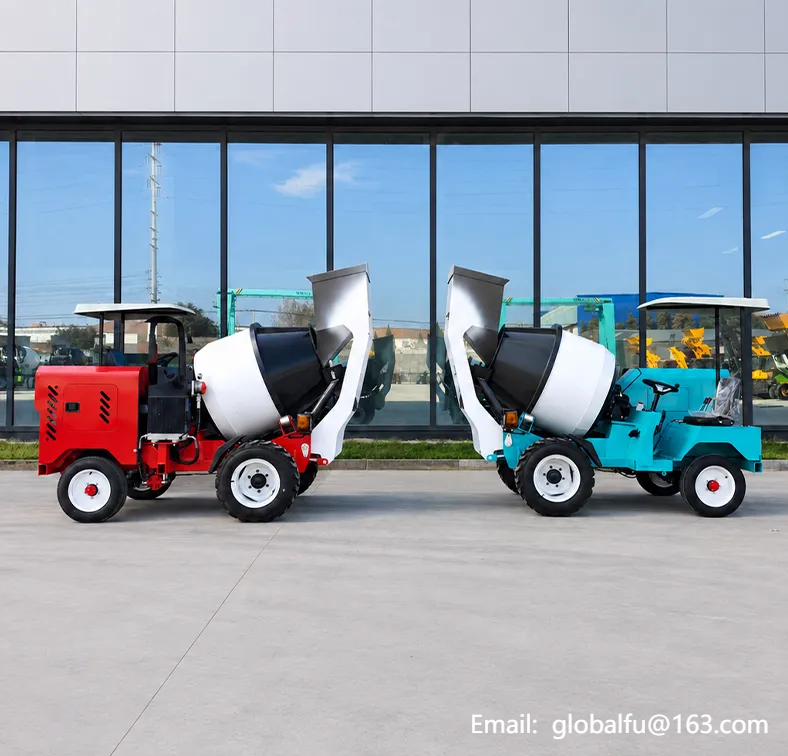

The 0.5CBM Self-Loading Concrete Mixer is a compact concrete mixing machine designed for small construction sites, rural building projects, road maintenance, and remote jobsites where flexible onsite concrete production is needed. With a 0.5m³ concrete yield per batch, 700L mixing drum geometrical capacity, 16kW diesel engine, manual gearbox, and hydraulic drum slewing system, this small self loading concrete mixer helps complete loading, mixing, transportation, and unloading in one machine. It is suitable for contractors who need a practical concrete mixer machine without relying on separate loaders, electric mixers, or large concrete mixer trucks for every small job. As a construction machinery supplier from China, Kaishun provides compact and practical concrete mixing equipment for global buyers, contractors, dealers, and project users looking for reliable jobsite machinery.
0.5 m³ / batch
Single-cylinder diesel engine
4200 × 1600 × 2350 mm
16 kW
Get Latest Price
Download PDF Catalog
| Category | Item | Specification |

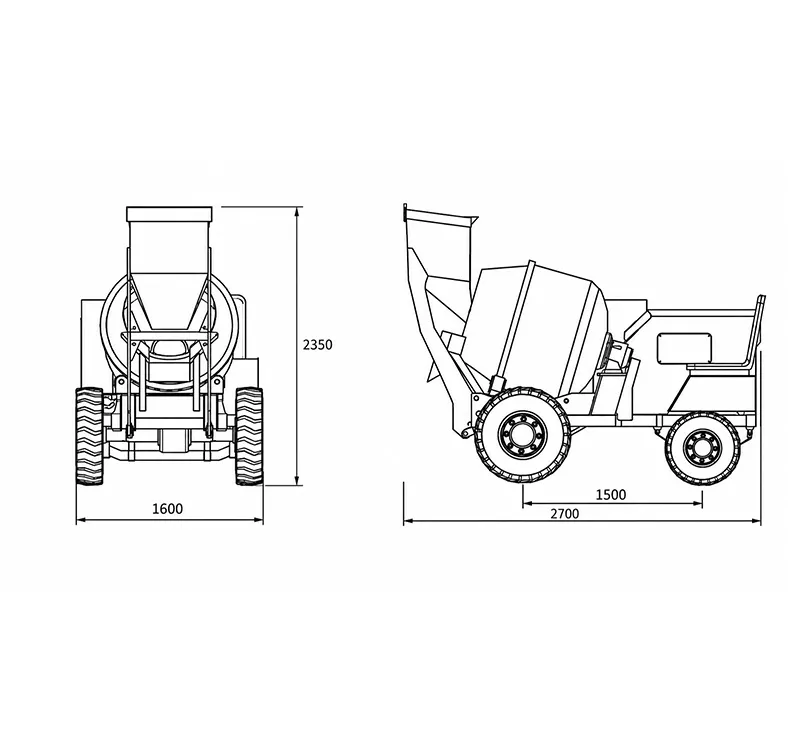

| Vehicle Parameters | Overall Dimensions (L × W × H) | 4200 × 1600 × 2350 mm |
| Wheelbase | 1500 mm | |
| Curb Weight | 1860 kg | |
| Drive Form | Belt Drive | |
| Maximum Speed | 20 km/h | |
| Maximum Gradeability | 30° | |
| Minimum Turning Radius | 4000 mm | |
| Minimum Ground Clearance | 150 mm | |
| Diesel Engine | Model | Changfa Single-Cylinder Diesel Engine |
| Rated Power | 16 kW | |
| Gearbox | Model | Manual Gearbox |
| Gear Position | 3 Forward, 1 Reverse | |
| Conventional Parameters | Equipment Model | JBC-04 |
| Service Refill Capacities | Fuel Tank | 18 L |
| Hydraulic System Total Capacity | 20 L | |
| Engine Oil | 3.5 L | |
| Hydraulic System Parameters | Reducer | F-K100 |
| Double Pump | 50 / 32 | |
| Motor | Cycloidal 125 |
The machine is equipped with a single-cylinder diesel engine with a rated power of 16kW. This engine configuration is suitable for small jobsite concrete mixing, short-distance site movement, and regular construction use.
Diesel power helps the mixer work in areas where electric power supply may not be convenient, making it a practical choice for rural construction, small infrastructure work, and remote project locations.

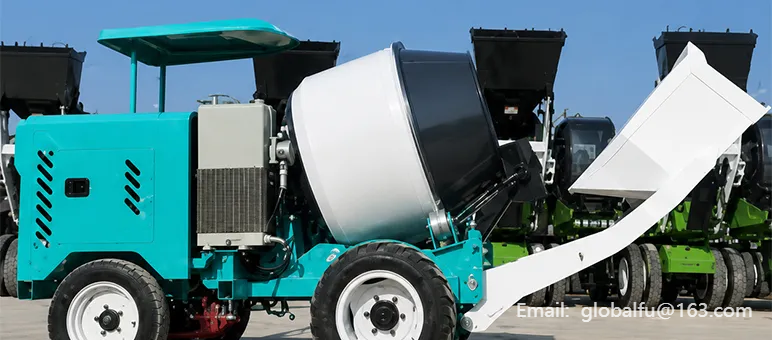

The mixing drum has a 700L geometrical capacity and delivers approximately 0.5m³ concrete yield per batch. The drum rotation speed is 18–21 rpm, supporting stable mixing performance for small concrete batches.
The double-cone mixing drum is designed for mixing and unloading operations. It supports onsite concrete mixing and transportation, helping contractors prepare concrete closer to the actual working area.
Water control is important for concrete mixing quality. Depending on configuration, the machine can be equipped with a hydraulic external suction water pump and automatic metered water filling system.
The external suction pump helps the mixer draw water directly from a nearby water source, while the metering system helps operators control water volume more accurately. This can improve batching consistency and reduce manual operation errors during onsite concrete preparation.

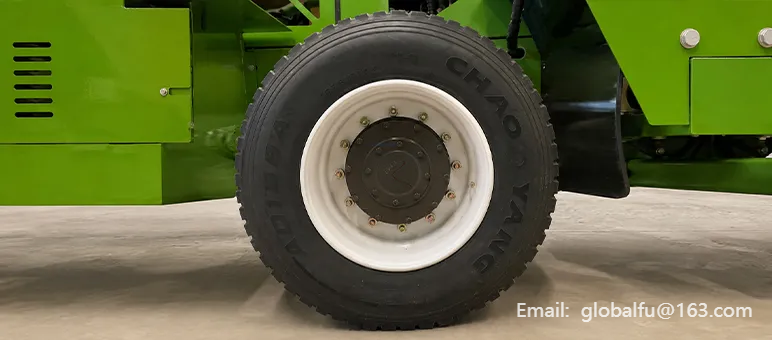

Self-loading concrete mixer trucks often work on rough roads, muddy sites, rural construction areas, and uneven ground. Durable tires, reinforced axle components, and reliable braking structures help support safer movement and better jobsite mobility.
For higher-capacity models, reinforced dual-brake reduction axles and heavy-duty drive components can be selected to support stronger carrying ability and more stable driving performance. Final axle and tire specifications should be confirmed according to the selected model.
Engineered for adaptability, our self-loading concrete mixers deliver high-quality concrete exactly where you need it, overcoming the limitations of traditional batching plants
