The 0.8CBM Self-Loading Concrete Mixer is a compact concrete mixer machine designed for small and medium construction projects, rural road work, building repair, foundation work, and remote jobsites that require flexible onsite concrete mixing. With a 0.8m³ concrete yield per batch, 1450L mixing drum geometrical capacity, Xichai 490 diesel engine, torque converter drive form, ZL-265 gearbox, and 180L water tank, this small self loading concrete mixer combines material loading, mixing, site movement, water supply, and concrete discharge in one practical machine. For contractors, builders, and equipment dealers looking for a compact self loading concrete mixer for sale, this model offers a useful balance between small-machine flexibility and higher output than a 0.5CBM mixer.
0.8 m³ / batch
Xichai 490

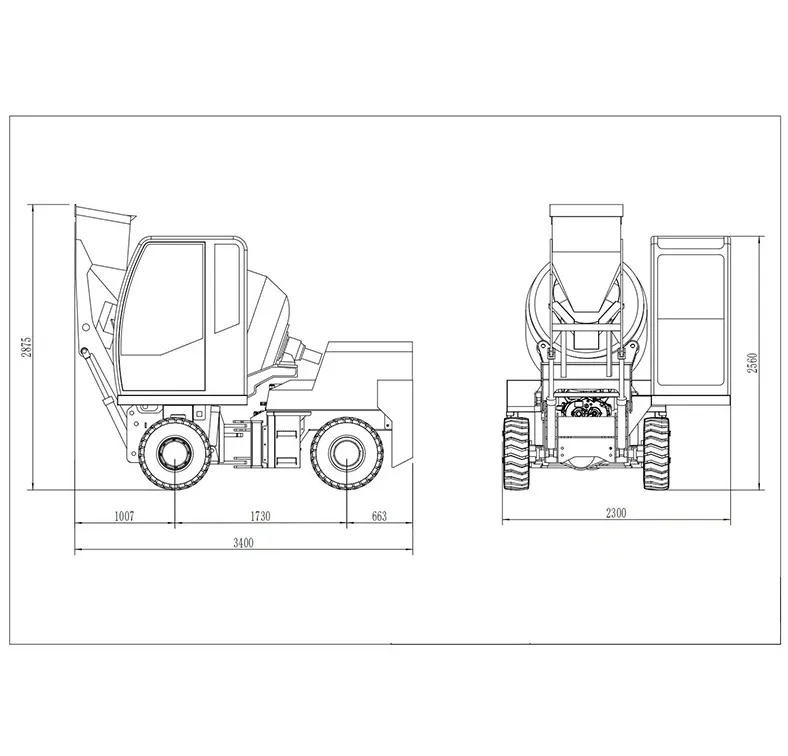

5100 × 2350 × 2900 mm
37 kW
Get Latest Price
Download PDF Catalog
| Category | Item | Specification |
| Vehicle Parameters | Overall Dimensions (L × W × H) | 5100 × 2350 × 2900 mm |
| Wheelbase | 1500 mm | |
| Curb Weight | 3700 kg | |
| Drive Form | Torque Converter | |
| Maximum Speed | 30 km/h | |
| Maximum Gradeability | 30° | |
| Minimum Turning Radius | 3750 mm | |
| Minimum Ground Clearance | 180 mm | |
| Diesel Engine | Model | Xichai 490 |
| Rated Power | 37 kW | |
| Gearbox | Model | ZL-265 |
| Gearshift | 4 Forward, 4 Reverse | |
| Service Refill Capacities | Fuel Tank | 62 L |
| Total Hydraulic System Capacity | 62 L | |
| Oil | 12 L | |
| Parameters of Hydraulic System | Reducer | K100 |
| Dual Gear Pump | CBFC 50/32 | |
| Hydraulic Motor | BM-125 | |
| Water Supply System Parameters | Tank Volume | 180 L |
| Water Supply | One Water Supply System | |
| Mixing and Unloading | Mixing Drum Structure | Double-cone mixing drum with double-spiral mixing screws and convex bottom |
| Mixing Drum Geometrical Capacity | 1450 L | |
| Drum Rotation Speed | 13 rpm | |
| Concrete Yield | 0.8 m³ / Batch |

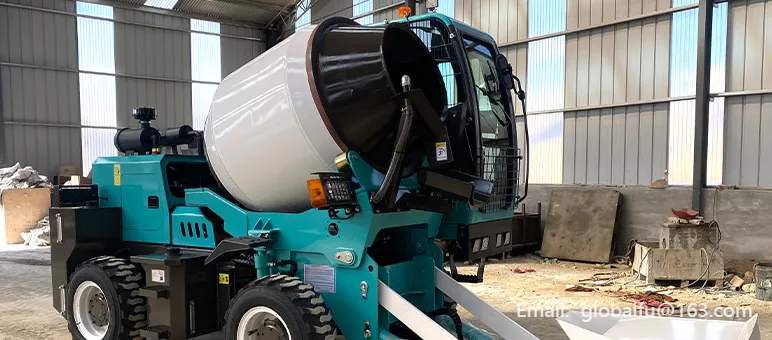

The machine uses a double-cone mixing drum with double-spiral mixing screws and a convex bottom. The mixing drum has a 1450L geometrical capacity and provides approximately 0.8m³ concrete yield per batch.
With a drum rotation speed of 13 rpm, the mixer supports stable small-batch concrete preparation for foundations, small buildings, road repair, farm construction, and other onsite concrete applications.
The mixing drum has a 700L geometrical capacity and delivers approximately 0.5m³ concrete yield per batch. The drum rotation speed is 18–21 rpm, supporting stable mixing performance for small concrete batches.
The double-cone mixing drum is designed for mixing and unloading operations. It supports onsite concrete mixing and transportation, helping contractors prepare concrete closer to the actual working area.

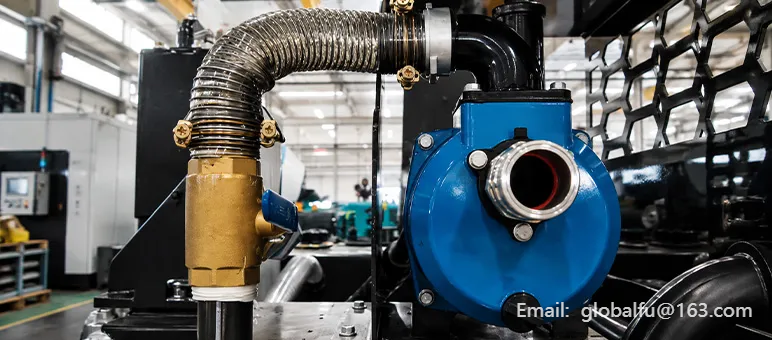

The 0.8CBM model is equipped with a 180L water tank and one water supply system. This helps support onsite water filling during concrete mixing and reduces the need for frequent external water handling.
For concrete work, more convenient water supply can help operators manage the mixing process more efficiently, especially on small jobsites and remote project areas.
The machine uses a torque converter drive form and ZL-265 gearbox with 4 forward and 4 reverse gears. This transmission configuration supports flexible movement and easier control during loading, positioning, and site transfer.
The torque converter helps provide smoother power transmission during jobsite operation, while the multiple gear options make the mixer more adaptable to different working conditions.
Engineered for adaptability, our self-loading concrete mixers deliver high-quality concrete exactly where you need it, overcoming the limitations of traditional batching plants
