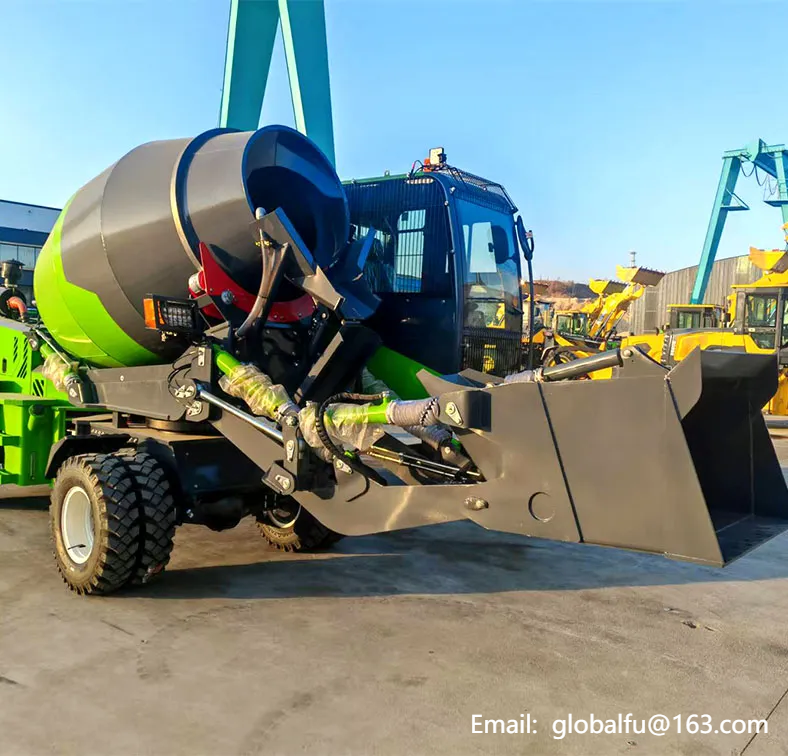

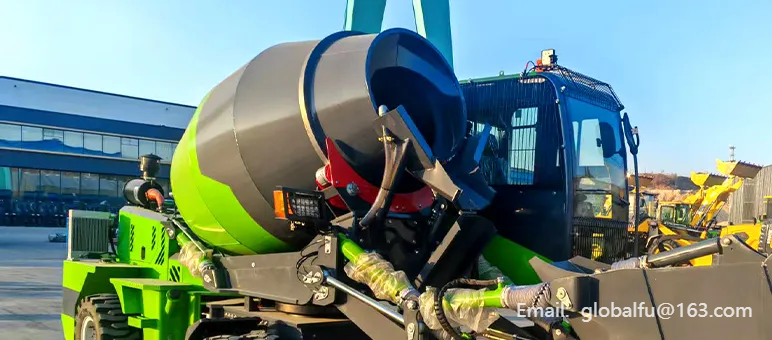

The 2CBM Self-Loading Concrete Mixer is a practical onsite concrete mixer machine designed for construction projects that need higher batch output, flexible site movement, and integrated concrete loading, mixing, transportation, and unloading. With a 2m³ concrete yield per batch, 3500L mixing drum geometrical capacity, Yuchai 4102 turbocharged diesel engine, torque converter drive form, ZL-265 power shift gearbox, 500L water tank, and hydraulic drum slewing system, this 2 cubic meter self loading concrete mixer is suitable for building construction, rural road work, infrastructure repair, bridge and culvert construction, and remote jobsites. For contractors and equipment dealers looking for a self loading concrete mixer for sale, this model offers a stronger configuration than smaller 0.8CBM and 1.2CBM mixers while keeping the convenience of an integrated self-loading concrete mixer truck.
2 m³ / Batch

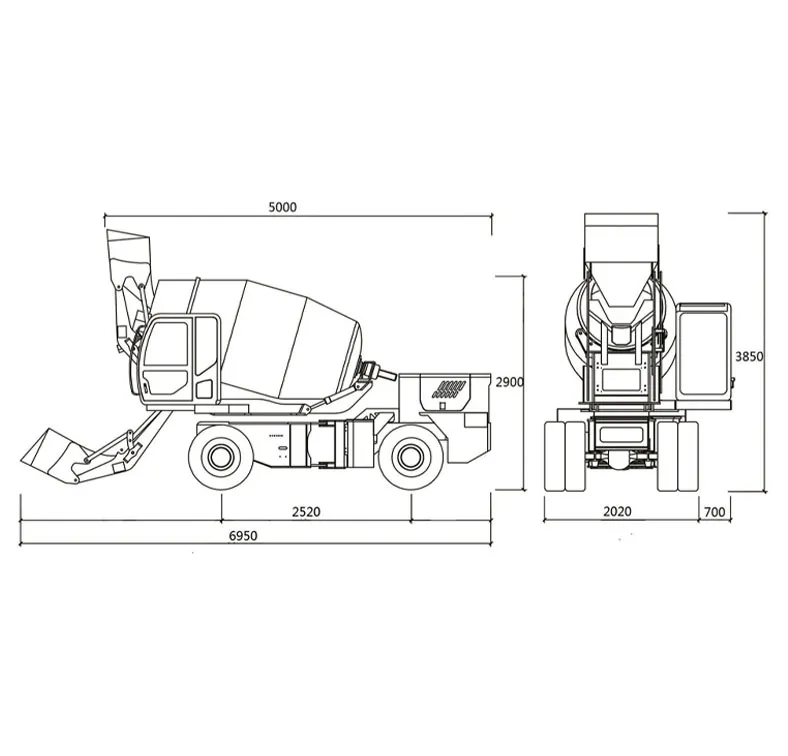

6950 × 2720 × 3850 mm
75kW Yuchai Engine
ZL-265 Power Shift Gearbox
Get Latest Price
Download PDF Catalog
| Category | Item | Specification |
| Vehicle Parameters | Overall Dimensions (L × W × H) | 6950 × 2720 × 3850 mm |
| Wheelbase | 2520 mm | |
| Curb Weight | 6300 kg | |
| Drive Form | Torque Converter | |
| Maximum Speed | 35 km/h | |
| Maximum Gradeability | 40° | |
| Minimum Turning Radius | 5300 mm | |
| Minimum Ground Clearance | 380 mm | |
| Diesel Engine | Model | YUCHAI 4102 Turbo-Charged |
| Rated Power | 75 kW | |
| Gearbox | Model | ZL-265 Power Shift Gearbox |
| Gearshift | 4 Forward, 4 Reverse | |
| Conventional Parameters | Equipment Model | JBC-20C |
| Service Refill Capacities | Fuel Tank | 75 L |
| Total Hydraulic System Capacity | 75 L | |
| Oil | 16 L | |
| Parameters of Hydraulic System | Reducer | HJ80-43 |
| Dual Gear Pump | 50 / 32 | |
| Hydraulic Motor | 125 | |
| Water Supply System Parameters | Tank Volume | 500 L |
| Water Supply | Time Relay | |
| Mixing and Unloading | Mixing Drum Geometrical Capacity | 3500 L |
| Drum Rotation Speed | 18–21 rpm | |
| Concrete Yield | 2 m³ / Batch | |
| Drum Slewing System | Heavy-duty saddle, hydraulically slewed at 270° with automatic hydraulic brake locking | |
| Drum Drive System | Gear pump and cycloidal hydraulic motor, open circuit control | |
| Drum Lifting System | Two double-acting jacks raise the drum to horizontal position | |
| Unloading Chute | Manually adjustable, rotates 90° | |
| Standard Chute Extensions | Two removable chute extensions provided as standard |

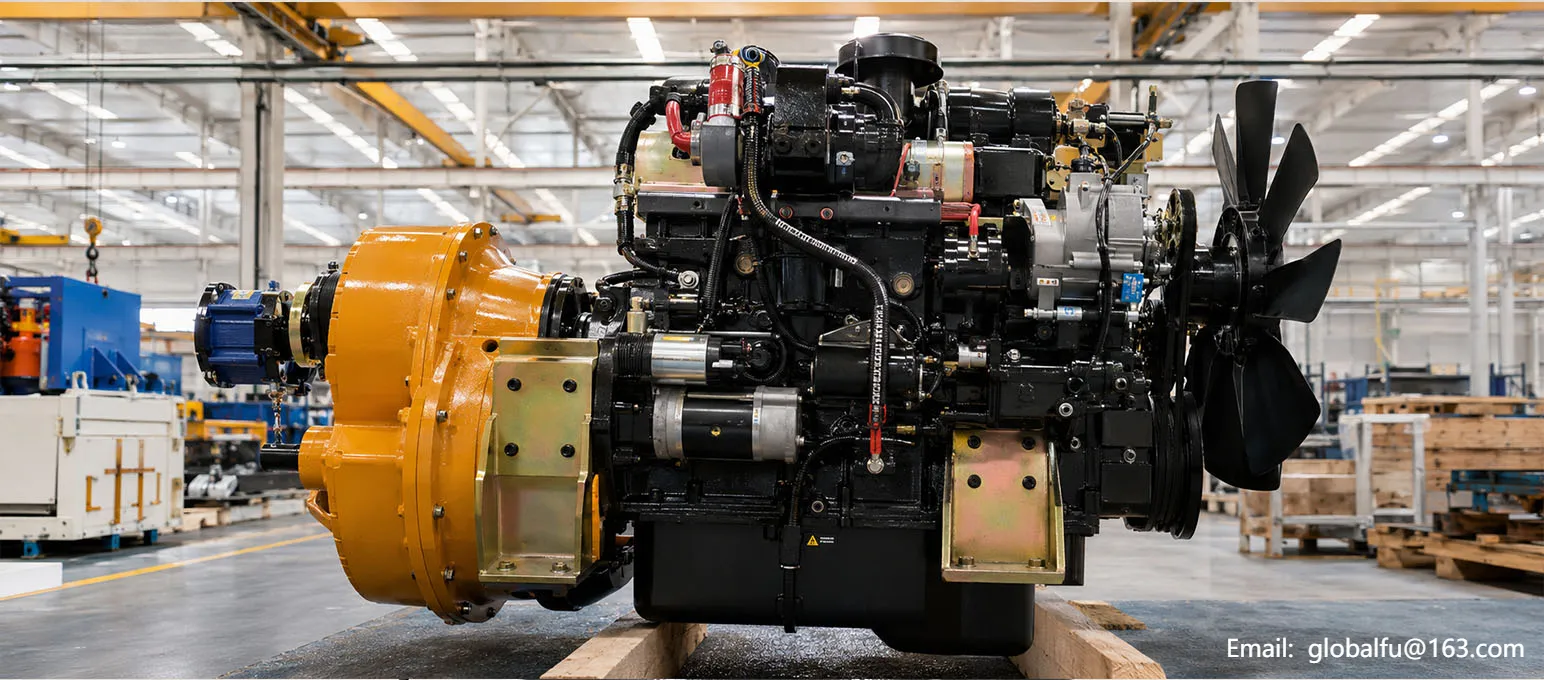

This model is equipped with a Yunnei 490 turbocharged diesel engine rated at 55kW. The turbocharged diesel power system supports stronger working performance for onsite concrete mixing, jobsite movement, and regular construction operation.
Diesel power is practical for outdoor construction, rural road projects, remote jobsites, and areas where stable electric power may not always be available.

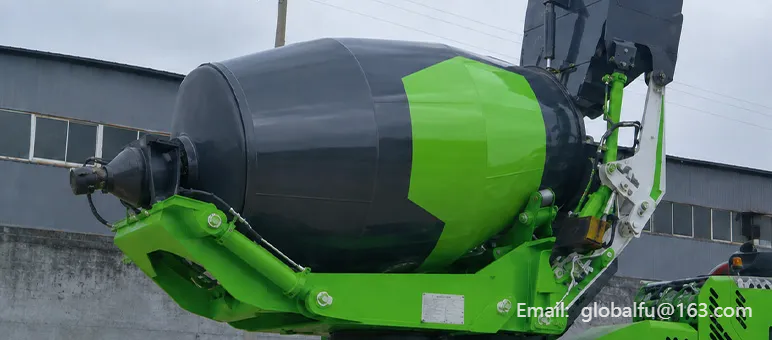

The mixer uses a double-cone mixing drum with double-spiral mixing screws and a convex bottom. The drum has a 3500L geometrical capacity and provides approximately 2m³ concrete yield per batch.
With a drum rotation speed of 18–21 rpm, the machine supports onsite concrete preparation for building foundations, road repair, rural construction, small infrastructure work, and other medium-output concrete applications.
The drum can be hydraulically slewed up to 270° and locked by a hydraulic brake. This helps the operator adjust the discharge direction more flexibly around different jobsite layouts.
The unloading chute is manually adjustable and can rotate by 90°. Two removable chute extensions are provided as standard, helping discharge concrete more conveniently into foundations, road sections, trenches, or other working positions.

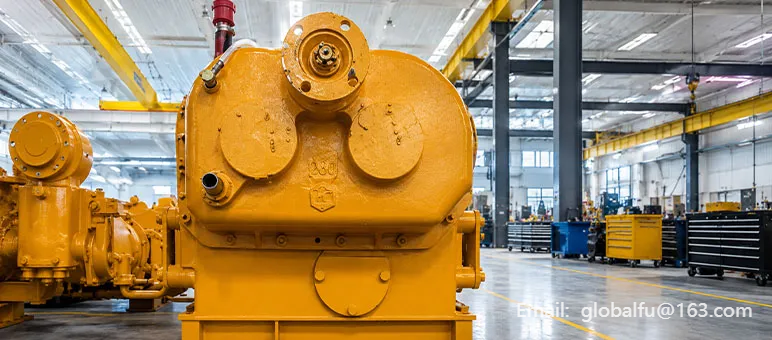

The 2CBM model uses a torque converter drive form and ZL-265 power shift gearbox with 4 forward and 4 reverse gears. This configuration supports flexible movement, positioning, and site transfer during loading, mixing, and unloading operations.
The torque converter helps deliver smoother power transmission under construction working conditions, while multiple gears allow the machine to adapt to different jobsite movement requirements.
The hydraulic system includes a KY07-2-0 reducer, 50/32 dual gear pump, and cycloid 125 motor. These components support key working actions related to mixing, loading, movement, and unloading.

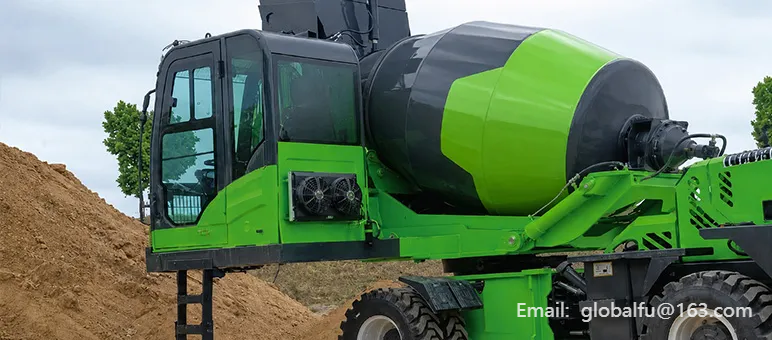

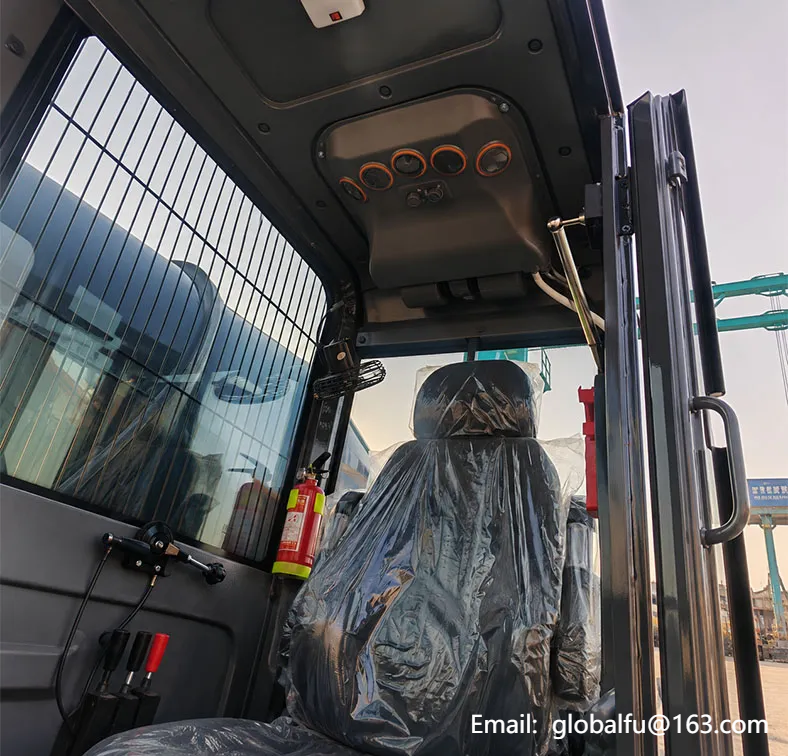

The machine also uses a compact four-wheel chassis with 280 mm ground clearance and a visible enclosed cab structure. These features support better jobsite mobility, driver visibility, and operating convenience on small and medium construction sites.
Engineered for adaptability, our self-loading concrete mixers deliver high-quality concrete exactly where you need it, overcoming the limitations of traditional batching plants
