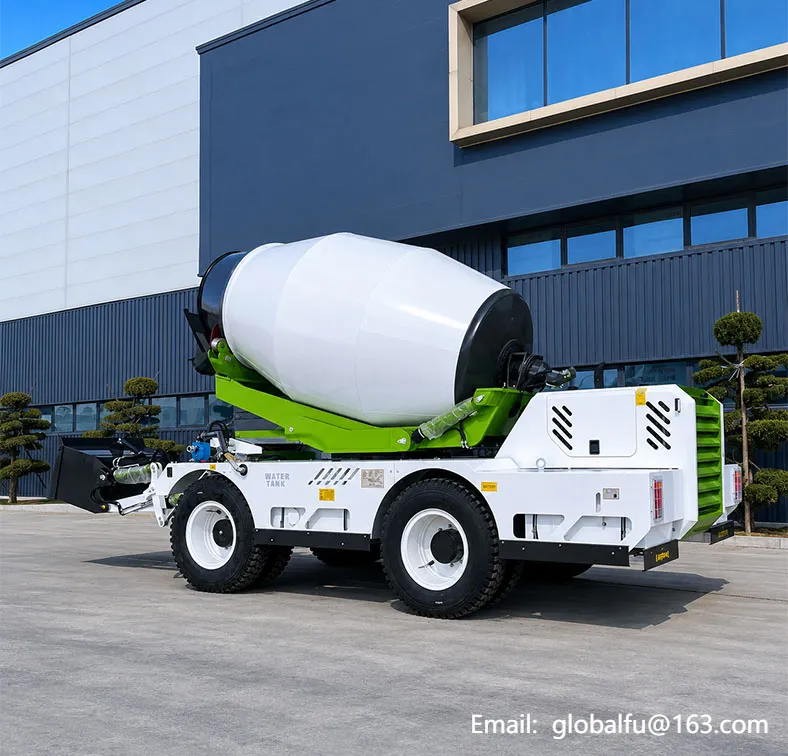

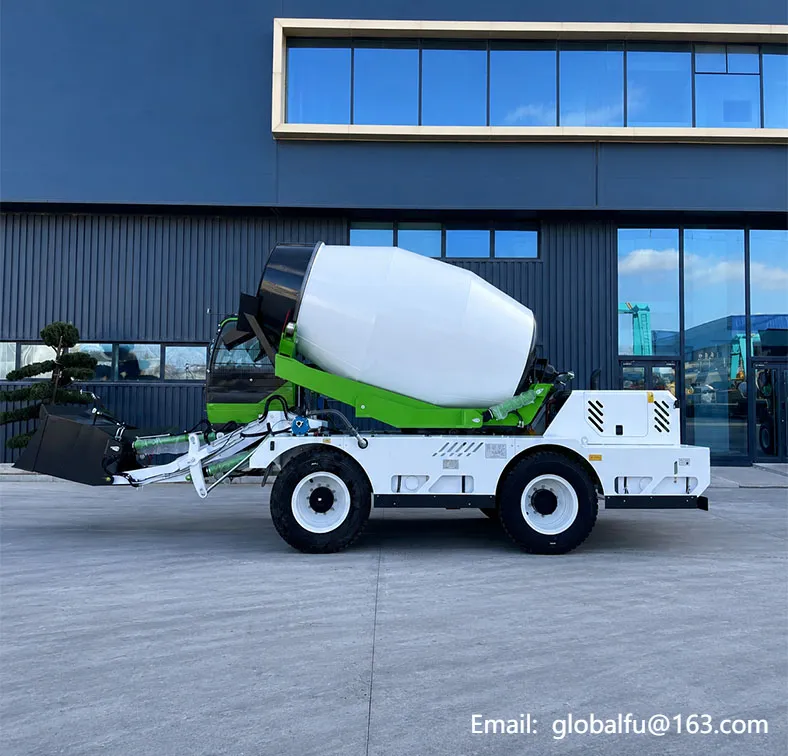

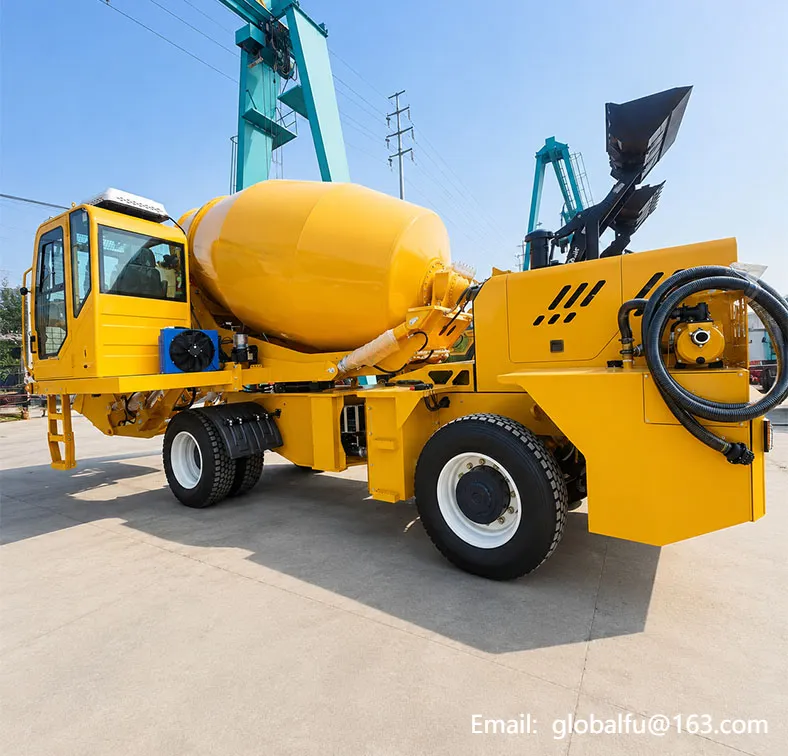

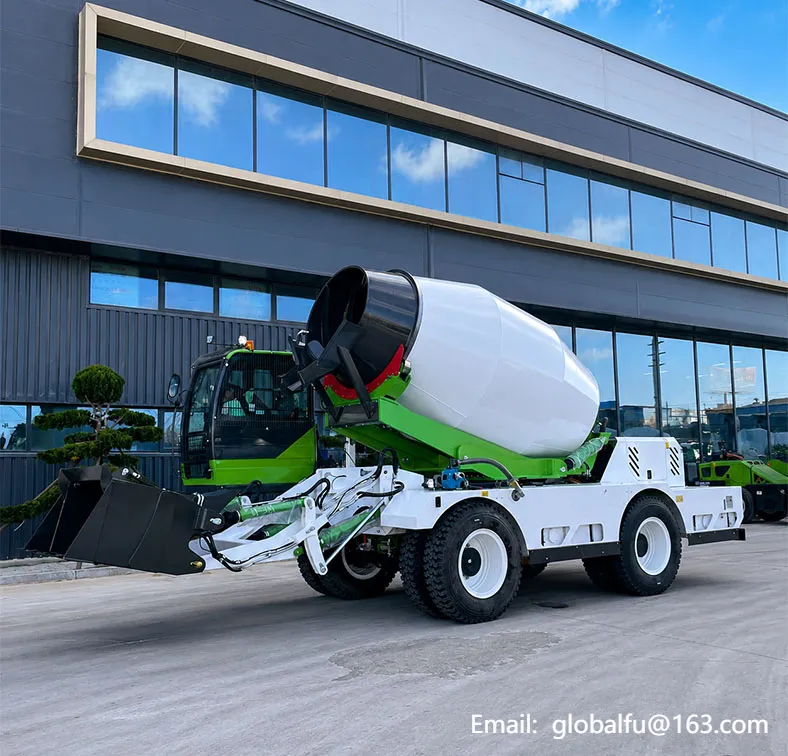

The 6.5 CBM Self-Loading Concrete Mixer Truck is designed for onsite concrete loading, mixing, transportation, and discharge in building construction, road projects, rural construction, municipal work, bridge construction, and remote jobsite concrete supply. This JBC-6.5 self-loading concrete mixer combines a loading system, mixing drum, water supply system, hydraulic transmission, electronic scale, and discharge system into one mobile concrete machine. It helps contractors reduce dependence on separate loading equipment, electric concrete mixers, and concrete transport vehicles in suitable jobsite conditions. With a Yuchai 6105 turbocharged diesel engine, 92kW / 125HP power, ZL-315 power shift gearbox, 270° articulated working structure, automatic water metering, full hydraulic external water suction pump, manganese steel mixing drum, and automatic hydraulic chute, this model is suitable for buyers who need a higher-capacity self loading concrete mixer truck for medium and large construction projects.
6.5 CBM Class Mixer
Yuchai 6105 Engine, 92kW
ZL-315 Gearbox, 4F + 4R
270° Operation & Automatic Systems
Get Latest Price
Download PDF Catalog
| Item | Specification |
| Product Name | 6.5m³ 270° Articulated Self-Loading Concrete Mixer Truck |
| Model | JBC-6.5 |
| Overall Dimensions | 8750 × 3200 × 4880mm |
| Wheelbase | 3400mm |
| Curb Weight | 12500kg |
| Drum Geometric Capacity | 9.8m³ |
| Injection / Combustion System | Direct Injection, Re-entrant W-Type Combustion Chamber |
| Drive Type | Torque Converter |
| Cooling System | Vertical Inline, Water-Cooled |
| Maximum Speed | 42km/h |
| Gearbox Model | ZL-315 Power Shift Gearbox |
| Maximum Gradeability | 40° |
| Transmission Gears | 4 Forward + 4 Reverse |
| Engine Model | Yuchai 6105 Turbocharged Engine |
| Rated Power | 92kW |
| Fuel Type | Diesel |
| Emission Standard | China II Emission Standard |
The machine is equipped with a Yuchai 6105 turbocharged diesel engine, with 92kW power and 125HP output.
This diesel engine configuration supports concrete loading, mixing, transportation, and discharge in demanding construction environments. The provided engine data also includes direct-injection reduced-bore W-type combustion chamber, vertical inline water cooling, and four-stroke structure, supporting stable work performance during continuous jobsite use.

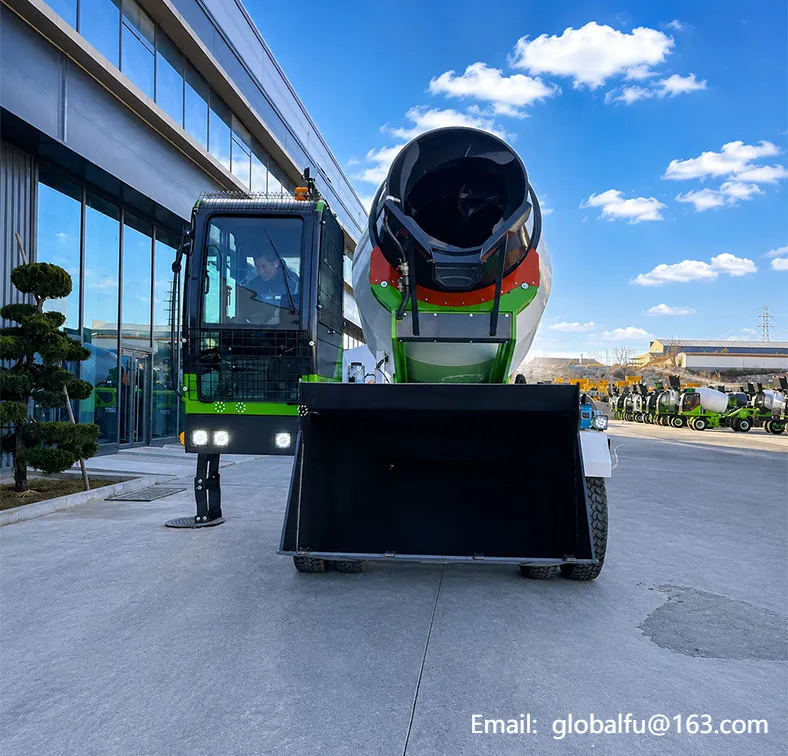

The machine uses a genuine excavator-style cab with heating and cooling air conditioning.
The cab configuration supports better operator comfort during long working hours. The machine also includes a large automotive seat and driving camera, helping operators manage loading, mixing, driving, and discharge work more conveniently on busy jobsites.
The mixing drum uses manganese steel material and is designed with four supporting rollers for better drum stability during operation.
This structure helps the concrete mixer maintain stable rotation during onsite mixing and transportation. The drum configuration is suitable for construction projects that require mobile concrete production without relying only on a fixed batching plant or external concrete truck supply.
The machine is equipped with automatic water metering, full hydraulic external water suction pump, and two sets of water supply systems.
Automatic water metering helps improve batching consistency and reduce manual water-control errors. The hydraulic external suction pump supports water intake in different jobsite conditions, making the machine more practical for remote construction areas and temporary concrete work.
The machine is equipped with a fully sealed ductile cast steel turntable, designed to support stable rotation and reliable structural strength during loading, mixing, turning, and discharge operations.
The sealed structure helps protect the turntable system from dust, sand, water, and jobsite debris, making it more suitable for demanding construction environments. Combined with the 180° hydraulic rotation and hydraulic brake locking system, this turntable design helps improve operating stability, rotation reliability, and long-term durability during concrete unloading.
Engineered for adaptability, our self-loading concrete mixers deliver high-quality concrete exactly where you need it, overcoming the limitations of traditional batching plants
