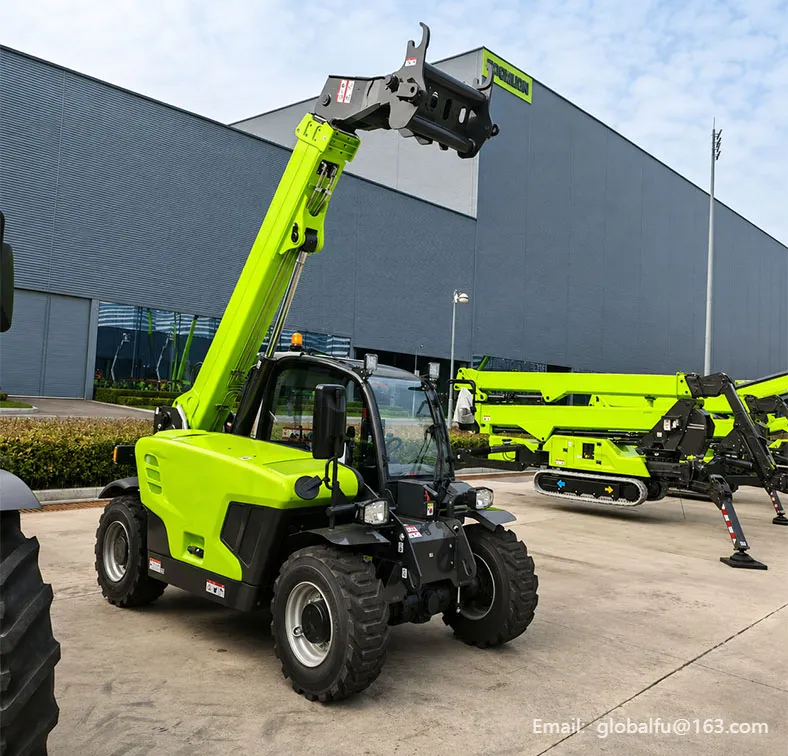

The ZTH2506R Compact Telehandler is a 2.5 ton compact telescopic handler designed for construction material handling, farm work, warehouse loading, yard handling, and multi-purpose jobsite operations. With a 2500kg rated capacity, 6m maximum lift height, 3.43m maximum forward reach, compact body dimensions, Kubota engine options, and multiple attachment choices, this telehandler helps buyers handle loading, lifting, stacking, and short-distance material movement in tighter working areas. For contractors, farms, equipment dealers, and project users looking for a practical 6m telehandler or 2.5 ton telehandler, this model provides a compact structure with flexible attachment compatibility for different working conditions.
2500kg Rated Load
6m Lift / 3.43m Reach
Kubota Engine
Multiple Attachment Options
Get Latest Price
Download PDF Catalog
| Item | Specification |
| Product Name | ZTH2506R Compact Telehandler |
| Model Shown in Parameter Image | ZTH2506 |
| Product Type | Compact telehandler / compact telescopic handler |
| Overall Length | 3.95m |
| Overall Width | 1.84m |
| Overall Height | 1.98m |
| Rated Capacity | 2500kg |
| Max Lift Height | 6m |
| Max Forward Reach | 3.43m |
| Lift Capacity at Max Reach | 800kg |
| Fork Size | 1220mm × 100mm × 45mm |
| Fork Rotary | 130° |
| Engine | KUBOTA V3307-CR-T-EW08M / KUBOTA V3307-DI-T-MAR1-ET02 |
| Weight | 4970kg |
| Available Attachments | Floating Fork, Bucket, Agricultural Bucket, Fork & Grab, Frame Mounted Hook, Clamp |
| Applications | Construction material handling, farm work, warehouse loading, yard handling, jobsite handling |
With an overall length of 3.95m, width of 1.84m, and height of 1.98m, this compact telehandler is suitable for jobsites where larger equipment may be difficult to operate.
The compact body helps improve site adaptability for narrow working areas, farm lanes, warehouse entrances, and small-to-medium construction sites.

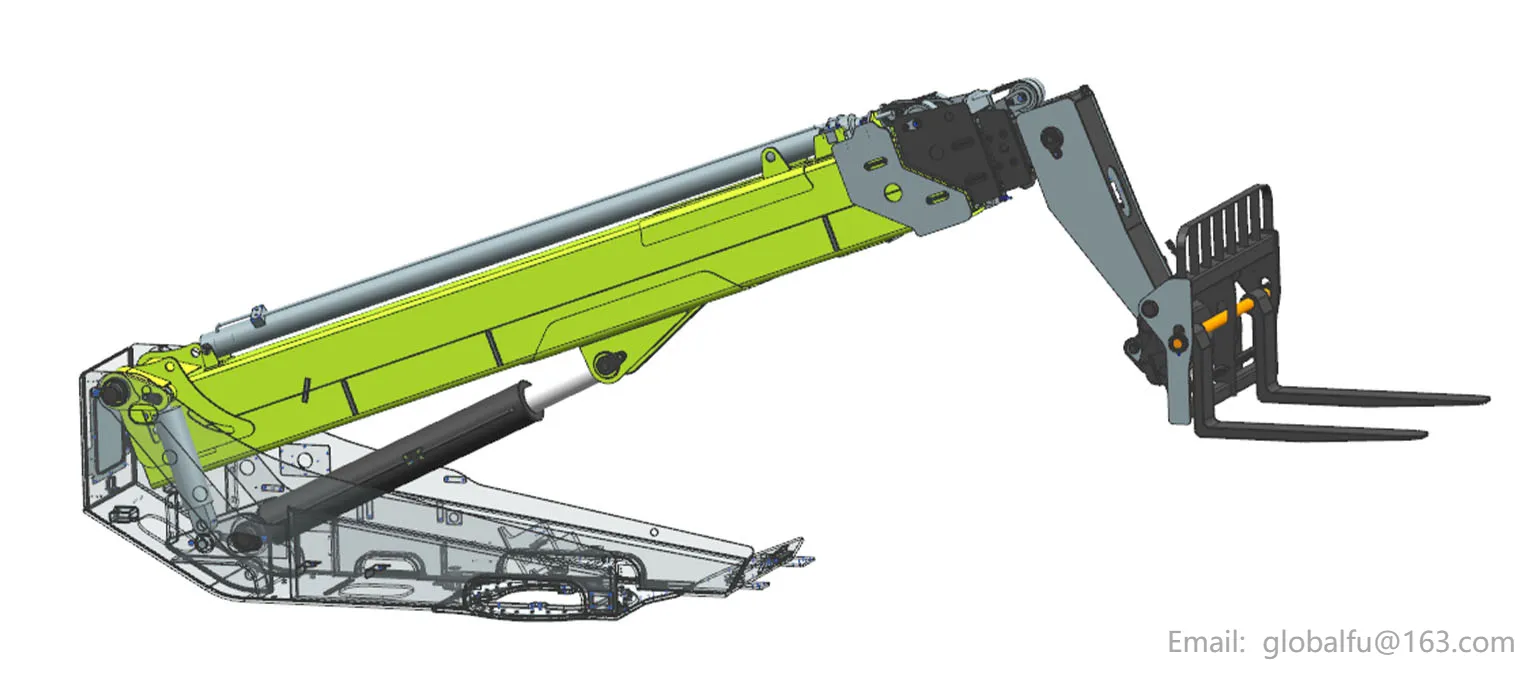

The boom system uses a three-section boom with dual-cylinder synchronous telescoping structure. It provides 18m maximum lifting height, 15.1m maximum forward reach, and 600kg load at maximum forward reach.
The boom is made with high-strength steel, with built-in pipeline layout to keep the structure compact and reduce accidental collision risk. Boom damping technology helps support smoother operation.

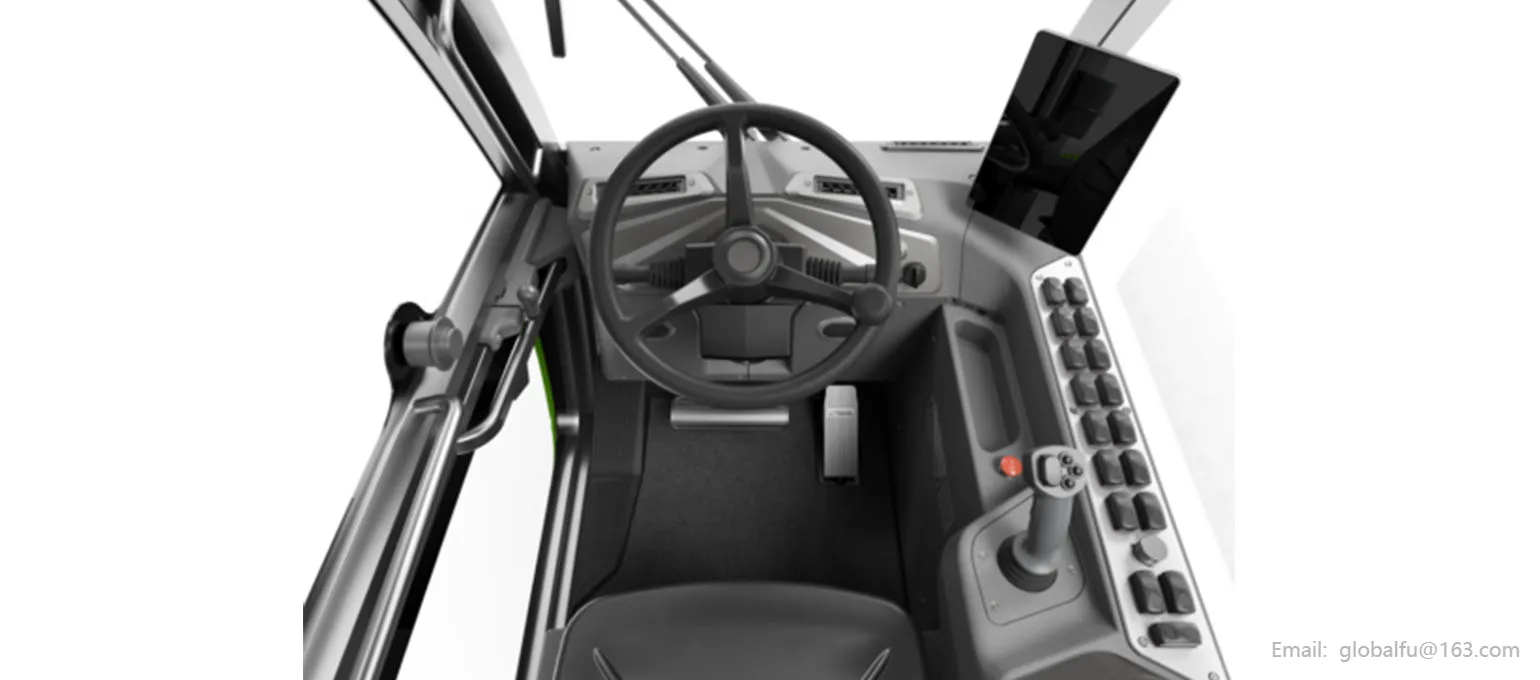

The cab meets FOPS & ROPS safety requirements. It is designed with wide visibility, comfortable operation, a suspension seat, ergonomic single-hand control handle, and standard heating and cooling air conditioning.
The cab also includes a 10.1-inch display, working lights for night operation, and an integrated monitoring/control interface to improve daily operating convenience.
Our rotating telehandlers provide flexible lifting and material handling solutions for construction sites, farms, warehouses, yards, and jobsite operations, with compact body design, telescopic boom reach, flexible attachment options, and reliable Kubota engine configurations.
