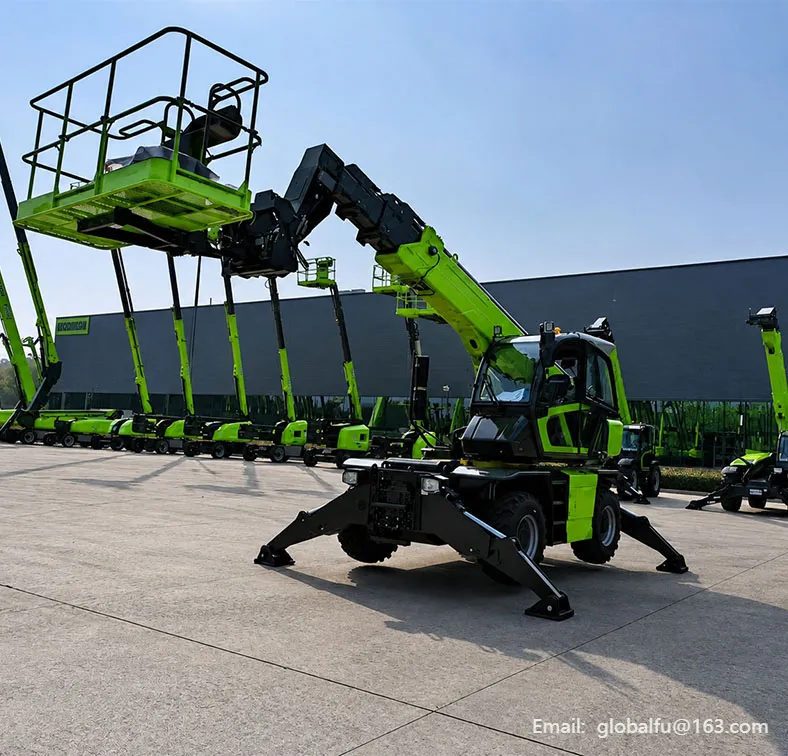

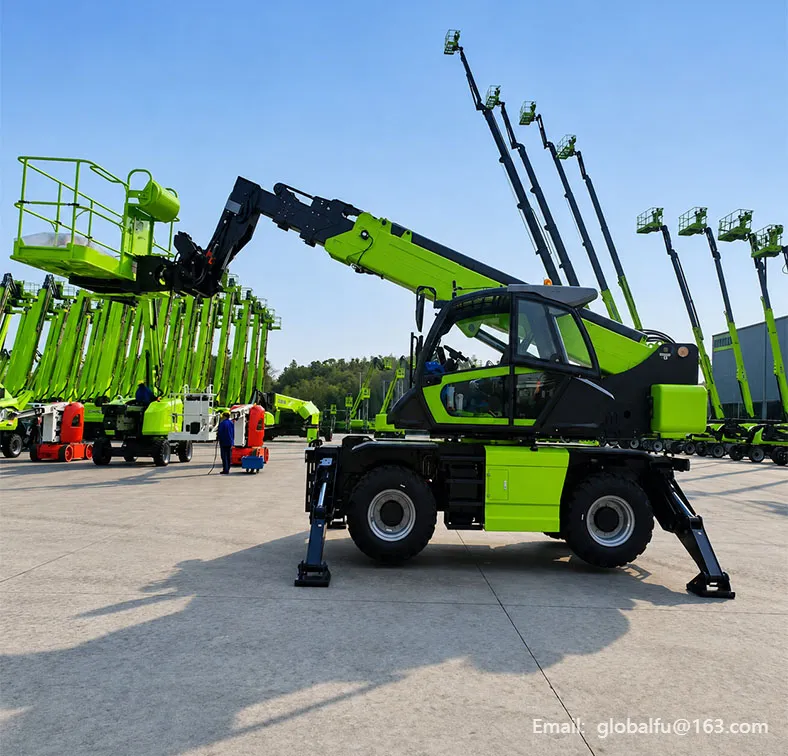

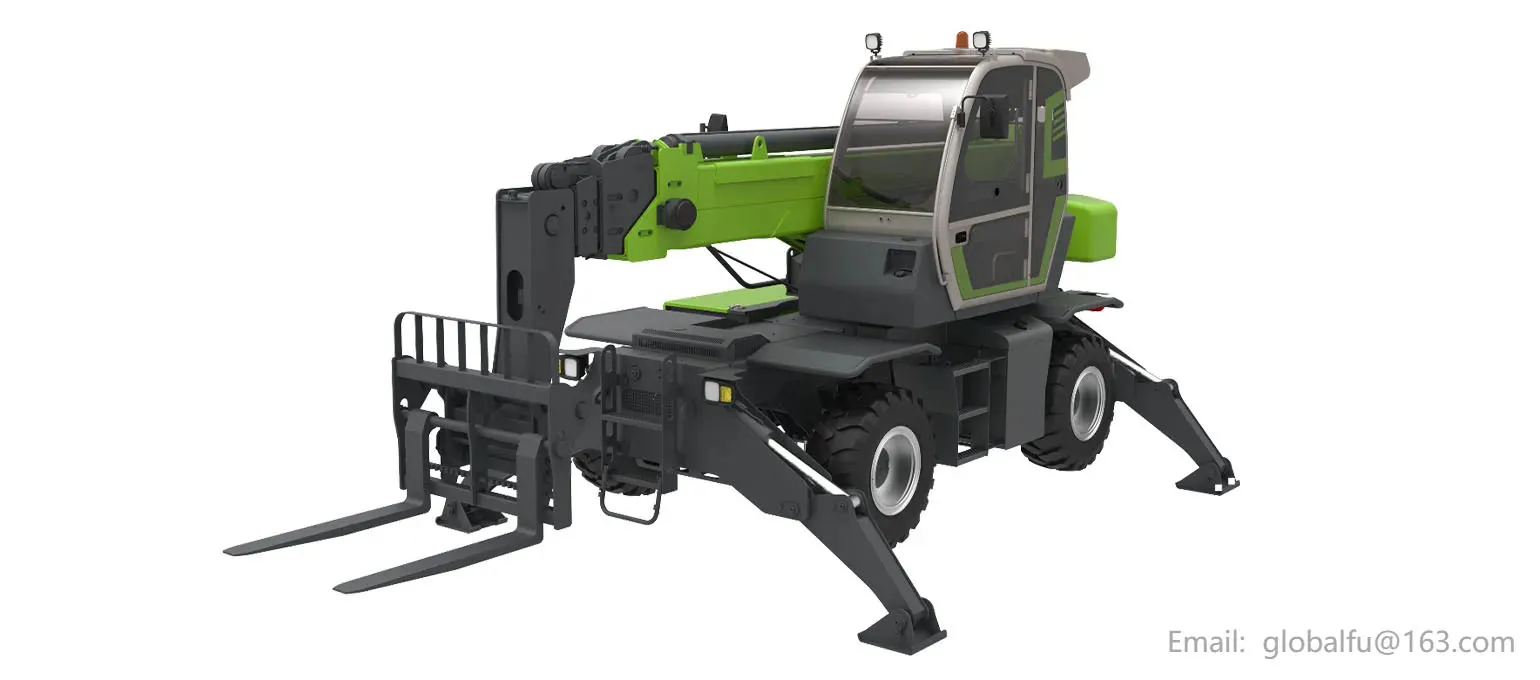

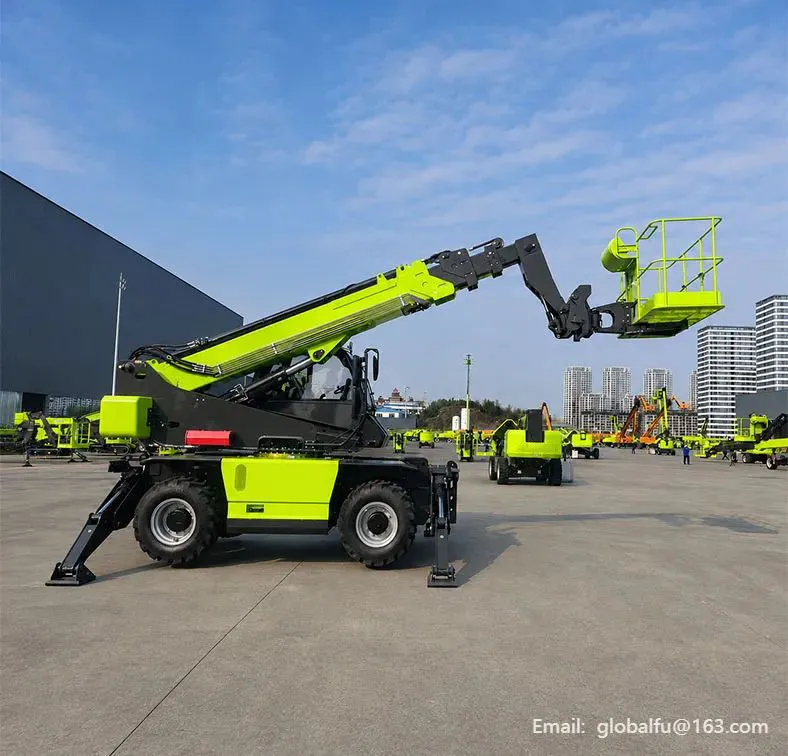

The ZTH4518R Rotating Telehandler is mainly composed of attachments, a quick coupler, boom assembly, slewing platform assembly, counterweight, chassis assembly, and operator cab. The machine adopts hydrostatic drive, delivering comfortable driving performance and excellent off-road capability. With rear axle floating lock function, the ZTH4518R offers stronger site adaptability. Three steering modes—four-wheel steering, front-wheel steering, and crab steering—can be switched freely to meet different working conditions. The quick coupler supports optional hydraulic locking pins, helping improve attachment changing efficiency. The attachment system adopts automatic fork leveling technology, offering fast response and high leveling accuracy. The cab complies with FOPS and ROPS requirements, providing a wide field of vision and a comfortable operating environment. With electro-hydraulic proportional control, the machine is easy and comfortable to operate and can perform combined movements smoothly. Multiple safety protection measures are integrated into the machine, including automatic fault detection and alarm functions. The ZTH4518R comes standard with floating forks and can be optionally equipped with clamps, work platforms, buckets, boom winches, and other attachments to meet diverse customer requirements.
4500kg Rated Load
18m Height / 15.1m Reach
Cummins Engine
4 Steering Modes
Get Latest Price
Download PDF Catalog
| Item | Specification |
| Model | ZTH4518R |
| Overall Length | 7.33m |
| Overall Width | 2.45m |
| Overall Height | 3.11m |
| Rated Capacity | 4500kg |
| Max Lift Height | 18m |
| Max Forward Reach | 15.1m |
| Lift Capacity at Max Reach | 600kg |
| Fork Size | 1220mm × 150mm × 50mm |
| Fork Rotary | 118° |
| Engine | Cummins QSF3.8_02 / Cummins F4.5 / Cummins F3.8_01 |
| Weight | 14500kg |
| Available Attachments | Floating Fork / General Bucket / Winch / Rotating Platform / Frame Mounted Hook / Extention Lifting Jib / Remote Control |
The off-road chassis uses a hydrostatic travel system for smooth operation, quick response, and stepless speed control. The rear axle has a ±8° floating function, helping the machine adapt to changing ground conditions.
The ZTH4518R supports two-wheel steering, four-wheel steering, and crab steering, allowing operators to switch steering modes according to jobsite space, loading position, and movement requirements.
The machine uses a 4×4 drive system and 405/70-20 18PR tires for jobsite mobility. It provides 95kN maximum traction force, helping the telehandler move materials across construction sites, yards, farms, and uneven ground.
High/low speed range configuration supports different road and off-road working needs, while the front and rear axles are equipped with limited-slip differential lock configuration as described in the technical material.

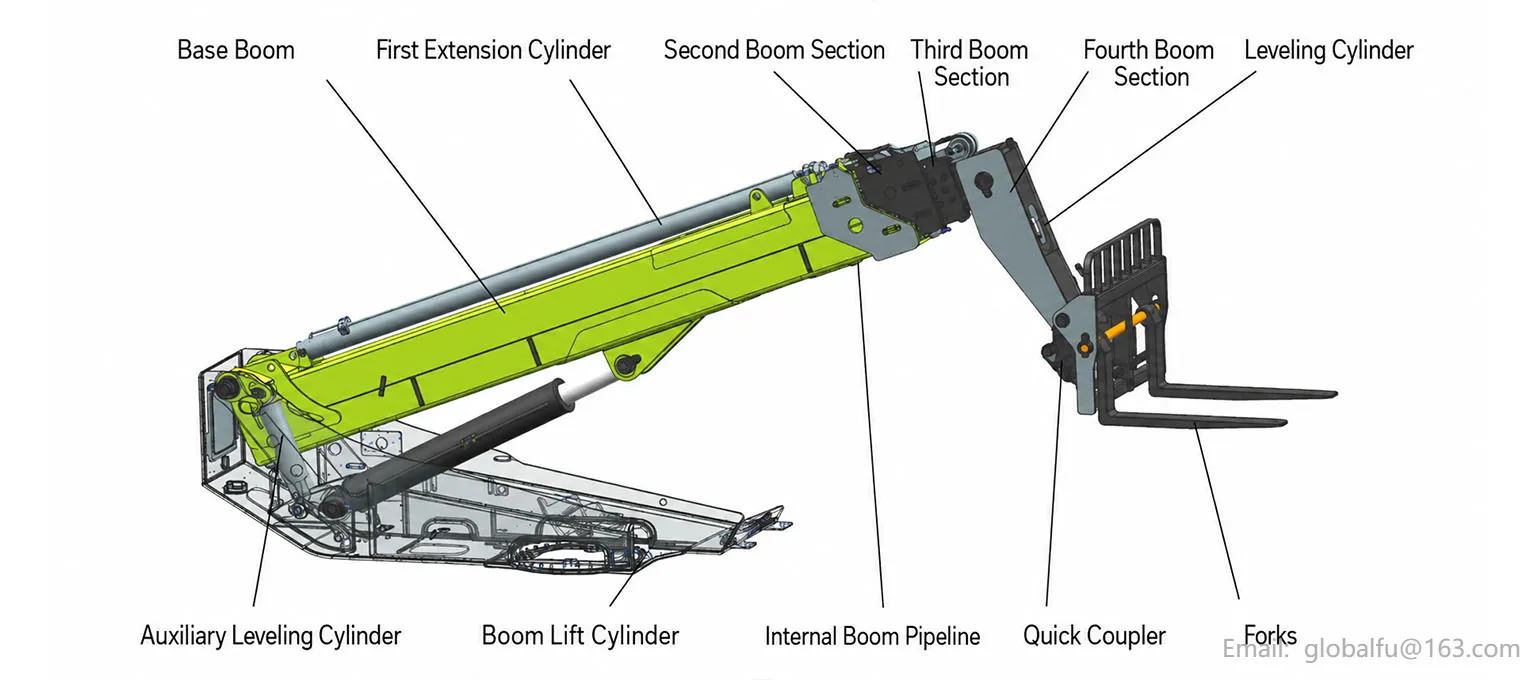

The boom system uses a three-section boom with dual-cylinder synchronous telescoping structure. It provides 18m maximum lifting height, 15.1m maximum forward reach, and 600kg load at maximum forward reach.
The boom is made with high-strength steel, with built-in pipeline layout to keep the structure compact and reduce accidental collision risk. Boom damping technology helps support smoother operation.
The cab meets FOPS & ROPS safety requirements. It is designed with wide visibility, comfortable operation, a suspension seat, ergonomic single-hand control handle, and standard heating and cooling air conditioning.
The cab also includes a 10.1-inch display, working lights for night operation, and an integrated monitoring/control interface to improve daily operating convenience.
The boom system is made of high-strength steel, helping reduce structural weight while improving load-bearing performance. The built-in pipeline layout keeps the boom structure compact and helps reduce accidental collision risks during operation.

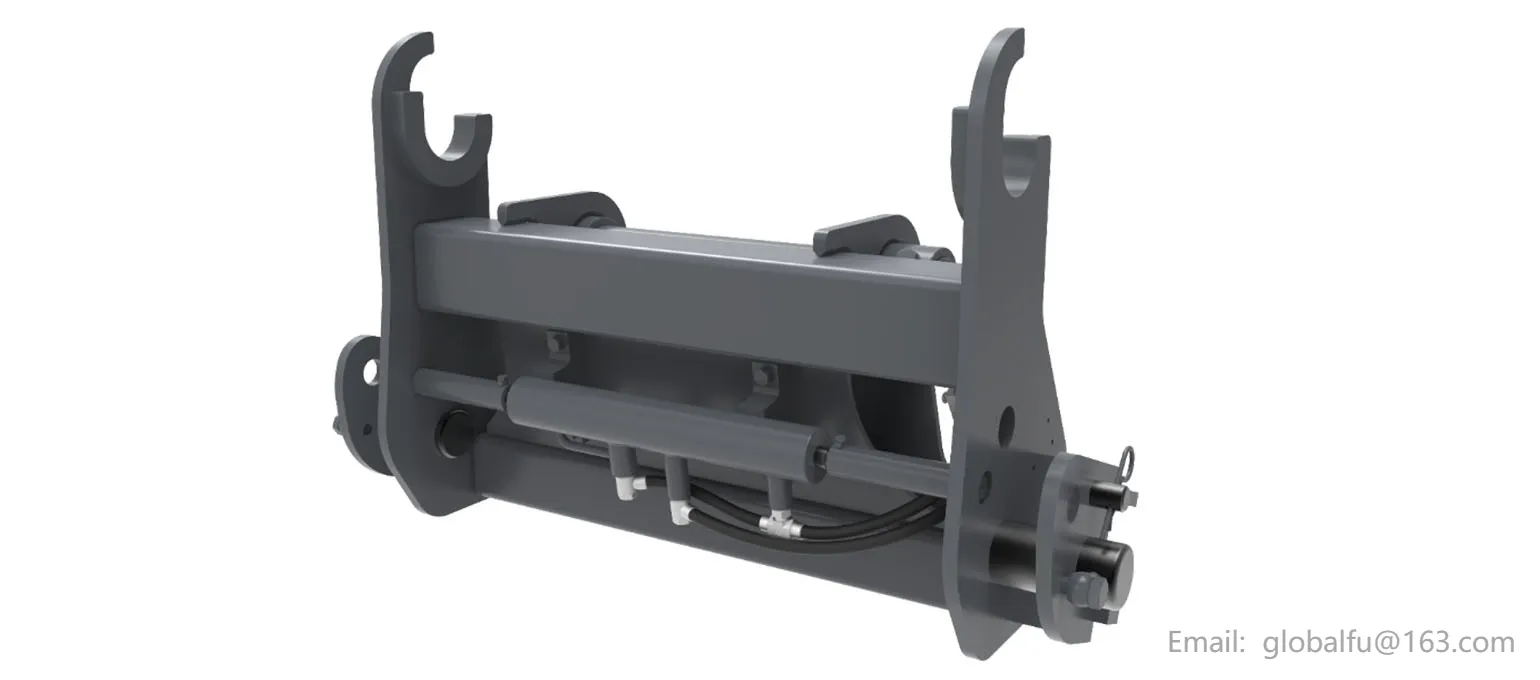

Boom damping technology supports smoother movement and better operating comfort, especially when lifting or positioning materials at height. The quick connection device can also be equipped with an optional hydraulic pin function, helping improve attachment changing efficiency for different jobsite tasks.
The ZTH4518R uses an automatic fork leveling system with fast response and high leveling accuracy, helping keep materials more stable during lifting, extending, and placement operations.

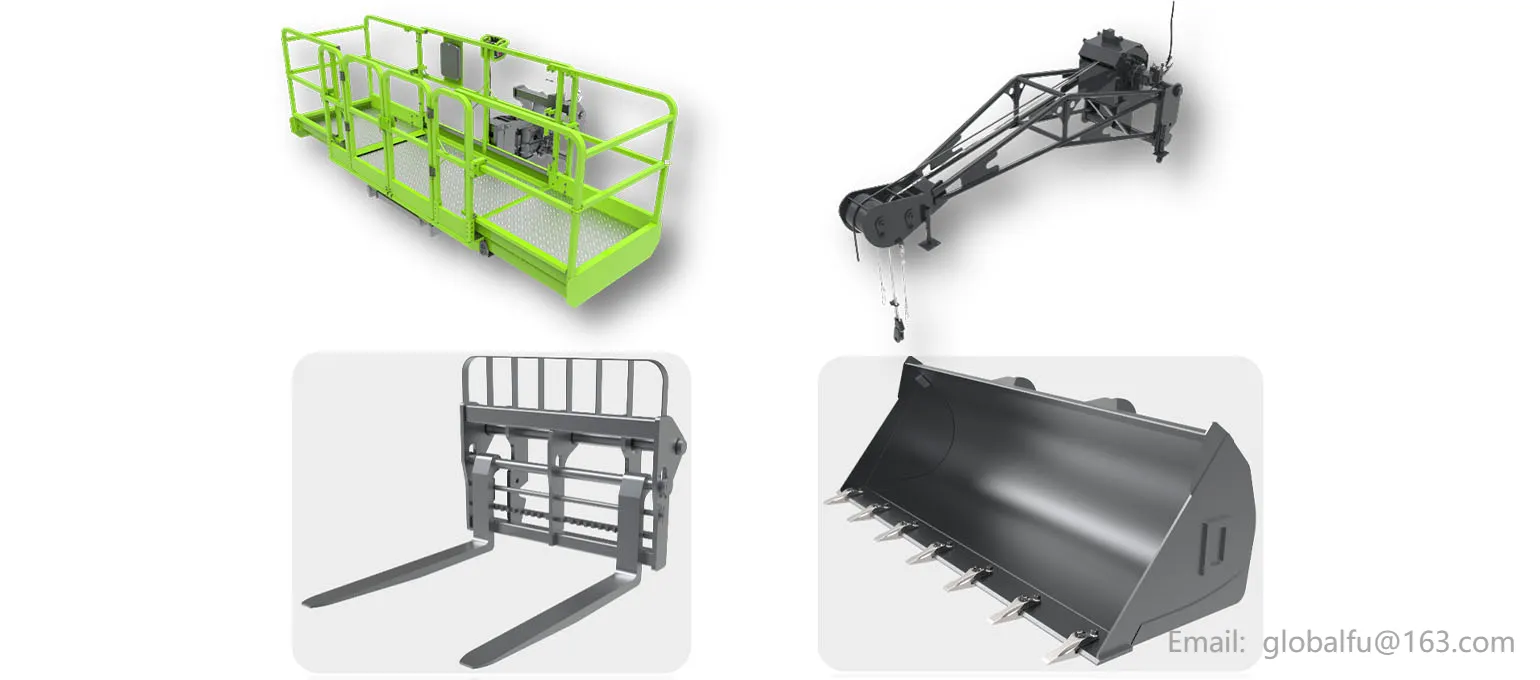

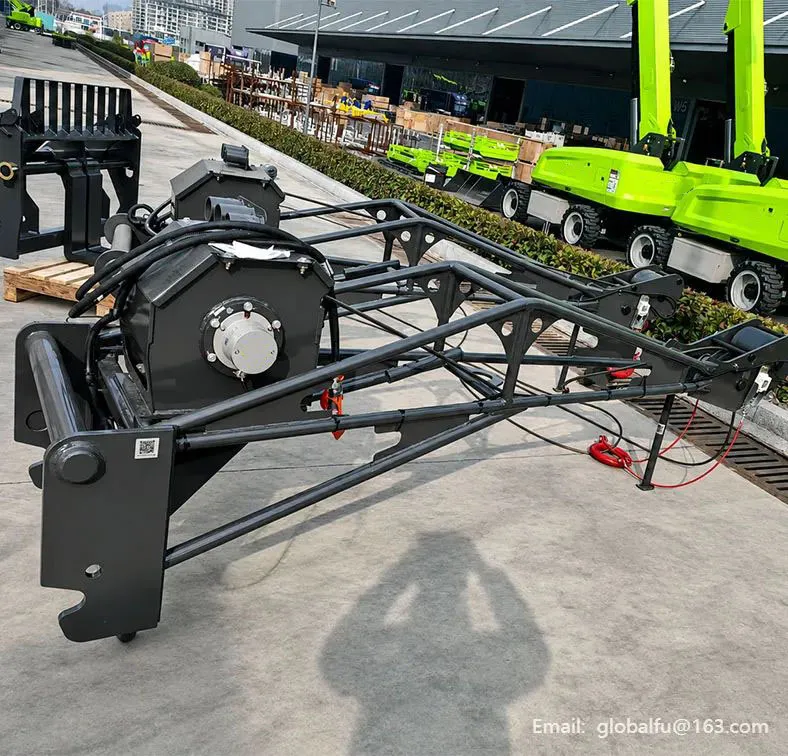

The attachment connection interface is standardized for better compatibility. The machine comes with standard floating forks and can be optionally equipped with a platform, bucket, boom, and other attachments, allowing customers to match the telehandler with different construction material handling, high-position loading, and multi-purpose jobsite applications.
Our rotating telehandlers provide flexible lifting and material handling solutions for construction sites, farms, warehouses, yards, and jobsite operations, with compact body design, telescopic boom reach, flexible attachment options, and reliable Kubota engine configurations.
