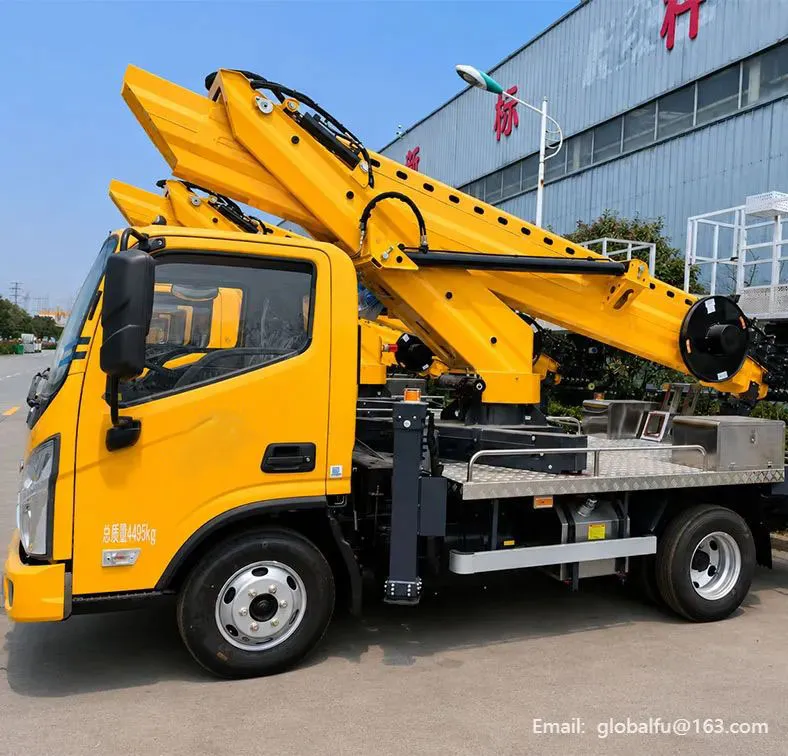

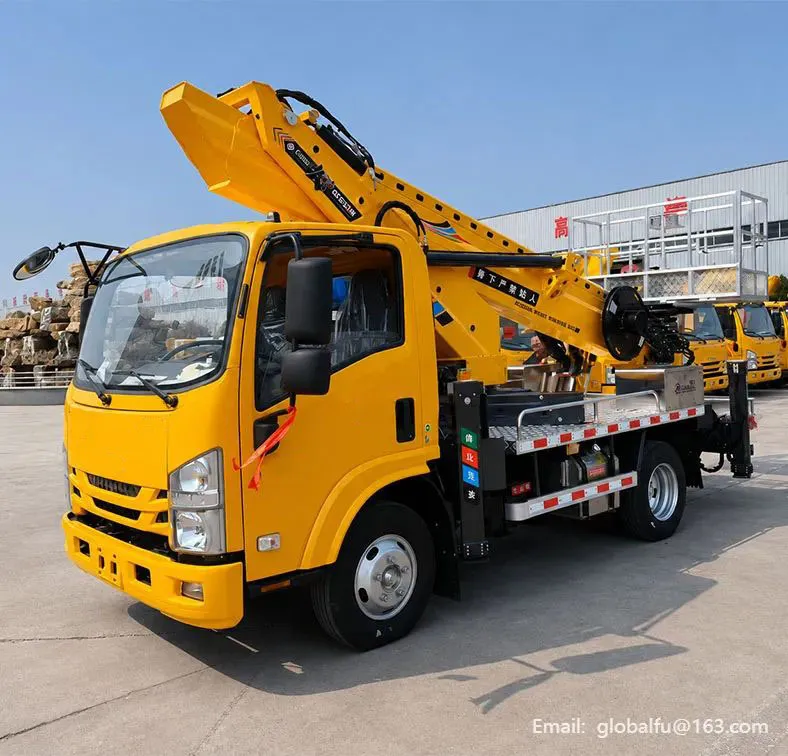

The 30.5 Meter Aerial Work Platform Truck is a truck-mounted aerial working solution designed for high-position maintenance, installation, inspection, and repair work in construction and municipal service environments. With a maximum working height of 30.5m, a rated platform load of 200kg, a maximum operating range of 16m, X-type hydraulic legs, 360° continuous rotation, CAN bus control system, hydrostatic automatic leveling, and remote/manual operation, this aerial work platform truck is suitable for streetlight maintenance, road facility repair, communication equipment service, park maintenance, building exterior work, and other high-access jobsite tasks. For buyers looking for a 30.5m truck mounted aerial work platform, this model provides a practical combination of working height, platform capacity, telescopic boom structure, support stability, and safety control for professional aerial work applications.
30.5m
200kg Load
Up to 16m Outreach
CAN Control & Emergency Stop
Get Latest Price
Download PDF Catalog
| Item | Specification |
| Product Name | 30.5 Meter Aerial Work Platform Truck |
| Product Type | Truck-mounted aerial work platform / aerial work platform truck |
| Chassis Options | Jiangling / Isuzu / Qingling / Futian / Jianghuai, final chassis to be confirmed |
| Drive Mode | Rear drive |
| Number of Front Tires | 2 |
| Number of Rear Tires | 4 |
| Braking Method | Oil brake |
| Number of Drivers | 2 people |
| Temperature Regulation | Air conditioning |
| Emissions | National VI emissions |
| Overall Size | 5920 × 2000 × 3050/2730mm |
| Total Mass | 4495kg |
| Wheelbase | 2800 / 3360mm |
| Maximum Driving Speed | 99km/h |
| Approach Angle | 20° |
| Departure Angle | 13° |
| Applications | Municipal maintenance, streetlight maintenance, communication facility service, building exterior work, park maintenance, road facility repair |
| Item | Specification |
| Maximum Working Height | 30.5m |
| Rated Platform Load | 200kg |
| Operating Range at Maximum Height | 5m |
| Maximum Operating Range | 16m |
| Operating Height at Maximum Range | 25m |
| Working Platform Size | 1400 × 710 × 1200mm |
| Boom Form | 6/7-section eighteen-sided boom |
| Boom Telescopic Structure | Oil cylinder + steel wire rope |
| Rotation Device | 360° continuous rotation |
| Legs | X-type hydraulic legs |
| Leg Span, Lateral | 4462mm |
| Leg Span, Longitudinal | 4918mm |
| Power Take-Off System | Mechanically operated |
| Variable Speed Cylinders | 1/2, final configuration to be confirmed |
| Operation Mode | Remote control / manual |
| Emergency Operation | Equipped with automatic emergency operation |
| Control System | CAN bus control system |
| Leveling System | Hydrostatic automatic leveling |
| Control Voltage | 12V |
This aerial work platform is built on a truck-mounted chassis structure, making it suitable for moving between municipal maintenance points, road facilities, project sites, and outdoor working areas.
The provided chassis options include Jiangling, Isuzu, Qingling, Futian, and Jianghuai, with the final chassis configuration to be confirmed according to project requirements and market regulations.
The vehicle uses rear drive, oil brake, air conditioning, and National VI emissions according to the provided technical data.
The boom system supports a maximum working height of 30.5m and a maximum operating range of 16m. At the maximum operating range, the operating height reaches 25m, helping the operator access high-position work areas with practical outreach.
The boom uses an oil cylinder and steel wire rope telescopic structure. The boom form is listed as a 6/7-section eighteen-sided structure, supporting aerial work applications that require height, reach, and controlled extension.

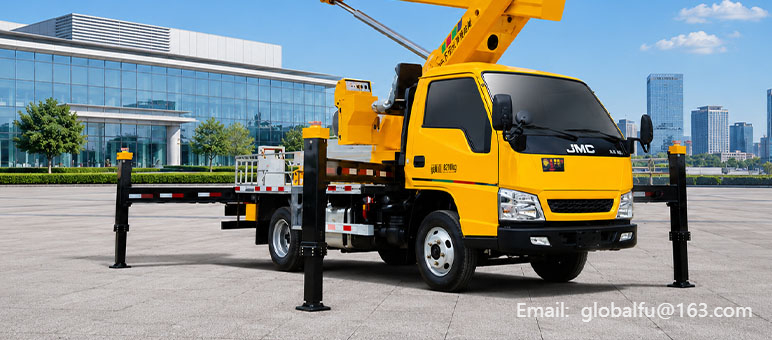

The machine is equipped with X-type hydraulic legs to support stable operation during aerial work. The provided safety configuration also mentions square hydraulic support legs with stronger load-bearing capacity, so the final support-leg structure should be confirmed according to the selected chassis and configuration.

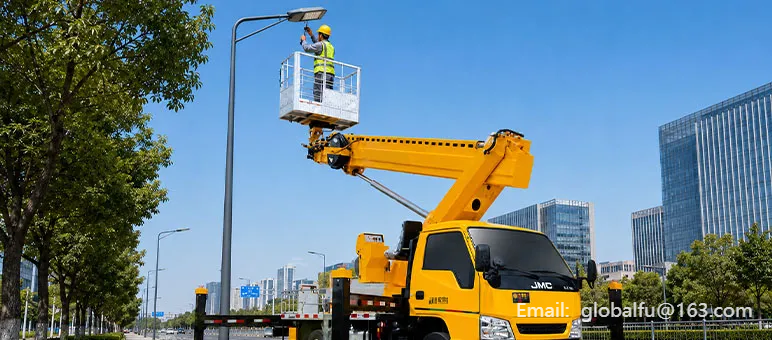

Our aerial work platform trucks offer safe and flexible height-work solutions for municipal maintenance, streetlight repair, road work, parks, and building exterior projects.
