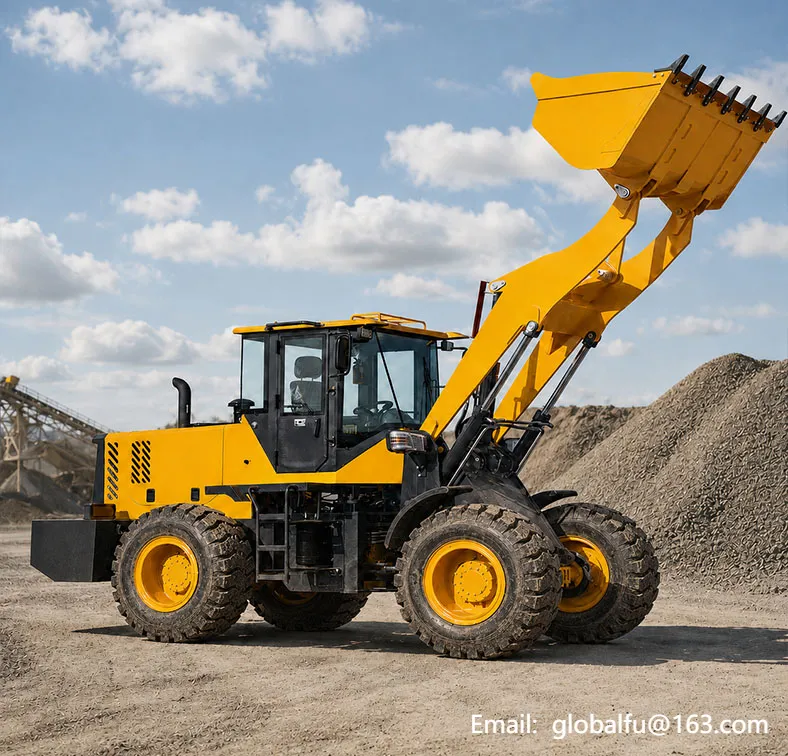

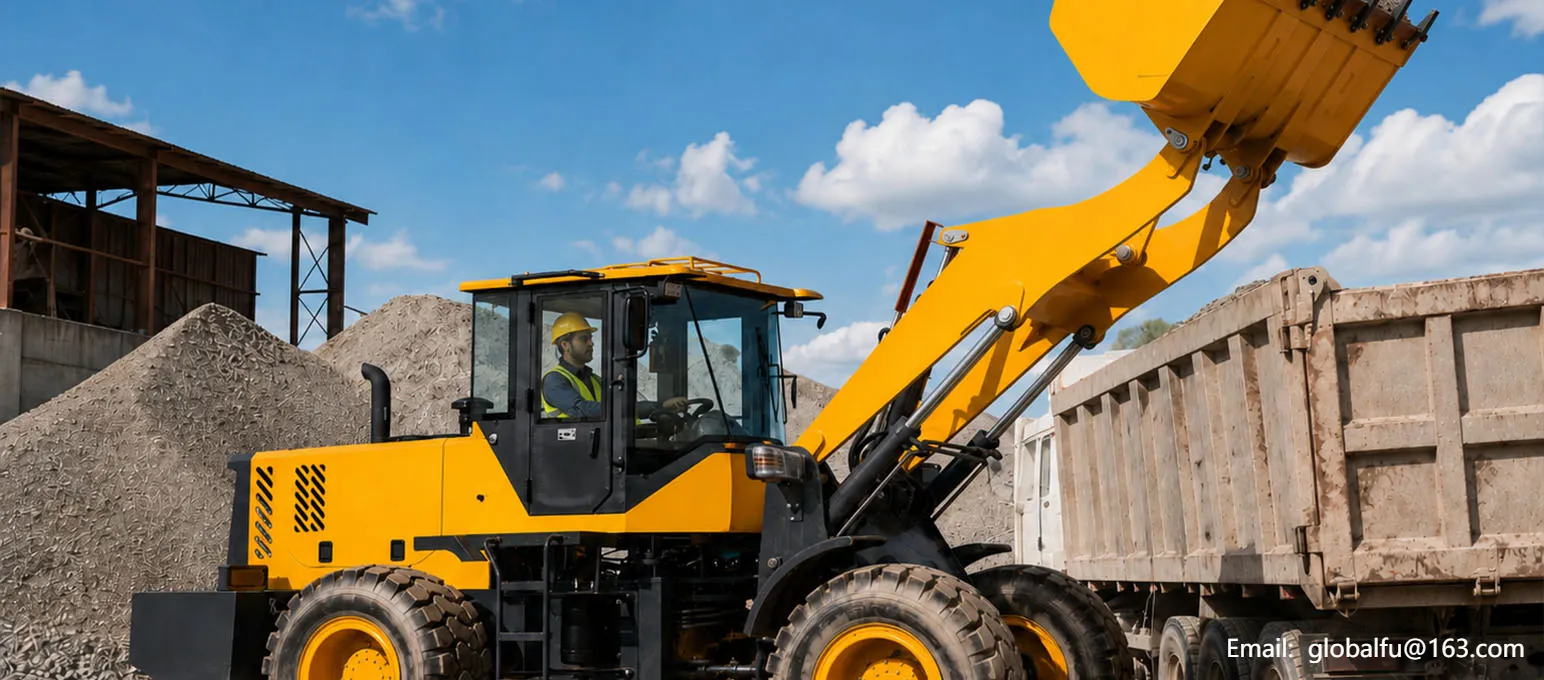

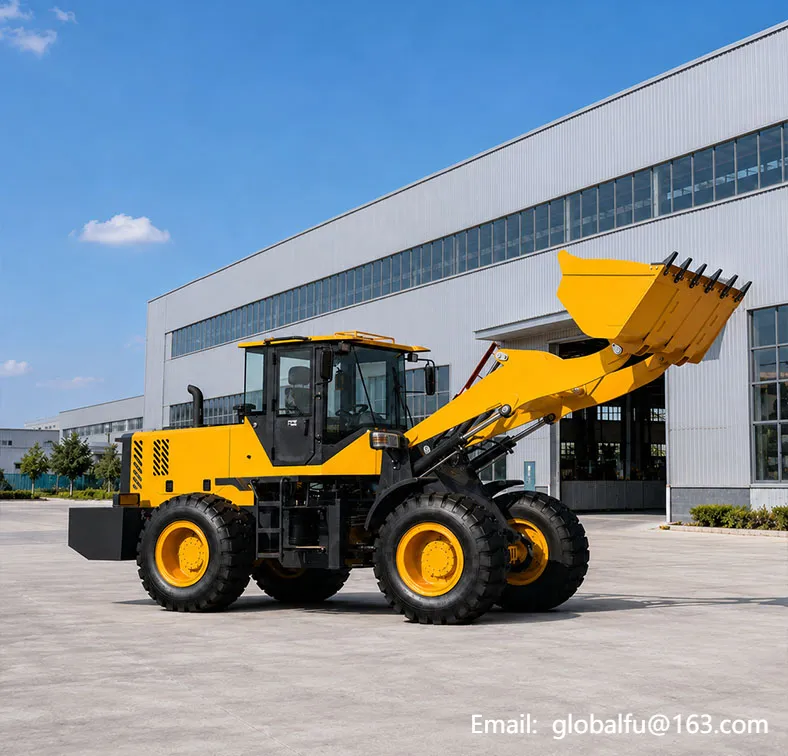

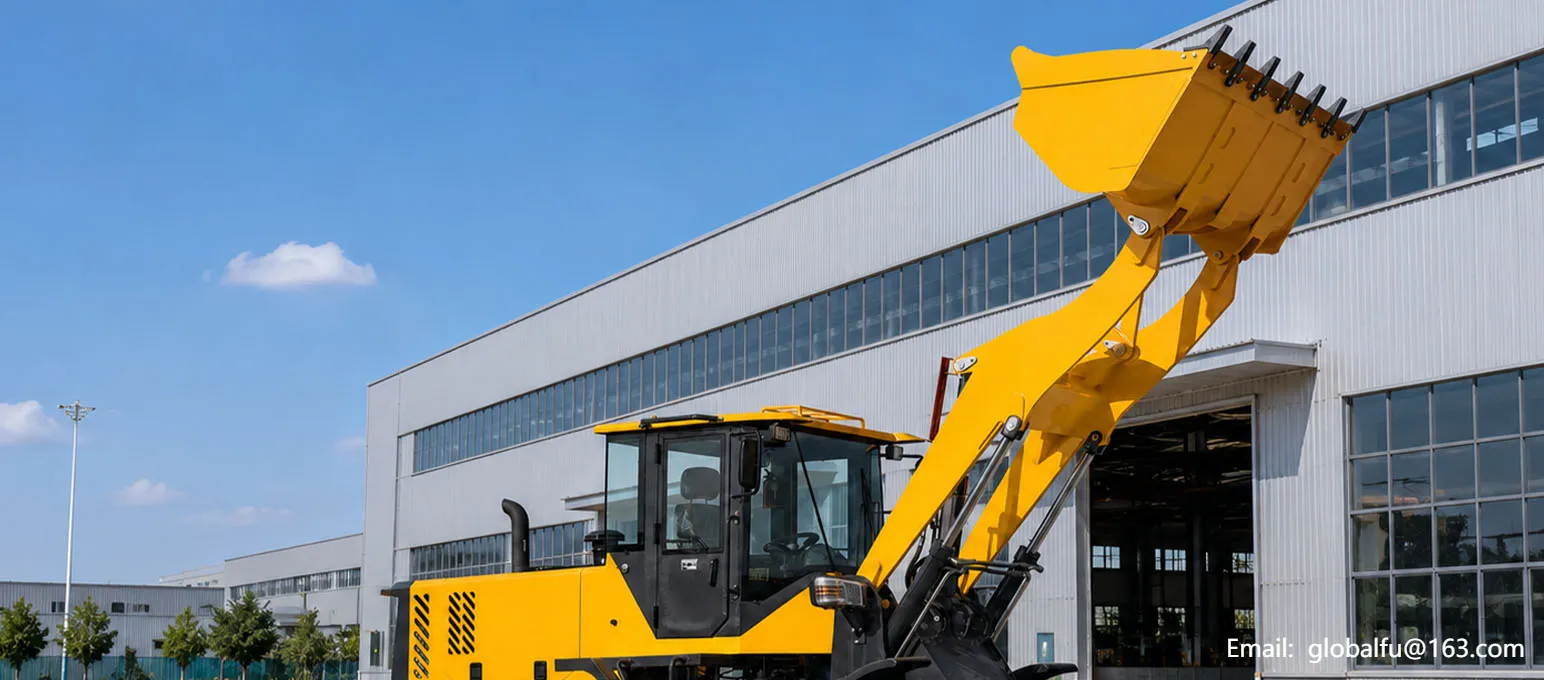

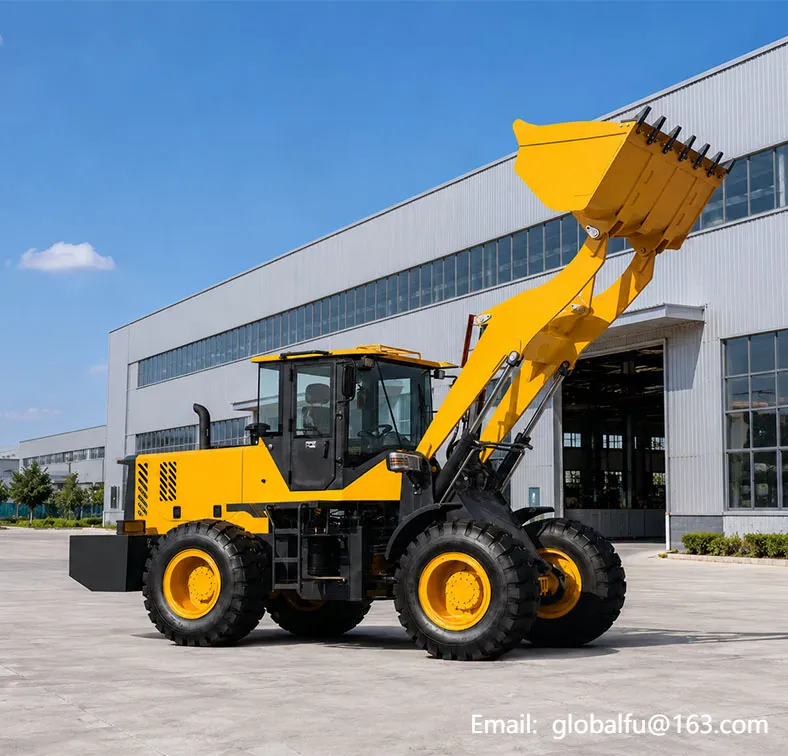

The ZL-948 Wheel Loader for Heavy-Duty Construction Material Handling is designed for loading, transferring, and handling bulk materials in construction sites, sand and gravel yards, farms, warehouses, road construction projects, and other demanding jobsite environments. With a 3000kg rated load, 1.2m³ rated bucket capacity, 8000kg whole machine weight, Yuchai 6015 turbocharged engine, and 92kW rated power, this wheel loader machine is suitable for buyers who need stronger lifting capacity, higher unloading performance, and stable operation for daily construction material handling. The ZL-948 can also be configured with different working devices according to customer requirements, including fork attachments, buckets, hydraulic breaker, side-dump bucket, bale clamp, snow blade, sweeper, quick-change bucket, and deep bucket. For buyers looking for a practical 3 ton wheel loader, 3000kg wheel loader, or multi-purpose construction wheel loader, this model provides a reliable option for heavy-duty jobsite loading and material transfer.
3000kg
1.2m³
Yuchai 6015 Engine, 92kW
Multiple Attachment Options
Get Latest Price
Download PDF Catalog
| Item | Specification |
| Product Name | ZL-948 Wheel Loader for Heavy-Duty Construction Material Handling |
| Product Type | Wheel loader machine / construction wheel loader |
| Model | ZL-948 |
| Rated Load | 3000kg |
| Rated Bucket Capacity | 1.2m³ |
| Weight of Whole Machine | 8000kg |
| Engine Type | Yuchai 6015 turbocharged |
| Rated Power | 92kW |
| Rated Speed | 2400 r/min |
| Unloading Height / Field | 3600 / 4200 / 4500mm |
| Unloading Distance | 1650mm |
| Overall Size | 7000 × 2220 × 3100mm |
| Optional Engine Configurations | Yuchai 6105 turbocharged, Weichai 6105 turbocharged engine |
| Operation Configuration | Electric driving control, hydraulic pilot operation, electronic flameout |
| Transmission Configuration | Split hydraulic torque converter |
| Braking Configuration | Pneumatic-over-hydraulic assisted braking system, caliper disc brake |
| Optional Working Devices | Grass fork, log fork, double-layer fork, marble fork, hydraulic breaker, side-dump bucket, bale clamp, snow blade, sweeper, quick-change bucket, deep bucket |
| Applications | Construction sites, sand and gravel yards, farms, warehouses, road construction, heavy-duty jobsite material handling |
The ZL-948 is designed for high unloading, large breakout force, and automatic bucket leveling after unloading.
After material discharge, the bucket can return to a level position automatically, helping shorten repeated operating cycles and improve overall working efficiency. This is useful for construction sites, material yards, farms, and road projects where frequent loading, unloading, and material stacking are required.
The machine is designed with a front-tilting front frame, supporting longer unloading distance and larger lifting capacity.
This structure helps the loader handle high-position unloading, material stacking, truck loading, and other construction material handling tasks. The confirmed unloading field is 3600/4200/4500mm, and the confirmed unloading distance is 1650mm. Final field wording should be confirmed before publishing the final technical table.
The ZL-918 structure includes an enlarged counterweight to improve stability and support stronger loading performance.
The extended rear frame also helps improve breakout performance and load support. This is useful when the front end loader handles heavier materials, helping reduce the risk of forward tipping or unstable operation during loading work.
The loader is equipped with an enlarged 81L fuel tank, helping extend working endurance and reduce refueling frequency during daily operation.
For construction sites, sand and gravel yards, farms, and road projects, a larger fuel tank can help reduce downtime and support more continuous material handling work.
The loading bucket is built with a strengthened structure for long-term jobsite use. Five reinforced plates are added to the bucket, covering the front and side areas to improve overall durability during material loading.
Two wear-resistant plates are installed at the lower section of the bucket to reduce abrasion from sand, gravel, and other construction materials. For larger models, reinforced ribs can also be added around the bucket structure, making it stronger, more stable, and more durable for heavy-duty operation.
The machine adopts an extended rear frame design, helping improve the loader’s overall breakout force during material handling operations. This optimized rear-frame structure provides better force support and improves overall working stability, especially when the loader is operating under heavier load conditions. It is a practical design feature for buyers who need stronger loading performance and more reliable operation in demanding jobsite environments.
The rear frame is thickened and widened, with a confirmed frame width of 400mm. The upper part of the frame adopts a single-bend structure, while the middle and lower positions are reinforced with plates and ribs to improve frame stability.
The swing bracket uses enlarged and thickened steel plates, with a confirmed steel plate thickness of 30mm and an enlarged swing angle of 7.6°, supporting better adaptability during loader operation.
Our wheel loaders provide reliable material handling solutions for construction sites, sand and gravel yards, farms, warehouses, road projects, and mining areas, with reinforced frames, upgraded buckets, stable axles, and customizable configurations.
