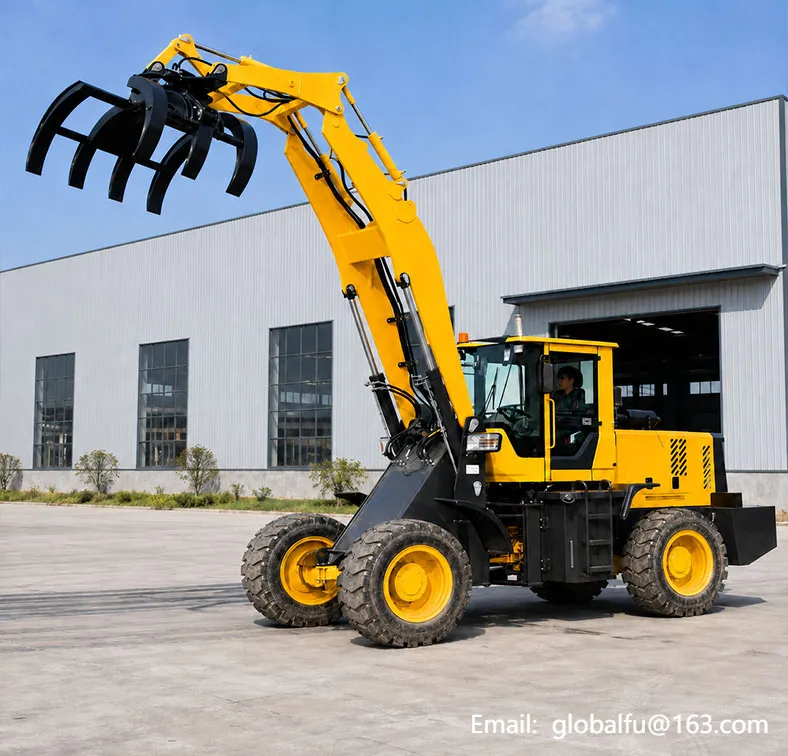

The ZL-932 Wheel Loader for Construction Material Handling is designed for loading, transferring, and handling materials in construction sites, sand and gravel yards, farms, warehouses, road construction projects, and other jobsite environments. With a 1600kg rated load, 1m³ rated bucket capacity, 3500kg whole machine weight, 490 / 490 turbocharged engine option, and 37/55kW rated power, this wheel loader machine provides practical loading capacity for sand, soil, gravel, farm materials, construction materials, and general bulk material handling. The ZL-932 can also be configured with different working devices according to jobsite needs, including fork attachments, buckets, hydraulic breaker, side-dump bucket, bale clamp, snow blade, sweeper, quick-change bucket, and deep bucket. For buyers looking for a practical 1.6 ton wheel loader, 1m³ bucket wheel loader, or multi-purpose construction wheel loader, this model provides a flexible equipment option for daily jobsite work.
1600kg
1m³
37/55kW
Forks, sweeper, snow blade, breaker
Get Latest Price
Download PDF Catalog
| Item | Specification |
|---|---|
| Product Name | ZL-932 Wheel Loader for Construction Material Handling |
| Product Type | Wheel loader machine / construction wheel loader |
| Model | ZL-932 |
| Rated Load | 1600kg |
| Rated Bucket Capacity | 1m³ |
| Weight of Whole Machine | 3500kg, empty configuration weight |
| Engine Type | 490 / 490 turbocharged |
| Rated Power | 37/55kW |
| Rated Speed | 2400 r/min |
| Unloading Height / Field | 3200mm |
| Unloading Distance | 570mm |
| Overall Size | 5630 × 1900 × 2750mm |

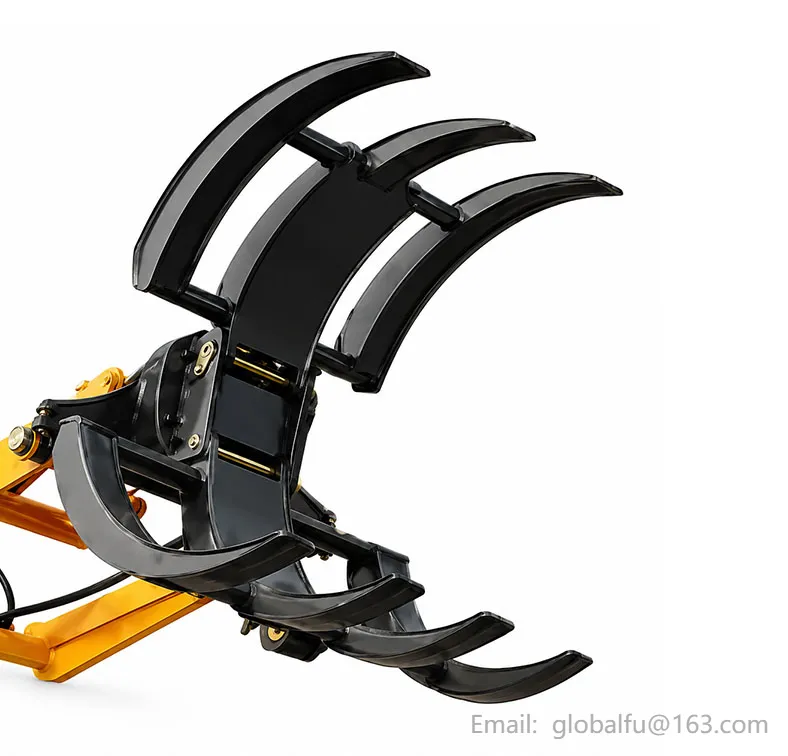

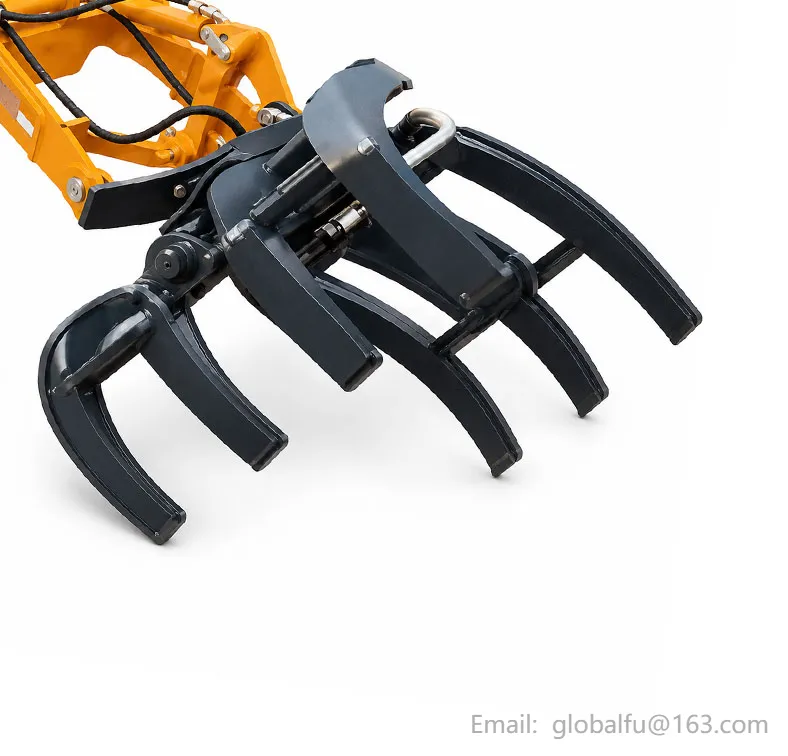

| Optional Working Devices | Grass fork, log fork, double-layer fork, marble fork, hydraulic breaker, side-dump bucket, bale clamp, snow blade, sweeper, quick-change bucket, deep bucket |
| Special Function Option | 360° rotating fork |
| Applications | Construction sites, sand and gravel yards, farms, warehouses, road construction, jobsite material handling |
The ZL-932 uses a three-section articulation structure to support better frame stability during loading, steering, and material handling.
The articulation plate and tiger-head cover plate use an embedded whole-steel-plate structure with a mortise-and-tenon style process. This design helps strengthen the connection area and improve durability during repeated jobsite movement.
The machine uses an integrated cast heavy-duty axle structure to support the loading performance of the whole wheel loader.
This axle design is intended to better handle complex road conditions, reduce damage caused by rough ground impact, and help lower maintenance pressure compared with ordinary cast axle structures.
The ZL-932 structure includes an enlarged counterweight to improve stability and support stronger loading performance.
The extended rear frame also helps improve breakout performance and load support. This is useful when the front end loader handles heavier materials, helping reduce the risk of forward tipping or unstable operation during loading work.
The loader is equipped with an enlarged 81L fuel tank, helping extend working endurance and reduce refueling frequency during daily operation.
For construction sites, sand and gravel yards, farms, and road projects, a larger fuel tank can help reduce downtime and support more continuous material handling work.
The loading bucket is built with a strengthened structure for long-term jobsite use. Five reinforced plates are added to the bucket, covering the front and side areas to improve overall durability during material loading.
Two wear-resistant plates are installed at the lower section of the bucket to reduce abrasion from sand, gravel, and other construction materials. For larger models, reinforced ribs can also be added around the bucket structure, making it stronger, more stable, and more durable for heavy-duty operation.
The machine adopts an extended rear frame design, helping improve the loader’s overall breakout force during material handling operations. This optimized rear-frame structure provides better force support and improves overall working stability, especially when the loader is operating under heavier load conditions. It is a practical design feature for buyers who need stronger loading performance and more reliable operation in demanding jobsite environments.
The rear frame is thickened and widened, with a confirmed frame width of 400mm. The upper part of the frame adopts a single-bend structure, while the middle and lower positions are reinforced with plates and ribs to improve frame stability.
The swing bracket uses enlarged and thickened steel plates, with a confirmed steel plate thickness of 30mm and an enlarged swing angle of 7.6°, supporting better adaptability during loader operation.
Our wheel loaders provide reliable material handling solutions for construction sites, sand and gravel yards, farms, warehouses, road projects, and mining areas, with reinforced frames, upgraded buckets, stable axles, and customizable configurations.
