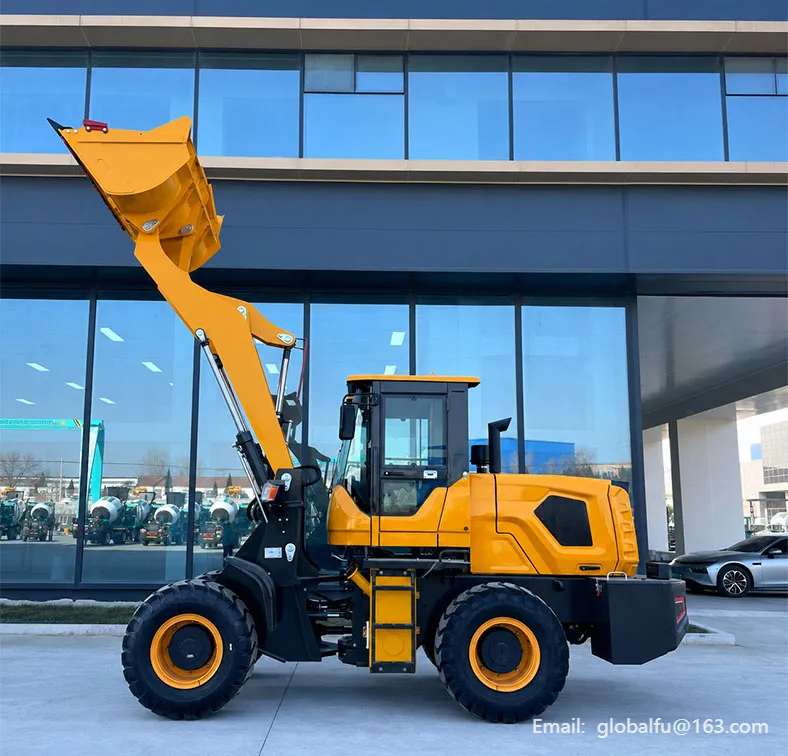

The ZL-940 Wheel Loader for Construction Material Handling is designed for loading, transferring, and handling materials in construction sites, sand and gravel yards, farms, warehouses, road construction projects, and other jobsite environments. With a 2000kg rated load, 1.2m³ rated bucket capacity, 5100kg empty configuration weight, 4102 turbocharged engine, and 76kW rated power, this wheel loader machine provides stronger loading capacity for sand, soil, gravel, farm materials, construction materials, and other bulk material handling tasks. The ZL-940 is also designed for multi-purpose operation. It can be configured with different working devices according to customer requirements, including fork attachments, buckets, hydraulic breaker, side-dump bucket, bale clamp, snow blade, sweeper, quick-change bucket, and deep bucket. For buyers looking for a practical 2 ton wheel loader, 1.2m³ bucket wheel loader, or multi-purpose construction wheel loader, this model provides a reliable option for daily jobsite material handling.
2000kg
1.2m³
4102 Turbocharged Engine, 76kW
Multiple Attachment Options
Get Latest Price
Download PDF Catalog
| Item | Specification |
| Product Name | ZL-940 Wheel Loader for Construction Material Handling |
| Product Type | Wheel loader machine / construction wheel loader |
| Model | ZL-940 |
| Rated Load | 2000kg |
| Rated Bucket Capacity | 1.2m³ |
| Weight of Whole Machine | 5100kg, empty configuration weight |
| Engine Type | 4102 turbocharged |
| Rated Power | 76kW |
| Rated Speed | 2400 r/min |
| Unloading Height / Field | 3600mm |
| Unloading Distance | 750mm |
| Overall Size | 6300 × 2080 × 2950mm |
| Optional Engine Configurations | Yuchai 4105 turbocharged, Yuchai 4108 turbocharged, Dongfanghong 4108 turbocharged, Yunnei 4108 turbocharged |
| Operation Configuration | Electric driving control, hydraulic pilot operation, electronic flameout |
| Bucket Structure | Reinforced engineering bucket, anti-overflow plate, guide plate, bottom reinforced lining plate, secondary reinforcement plate |
| Transmission Configuration | Split hydraulic torque converter |
| Braking Configuration | Pneumatic-over-hydraulic assisted braking, caliper disc brake |
| Optional Working Devices | Grass fork, log fork, double-layer fork, marble fork, hydraulic breaker, side-dump bucket, bale clamp, snow blade, sweeper, quick-change bucket, deep bucket |
| Applications | Construction sites, sand and gravel yards, farms, warehouses, road construction, jobsite material handling |

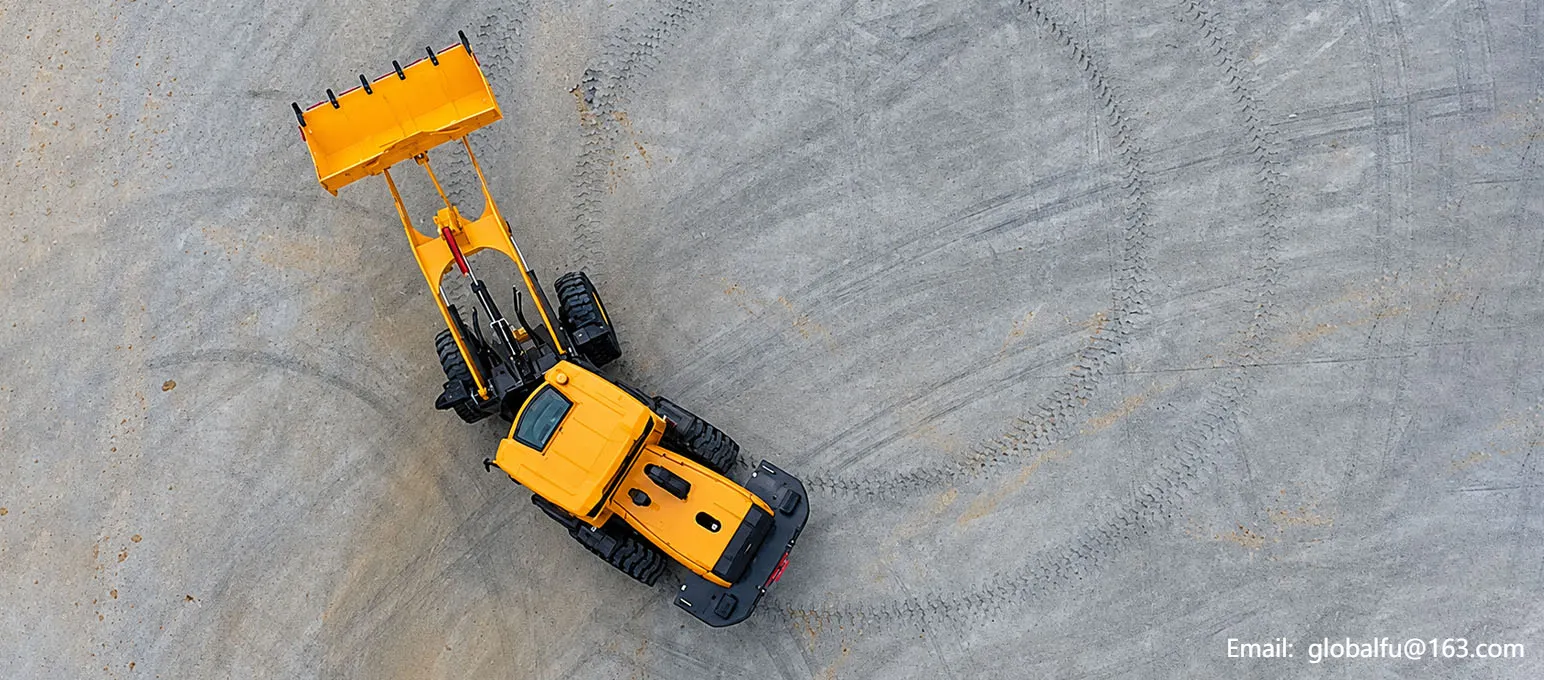

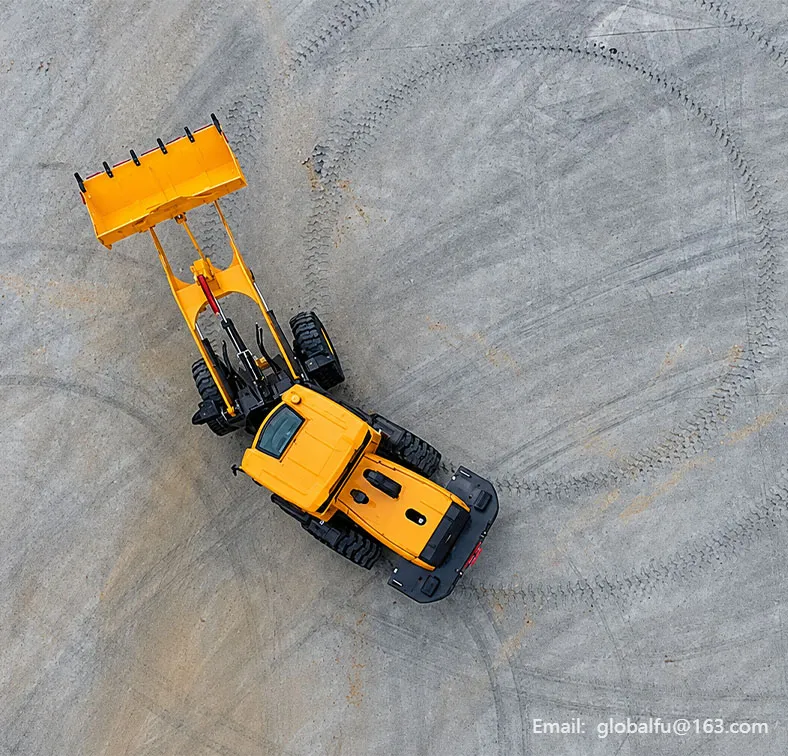

The ZL-940 adopts an equal wheelbase design, supporting a smaller turning radius and more stable movement during jobsite operation.
The rear counterweight is extended to improve breakout force and load capacity. This design helps the loader remain more stable when handling heavier materials and supports stronger lifting and loading performance in construction sites, yards, farms, and road project environments.

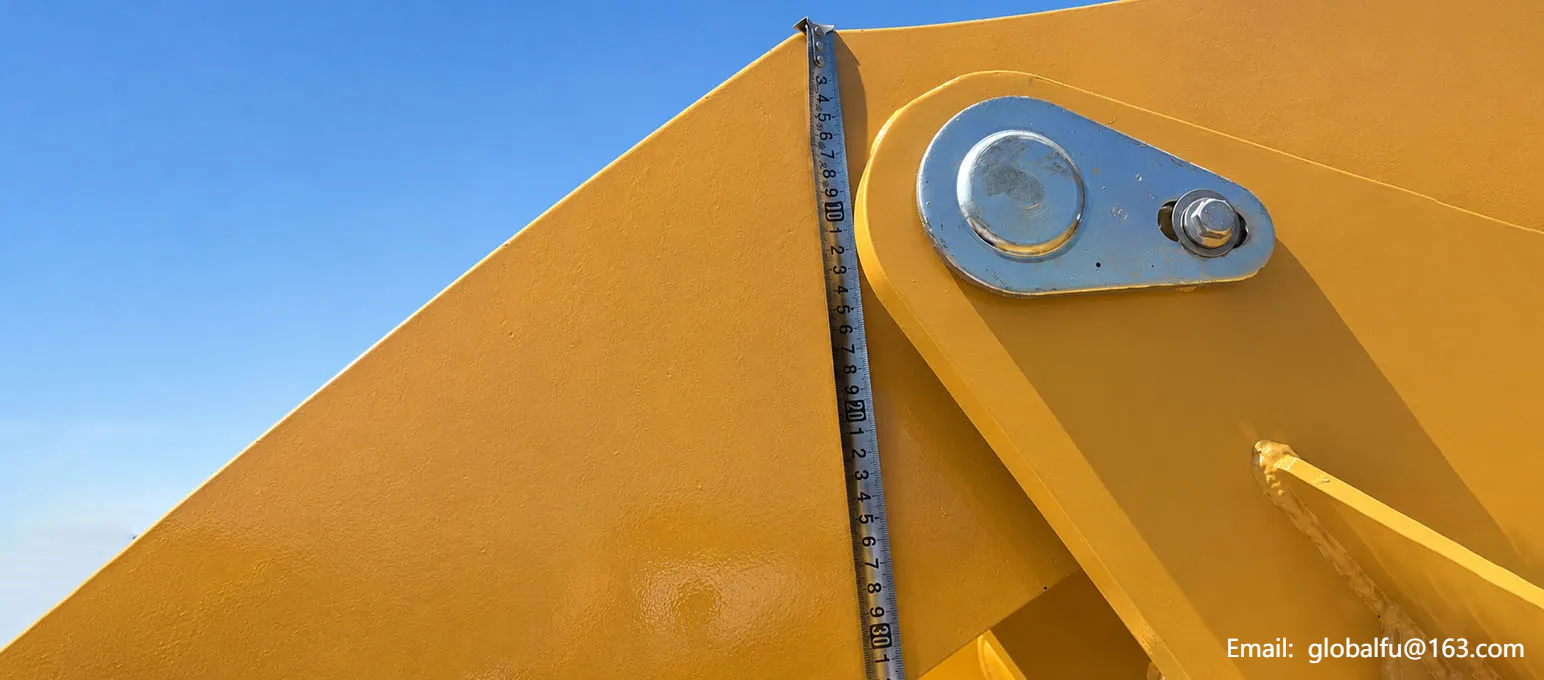

The provided product information highlights a fully welded large rocker arm with an internal reinforcement plate.
The pin shaft structure includes an oil-free self-lubricating bearing inside the pin shaft, helping extend the maintenance cycle and support more efficient daily maintenance. This component design is useful for buyers who need a wheel loader machine with stronger working parts and easier long-term upkeep.
The machine uses an integrated cast heavy-duty axle structure to support the loading performance of the whole wheel loader.
This axle design is intended to better handle complex road conditions, reduce damage caused by rough ground impact, and help lower maintenance pressure compared with ordinary cast axle structures.
The ZL-938 structure includes an enlarged counterweight to improve stability and support stronger loading performance.
The extended rear frame also helps improve breakout performance and load support. This is useful when the front end loader handles heavier materials, helping reduce the risk of forward tipping or unstable operation during loading work.
The loader is equipped with an enlarged 81L fuel tank, helping extend working endurance and reduce refueling frequency during daily operation.
For construction sites, sand and gravel yards, farms, and road projects, a larger fuel tank can help reduce downtime and support more continuous material handling work.

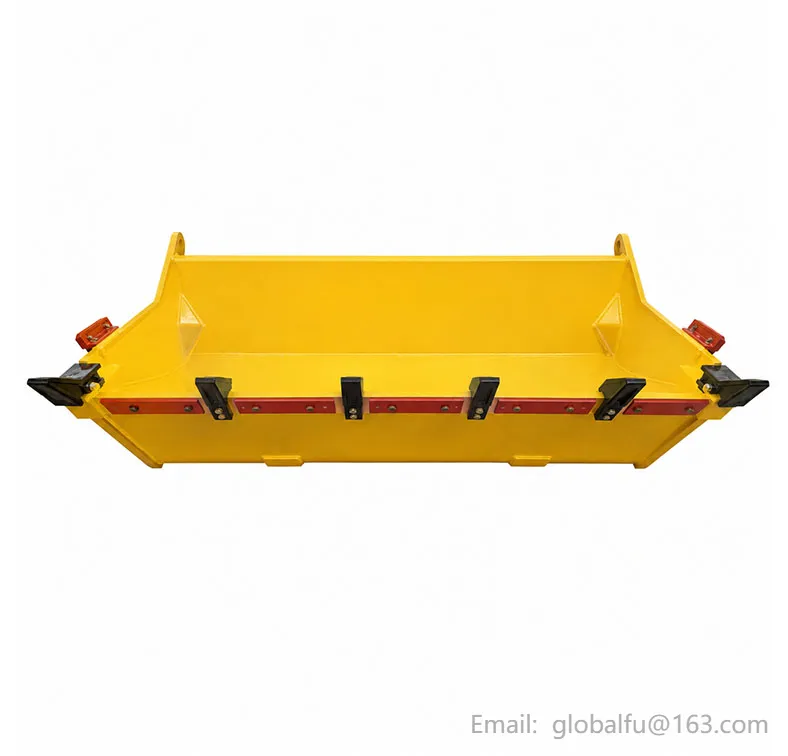

The loading bucket is built with a strengthened structure for long-term jobsite use. Five reinforced plates are added to the bucket, covering the front and side areas to improve overall durability during material loading.
Two wear-resistant plates are installed at the lower section of the bucket to reduce abrasion from sand, gravel, and other construction materials. For larger models, reinforced ribs can also be added around the bucket structure, making it stronger, more stable, and more durable for heavy-duty operation.
The machine adopts an extended rear frame design, helping improve the loader’s overall breakout force during material handling operations. This optimized rear-frame structure provides better force support and improves overall working stability, especially when the loader is operating under heavier load conditions. It is a practical design feature for buyers who need stronger loading performance and more reliable operation in demanding jobsite environments.
The rear frame is thickened and widened, with a confirmed frame width of 400mm. The upper part of the frame adopts a single-bend structure, while the middle and lower positions are reinforced with plates and ribs to improve frame stability.
The swing bracket uses enlarged and thickened steel plates, with a confirmed steel plate thickness of 30mm and an enlarged swing angle of 7.6°, supporting better adaptability during loader operation.
Our wheel loaders provide reliable material handling solutions for construction sites, sand and gravel yards, farms, warehouses, road projects, and mining areas, with reinforced frames, upgraded buckets, stable axles, and customizable configurations.
