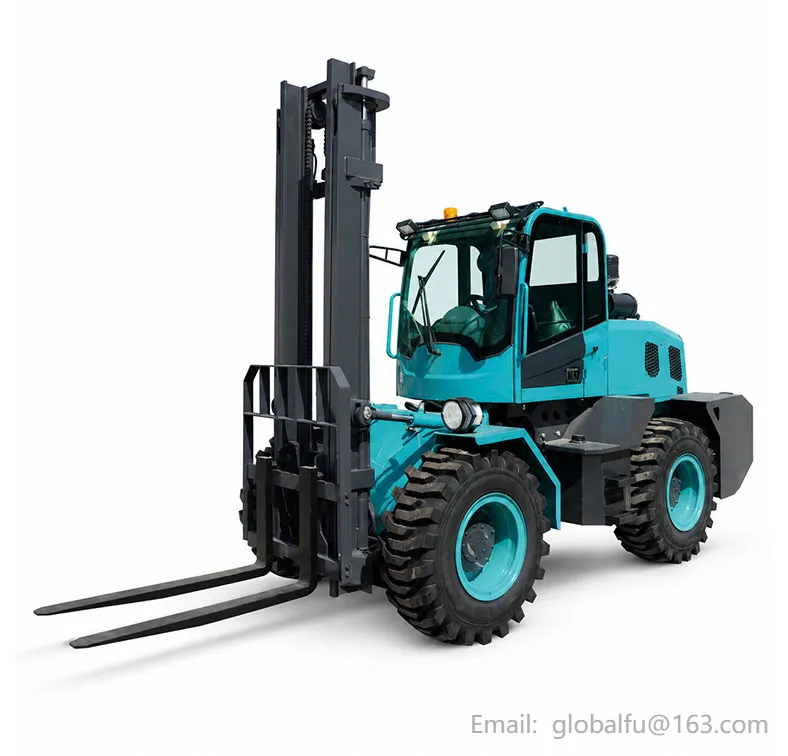

The CPC40 Rough Terrain Forklift is designed for outdoor material handling on construction sites, photovoltaic power stations, brick factories, timber plants, stone yards, farms, agricultural product processing sites, equipment rental stations, grain stations, agricultural cooperatives, waste treatment stations, and other rough working environments. With a CPC-40 model, 4300 × 2000 × 2650mm overall dimension, 5500kg vehicle mass, 60 / 36.8kW rated power, 16/70-20 tire type, 3900mm minimum turning radius, and 35km/h maximum speed, this rough terrain forklift truck provides practical mobility and handling support for jobsite loading, transferring, and multi-purpose material handling. The CPC40 can also be matched with optional working attachments according to different site needs. For buyers comparing an all terrain forklift, off road forklift, or construction forklift for rough ground operation, this model provides a compact equipment option with confirmed technical parameters for project selection and quotation preparation.
CPC-40
60 / 36.8kW
5500kg
35km/h Speed, 3900mm Turning Radius
Get Latest Price
Download PDF Catalog
| Item | Specification |
| Product Name | CPC40 Rough Terrain Forklift |
| Product Type | Rough Terrain Forklift Truck / Off Road Forklift |
| Model | CPC-40 |
| Overall Dimension | 4300 × 2000 × 2650mm |
| Vehicle Mass | 5500kg |
| Engine Model | FAW Xichai 4102 Naturally Aspirated Common-Rail Engine, China III / China IV Optional Configuration |
| Rated Power | 60 / 36.8kW |
| Tire Type | 16/70-20 |
| Minimum Turning Radius | 3900mm |
| Wheelbase | 2320mm |
| Maximum Speed | 35km/h |
| Gantry Unloading Height | 4–6m |
| Application | Construction Sites, Photovoltaic Power Stations, Brick Factories, Timber Plants, Stone Yards, Farms, Agricultural Product Processing, Equipment Rental Stations, Grain Stations, Agricultural Cooperatives, Waste Treatment Stations, and Outdoor Material Handling |
The CPC-40 parameter table lists the engine model as FAW Xichai 4102 naturally aspirated common-rail engine, China III / China IV optional configuration, with 60 / 36.8kW rated power.
This engine configuration supports driving, lifting, and material handling operations in construction sites, farms, stone yards, timber plants, rental yards, and other outdoor working environments. Final engine wording, fuel type, emission version, and market configuration should be confirmed before order.

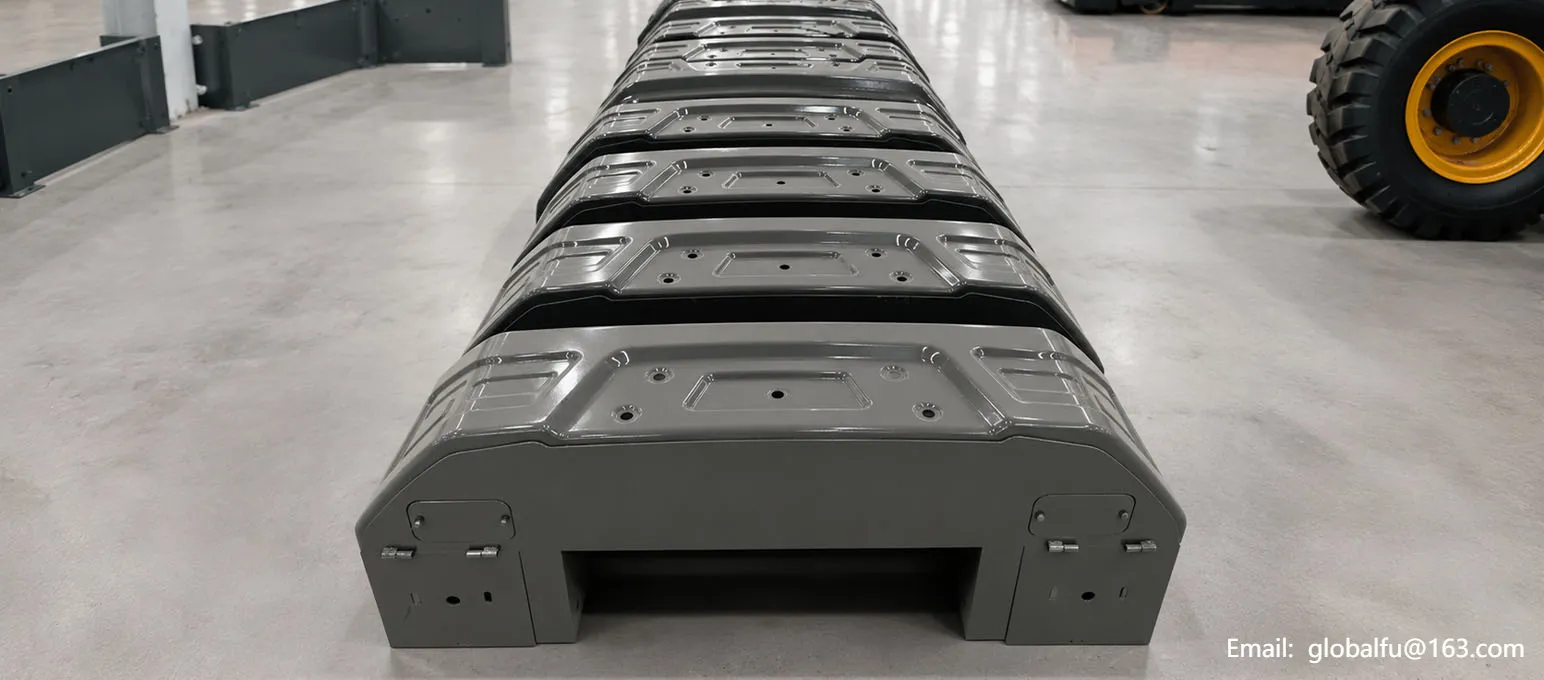

The product material highlights thickened structural components for higher overall body strength.
A reinforced structure helps the forklift handle frequent site use, rough ground movement, vibration, impact, and demanding material handling conditions. This is useful for construction sites, stone yards, farms, waste treatment stations, equipment rental yards, and other high-frequency working environments.

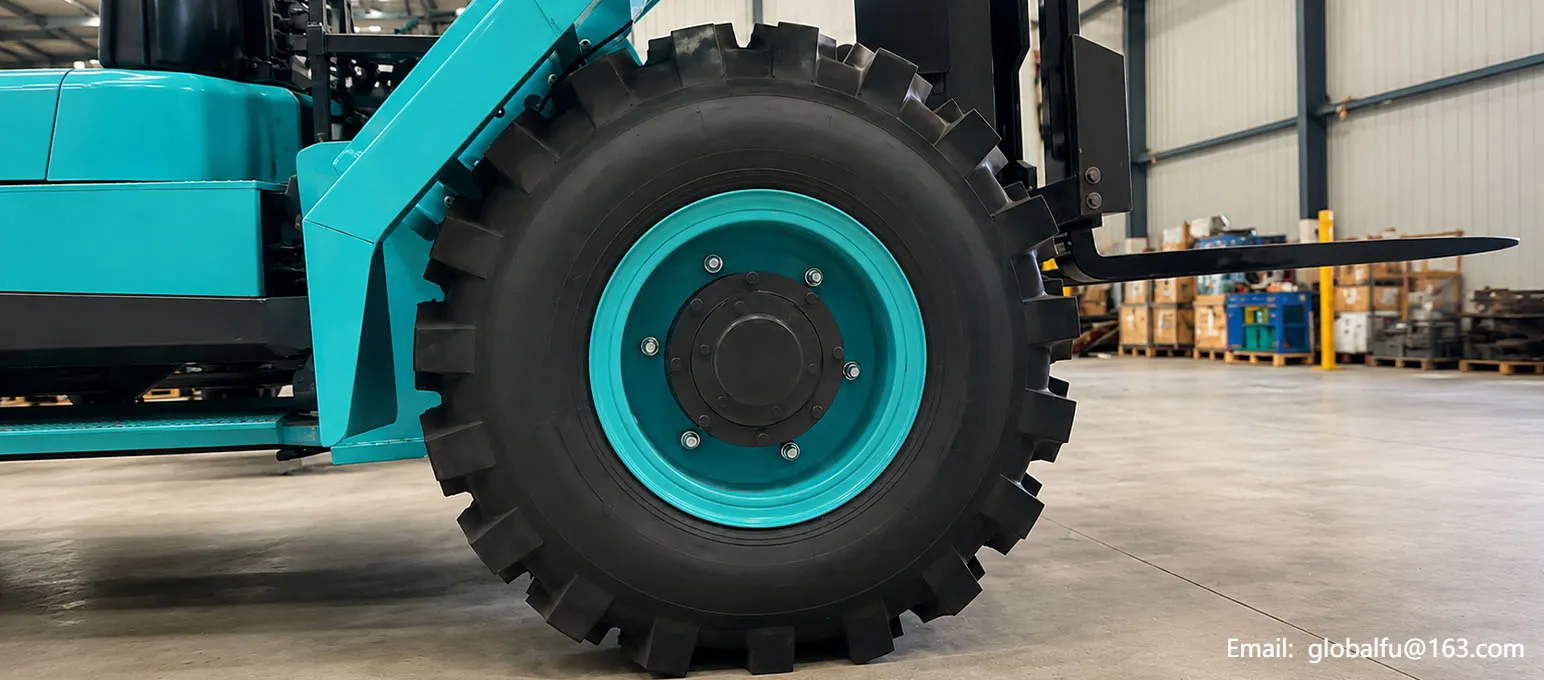

Large tires help the forklift move more effectively on rough ground, muddy areas, gravel yards, farms, mining areas, and outdoor construction sites. For buyers comparing an all terrain forklift or off road forklift, tire configuration is an important factor for jobsite mobility and daily operating stability.
The product material mentions a reinforced double-brake reduction axle structure.
This axle configuration helps improve torque output and supports stronger driving force in heavy-load and climbing conditions. It also supports better adaptability on uneven roads, rough sites, and mixed working environments. Final axle configuration, braking structure, and technical details should be confirmed before quotation.

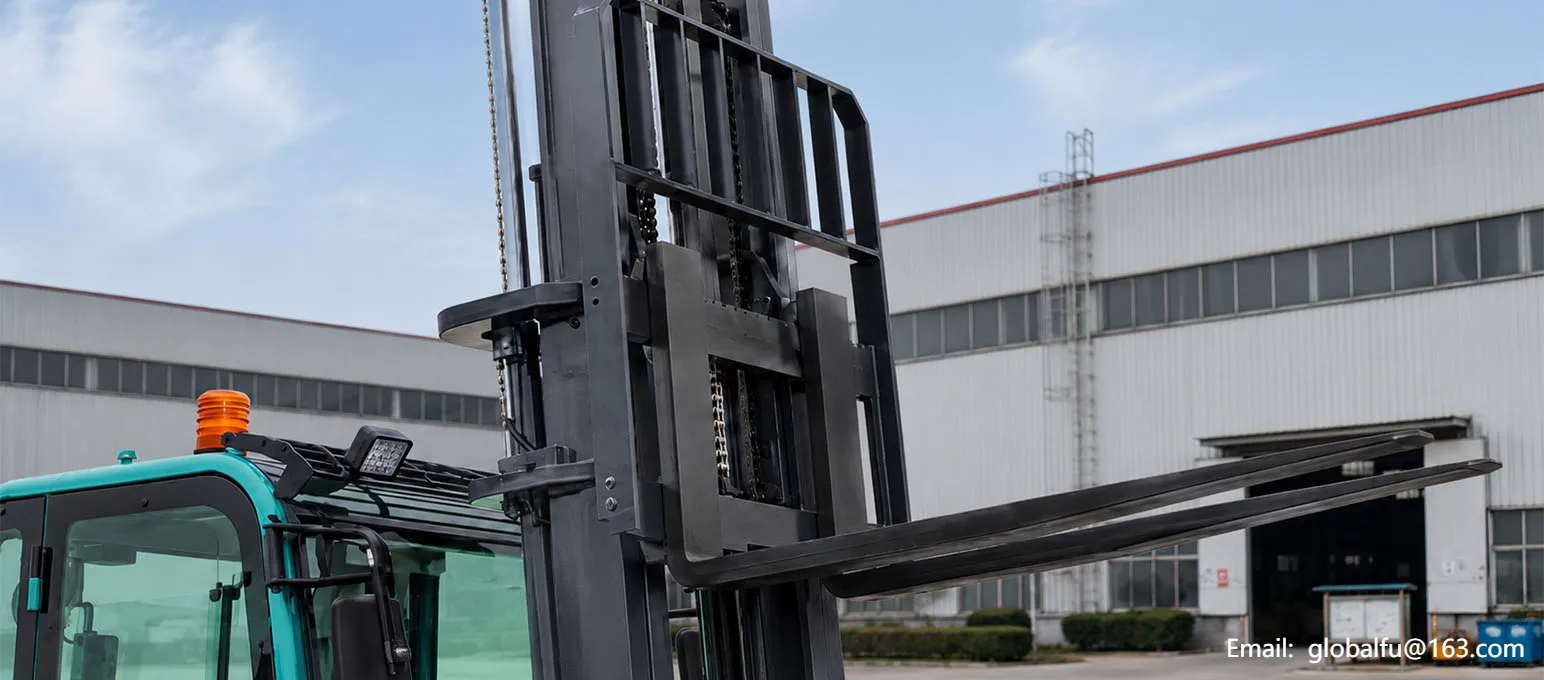

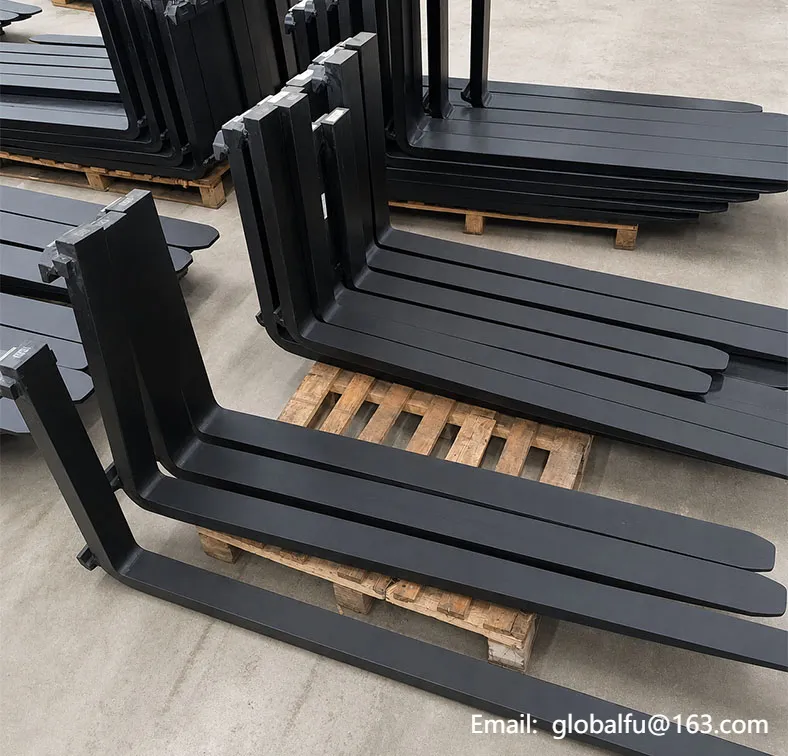

The CPC40 is configured with a front fork mast and fork handling structure for loading, lifting, and transferring materials.
The provided parameter table lists a gantry unloading height of 4–6m, giving buyers a reference for lifting and unloading requirements. Final mast type, fork size, load center, and rated lifting capacity should be confirmed according to actual working conditions.

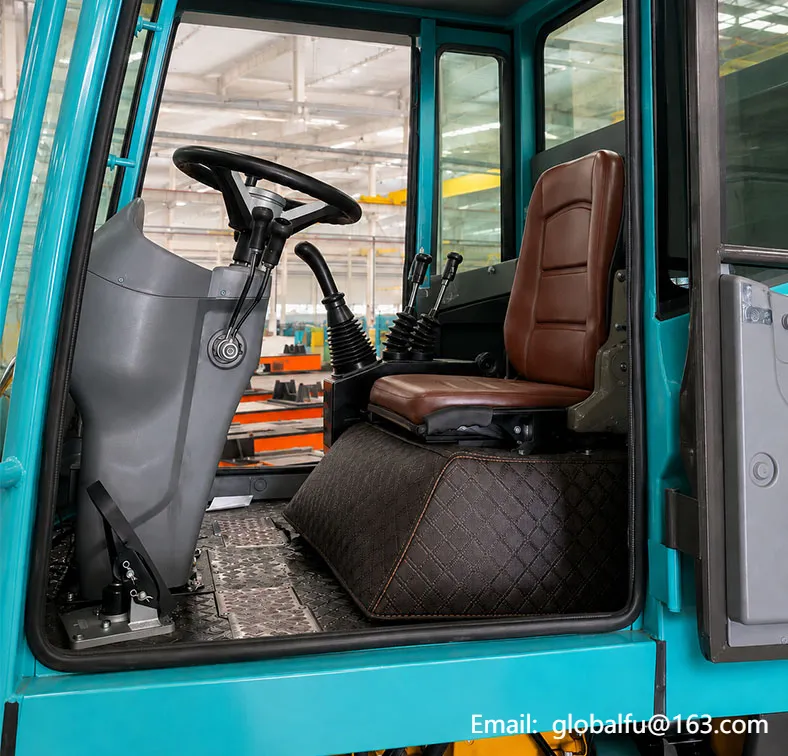

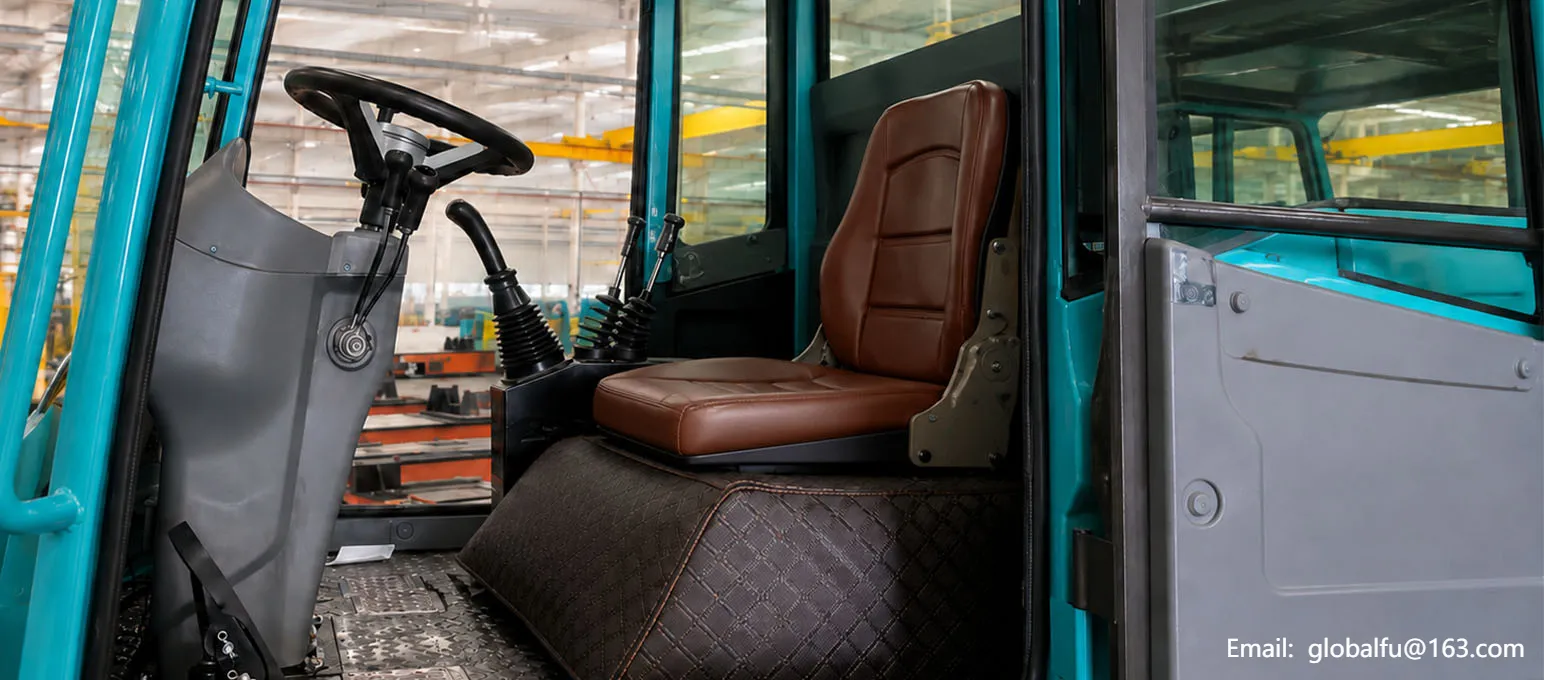

The product image shows an enclosed operator cab with wide front visibility around the mast and fork area.
A cab-style layout helps the operator work with better visibility, easier control access, and improved comfort during material handling operations. This is useful for longer working hours in outdoor construction, farm, storage yard, and mining site environments.

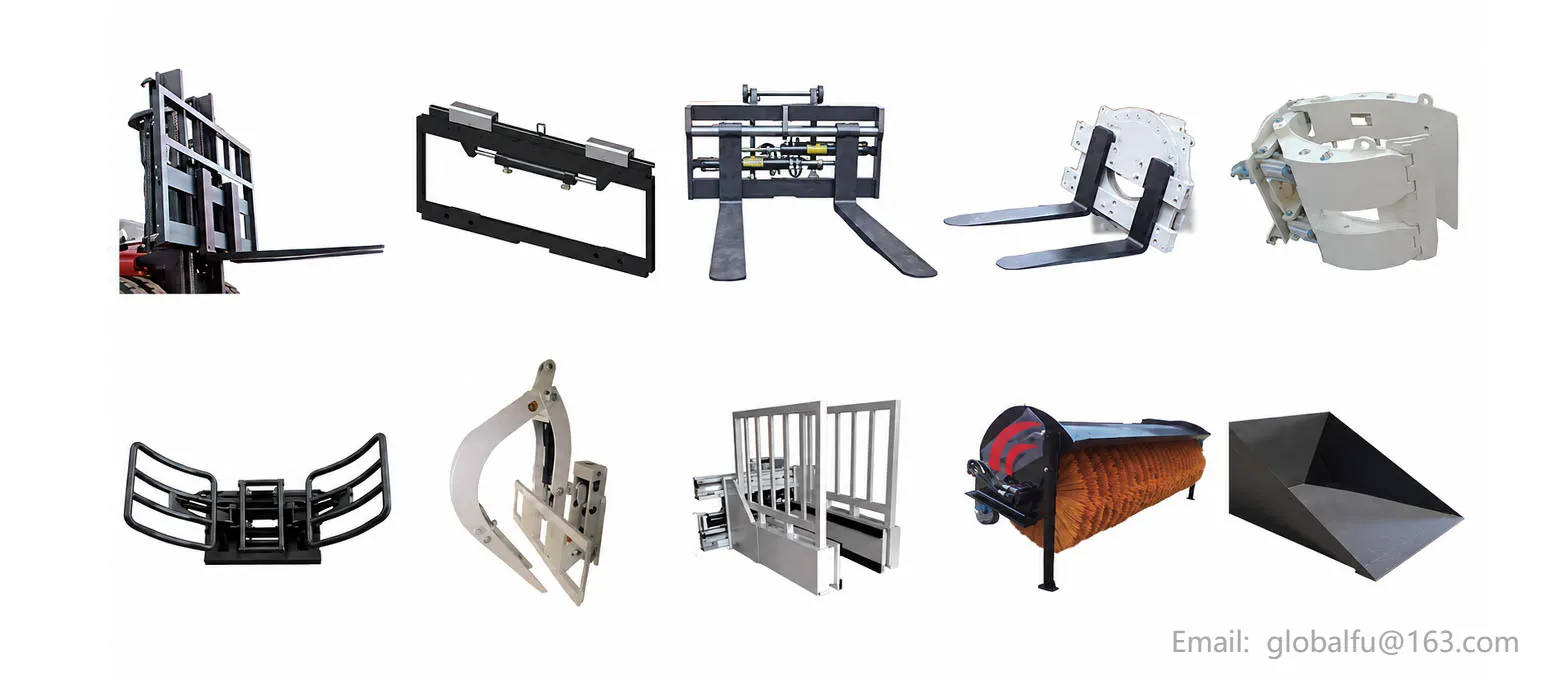

The CPC40 can be matched with different working attachments for multiple site tasks.
Optional attachment use can extend the forklift beyond standard fork handling and support different construction, agricultural, yard, rental, waste handling, and material transfer applications. Final attachment type, installation method, and load suitability should be confirmed before quotation.
