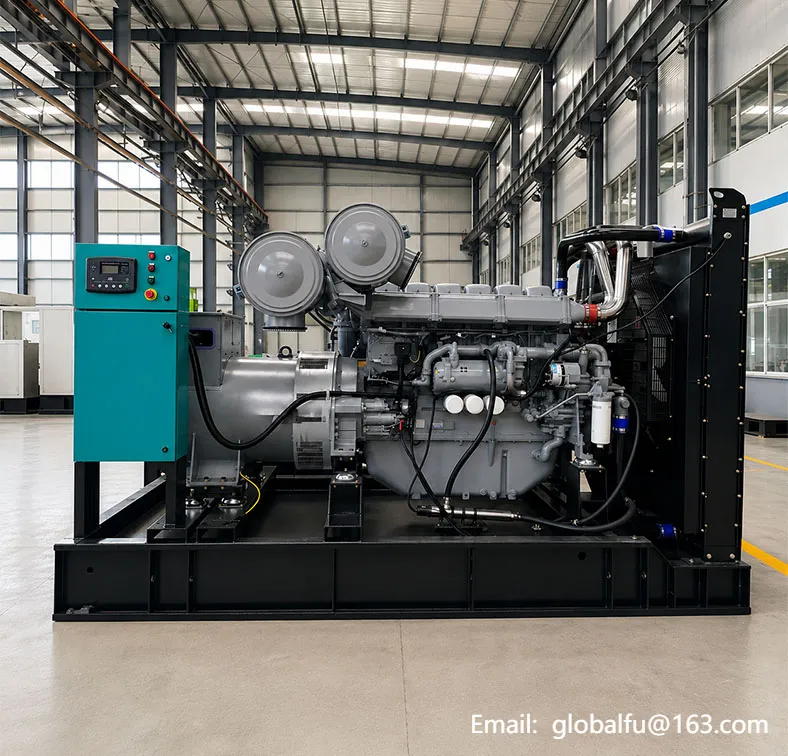

The 50Hz Perkins Diesel Generator Set is powered by Perkins series diesel engines and designed for stable power supply in hotels, schools, factories, ship and port projects, mines, medical facilities, construction sites, industrial projects, farms, temporary construction projects, and emergency power applications. This 50Hz Perkins generator set series supports 400V, 6kV–10.5kV, 3P 4W configurations according to the provided model table. The series covers 8kW / 10kVA to 1800kW / 2250kVA prime power and 8.8kW / 11kVA to 2000kW / 2500kVA standby power, helping buyers select suitable models for different power requirements. According to the provided material, this Perkins diesel genset series uses Perkins series diesel engines, European and American technology, and high-strength wear-resistant materials. It is designed for excellent performance, stable operation, low vibration, low fuel consumption rate, low oil consumption rate, long operation life, long overhaul time, and low noise.
50Hz, 400V
8–1800kW Prime Power
Perkins Diesel Engine
Stable, Low Noise & Fuel-Efficient
Get Latest Price
Download PDF Catalog
| Genset Model | Standby Power KW/KVA | Prime Power KW/KVA | Engine Model | No. of Cylinder | Bore×Stroke mm | Overall Size mm | Gross Weight kg |
| SP11GF/K/S | 8.8/11 | 8/10 | 403D-11G | 3.L | 77×81 | 1150×550×1000 | 385 |
| SP14GF/K/S | 11/14 | 10/12.5 | 403A-15G1 | 3.L | 84×90 | 1150×550×1000 | 405 |
| SP14GF/K/S | 14/17 | 12/15 | 403A-15G2 | 3.L | 84×90 | 1150×550×1000 | 405 |
| SP22GF/K/S | 18/22 | 16/20 | 404D-22G | 4.L | 84×100 | 1300×550×1050 | 480 |
| SP28GF/K/S | 22/28 | 20/25 | 1103A-33G | 3.L | 105×127 | 1550×720×1150 | 680 |
| SP33GF/K/S | 27/33 | 24/30 | 1103A-33G | 3.L | 105×127 | 1550×720×1150 | 680 |
| SP42GF/K/S | 33/42 | 30/37.5 | 1103A-33TG1 | 3.L | 105×127 | 1550×720×1150 | 750 |
| SP55GF/K/S | 44/55 | 40/50 | 1103A-33TG2 | 3.L | 105×127 | 1700×760×1170 | 800 |
| SP70GF/A/S | 56/70 | 50/62.5 | 1103A-33TG2 | 3.L | 105×127 | 1700×760×1170 | 830 |
| SP70GF/K/S | 56/70 | 50/62.5 | 1104A-44TG1 | 4.L | 105×127 | 1800×760×1200 | 930 |
| SP85GF/K/S | 68/85 | 60/75 | 1104A-44TG2 | 4.L | 105×127 | 1800×760×1200 | 1000 |
| SP110GF/K/S | 88/110 | 80/100 | 1104C-44TAG2 | 4.L | 105×127 | 1900×760×1300 | 1050 |
| SP140GF/K/S | 112/140 | 100/125 | 1106A-70TG1 | 6.L | 105×135 | 2250×880×1400 | 1500 |
| SP165GF/K/S | 132/165 | 120/150 | 1106A-70TAG2 | 6.L | 105×135 | 2250×880×1400 | 1600 |
| SP200GF/K/S | 160/200 | 150/187.5 | 1106A-70TAG3 | 6.L | 105×135 | 2350×880×1450 | 1700 |
| SP200GFA/K/S | 160/200 | 150/187.5 | 1106A-70TAG4 | 6.L | 105×135 | 2350×880×1450 | 1700 |
| SP220GF/K/S | 176/220 | 160/200 | 1106A-70TAG4 | 6.L | 105×135 | 2350×880×1450 | 1750 |
| SP275GF/K/S | 220/275 | 200/250 | 1206A-E70TTAG3 | 6.L | 105×135 | 3520×1200×1950 | 3000 |
| SP350GF/K/S | 280/350 | 250/312.5 | 1706A-E93TAG1 | 6.L | 114×149 | 2450×1080×1650 | 1850 |
| SP400GF/K/S | 320/400 | 300/375 | 2206C-E13TAG3 | 6.L | 130×157 | 3200×1150×2050 | 2950 |
| SP450GF/K/S | 360/450 | 320/400 | 2206C-E13TAG3 | 6.L | 130×157 | 3200×1150×2050 | 2950 |
| SP500GF/K/S | 400/500 | 360/450 | 2506C-E15TAG1 | 6.L | 137×171 | 3500×1150×2050 | 3650 |
| SP550GF/K/S | 440/550 | 400/500 | 2506C-E15TAG2 | 6.L | 137×171 | 3500×1150×2050 | 3650 |
| SP625GF/K/S | 500/625 | 450/562.5 | 2806C-E18TAG1A | 6.L | 145×183 | 3400×1600×2050 | 4600 |
| SP700GF/K/S | 560/700 | 500/625 | 2806A-E18TAG2 | 6.L | 145×183 | 3400×1600×2050 | 4600 |
| SP825GF/K/S | 660/825 | 600/750 | 4006-23TAG2A | 6.L | 160×190 | 3750×1680×2405 | 5840 |
| SP880GF/K/S | 704/880 | 640/800 | 4006-23TAG3A | 6.L | 160×190 | 3750×1680×2405 | 5840 |
| SP1000GF/K/S | 800/1000 | 720/900 | 4008TAG1A | 8.L | 160×190 | 4700×2100×2405 | 7800 |
| SP1100GF/K/S | 880/1100 | 800/1000 | 4008TAG2 | 8.L | 160×190 | 4700×2010×2405 | 7800 |
| SP1250GF/K/S | 1000/1250 | 900/1125 | 4008-30TAG3 | 12.V | 160×190 | 4700×2010×2405 | 8000 |
| SP1375GFK/S | 1100/1375 | 1000/1250 | 4012-46TWG2A | 12.V | 160×190 | 4950×2100×2435 | 11000 |
| SP1650GFK | 1320/1650 | 1200/1500 | 4012-46TAG2A | 12.V | 160×190 | 5600×2200×2450 | 11000 |
| SP1800GFK | 1440/1800 | 1320/1650 | 4012-46TAG3A | 12.V | 160×190 | 5600×2200×2450 | 11500 |
| SP2100GFK | 1680/2100 | 1500/1875 | 4016TAG1A | 16.V | 160×190 | 5900×2200×2721 | 13200 |
| SP2200GFK | 1760/2200 | 1600/2000 | 4016TAG2A | 16.V | 160×190 | 5900×2200×2721 | 13800 |
| SP2500GFK | 2000/2500 | 1800/2250 | 4016-61TRG3 | 16.V | 160×190 | 5900×2200×2721 | 14200 |

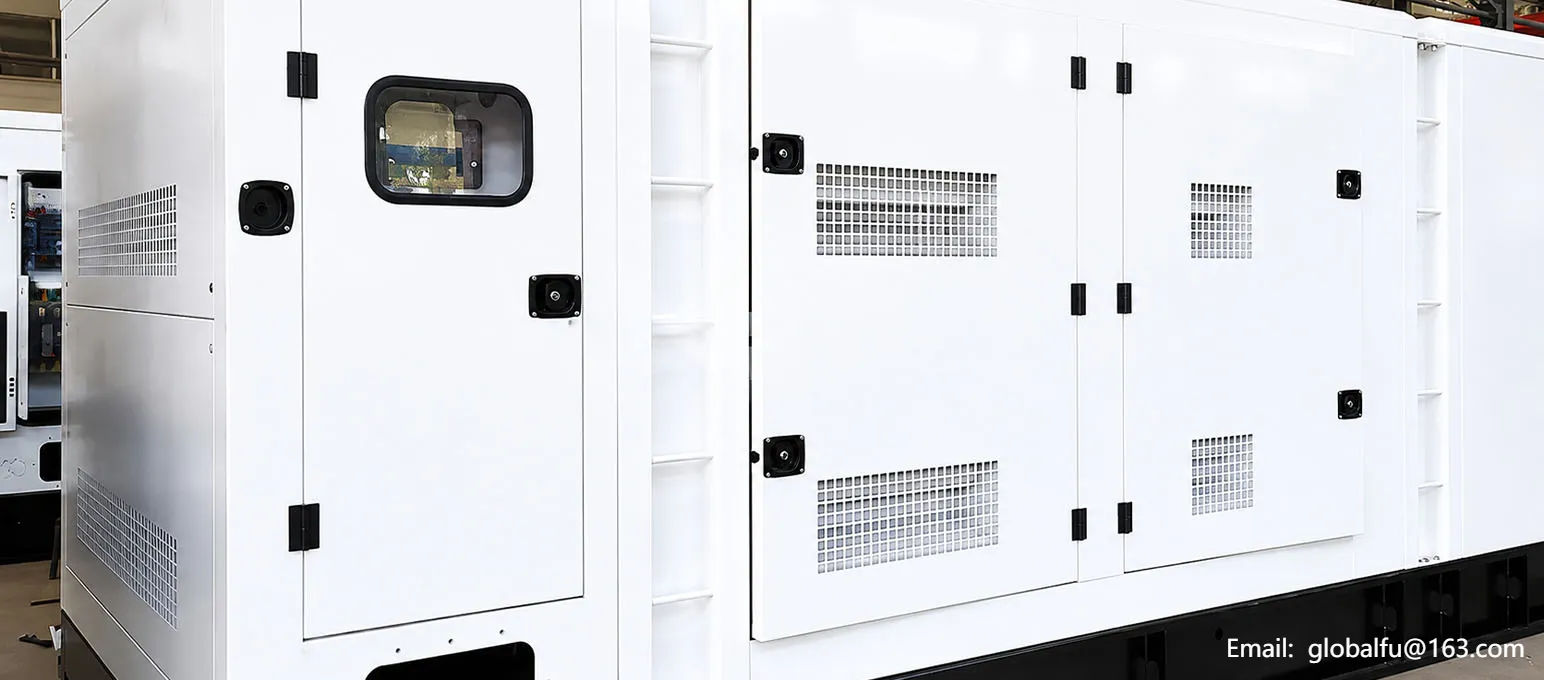

The generator set is described as having low vibration and low noise characteristics.
This makes the series suitable for application scenarios where stable and quieter operation is important, such as hotels, schools, medical facilities, factories, mines, and project power sites. Final noise level should be confirmed according to the selected configuration.
The 50Hz model table covers 8kW / 10kVA to 1800kW / 2250kVA prime power and 8.8kW / 11kVA to 2000kW / 2500kVA standby power.
This wide power range helps buyers compare small, medium, and large generator set models in one series. It supports power selection for hotel electricity, school electricity, plant power, ship and port electricity, mine electricity, medical electricity, construction sites, industrial projects, farms, and emergency power applications.
The provided material states that the generator set uses high-strength wear-resistant materials.
This material configuration supports stable operation and long service use in project environments where power equipment needs to work reliably. For B2B buyers, stronger material selection helps improve confidence in long-term generator set operation and maintenance planning.

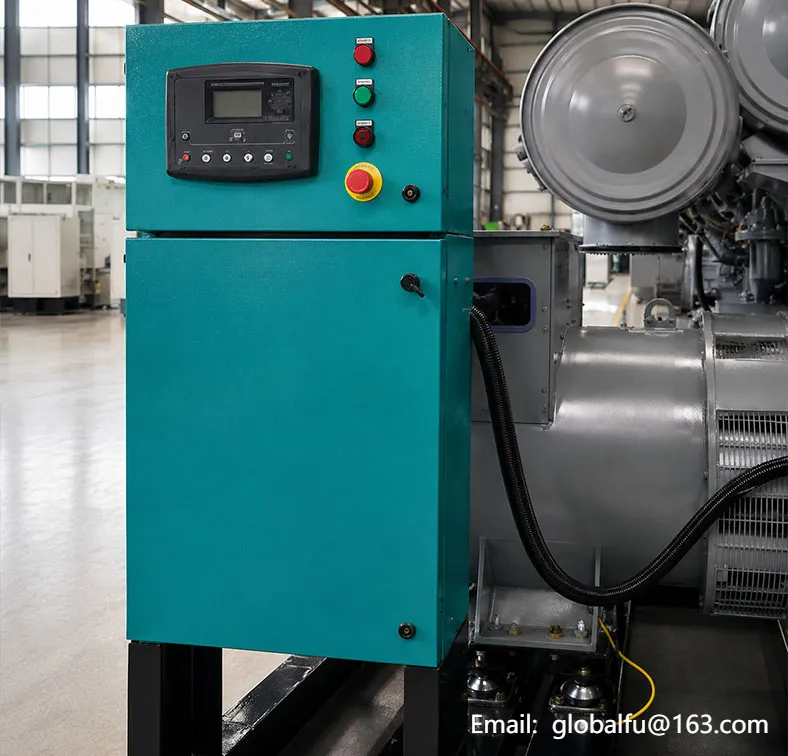

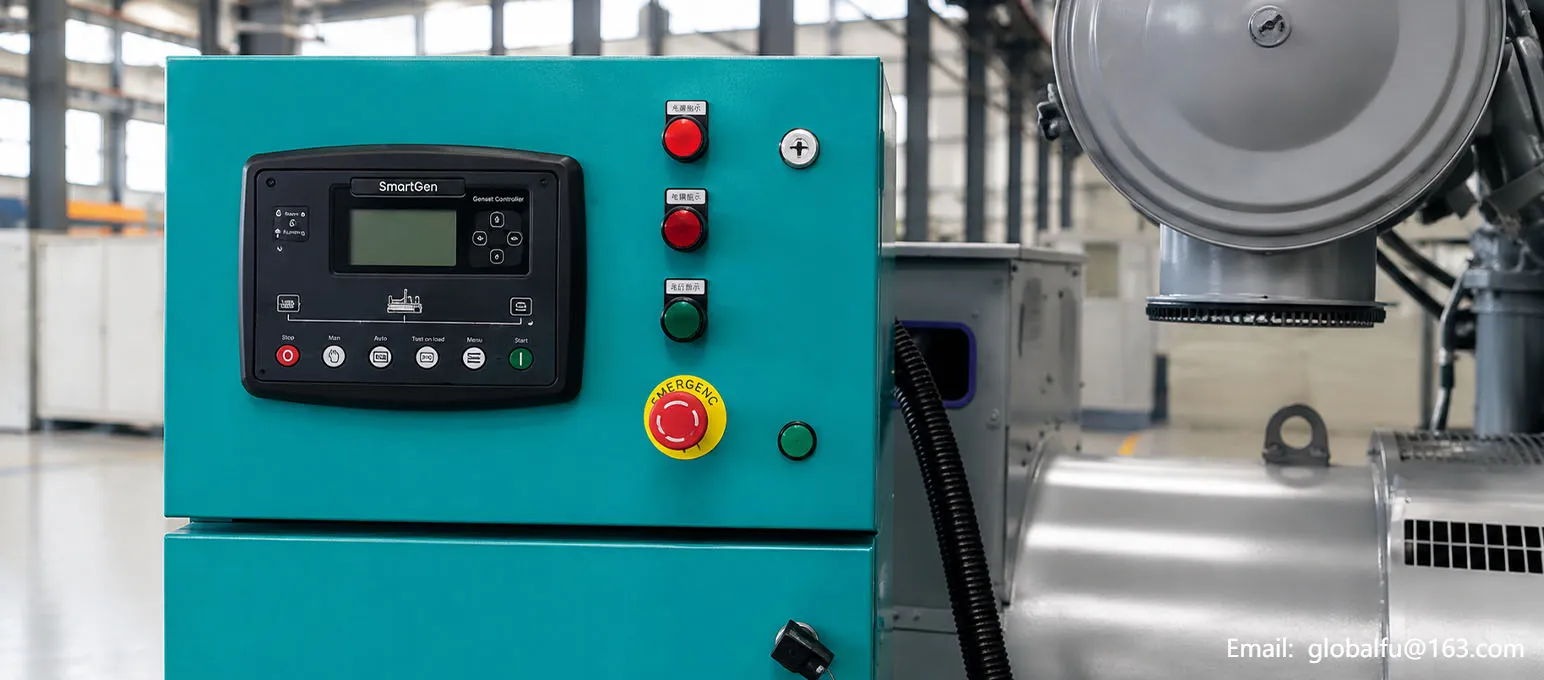

The provided material mentions an advanced control system for this Perkins generator set series.
This supports easier generator operation and helps users manage power supply in practical application scenarios. Specific control functions, controller brand, ATS, AMF, remote monitoring, or paralleling functions should be confirmed before quotation if required.

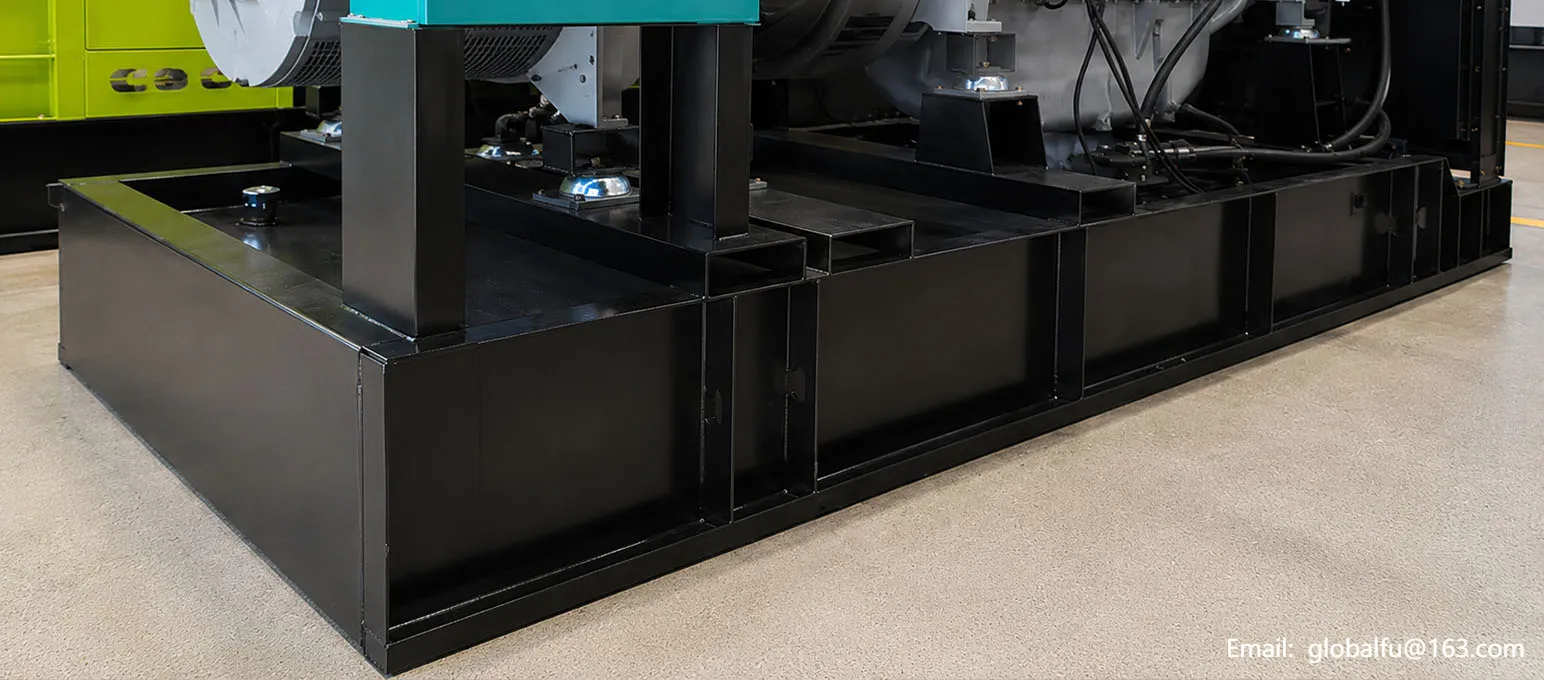

The generator set uses a high-strength bent base frame.
This base frame supports the generator set structure and helps improve installation stability and long-term durability during operation.
Built for reliable jobsite power, our generator sets provide stable energy for construction sites, remote projects, mining areas, farms, and emergency backup applications, with multiple power and engine options available.
