The Trailer Diesel Generator Set is a movable diesel power solution designed for construction sites, repair work, emergency power supply, mining areas, farms, road and railway projects, water conservancy projects, and outdoor jobsites. Also called a movable genset, trailer type genset, or towable diesel generator, this product combines a diesel generator set with a trailer chassis, weather-resistant enclosure, fuel tank, support system, towing structure, walking device, ventilation windows, access doors, and auxiliary safety systems. It is suitable for buyers who need reliable temporary power and easier site transfer. Kaishun can provide trailer diesel generator sets from 50kW to 1000kW, with engine options such as Cummins, Weichai, Yuchai, and other available brands. Alternator options can include Stamford, Marathon, Leroy-Somer, Kaishun’s own brand, and other configurations according to project requirements.
50kW–1000kW
Cummins / Weichai / Yuchai
Stamford / Marathon / Leroy-Somer
Towable chassis, 180° turntable, support legs
Get Latest Price
Download PDF Catalog
| Item | Specification |
| Product Name | Trailer Diesel Generator Set |
| Other Names | Movable genset, trailer type genset, towable diesel generator |
| Power Range | 50kW–1000kW |
| Engine Options | Cummins, Weichai, Yuchai, and other available options |
| Alternator Options | Stamford, Marathon, Leroy-Somer, own brand, and other available options |
| Structure Type | Diesel generator set mounted on movable trailer chassis |
| Trailer Chassis | Customizable according to customer request or working situation |
| Towing Structure | Movable hook and 180° turntable for flexible steering |
| Support System | 4R mechanical or hydraulic support device available |
| Brake System | Air brake interface and manual brake system available |
| Chassis Options | Two-wheel or four-wheel chassis according to configuration |
| Main Components | Generator set, fuel tank, enclosure, traction device, walking device, support system, auxiliary support equipment |
| Door / Window Design | Front and rear ventilation windows; access doors on both sides for inspection and maintenance |
| Enclosure Features | Weather-resistant, anti-rain, anti-snow, anti-dust, sealed structure |
| Fuel Tank | Large-capacity fuel tank fixed on the trailer frame |
| Optional Device | Cable device and auxiliary equipment can be added according to user requirements |
| Applications | Construction site power, repair work, emergency power, mining, farms, road and railway construction, water conservancy projects, outdoor jobsites |

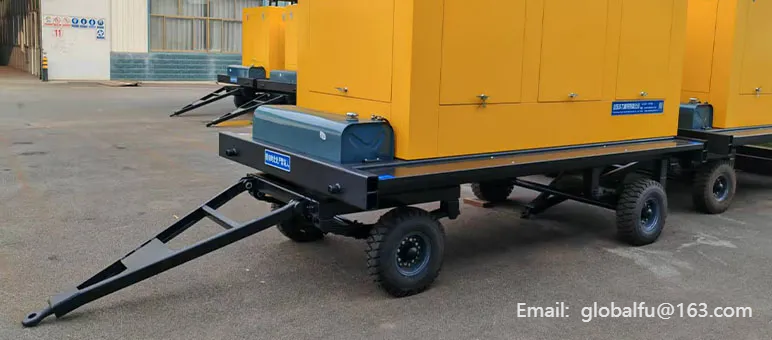

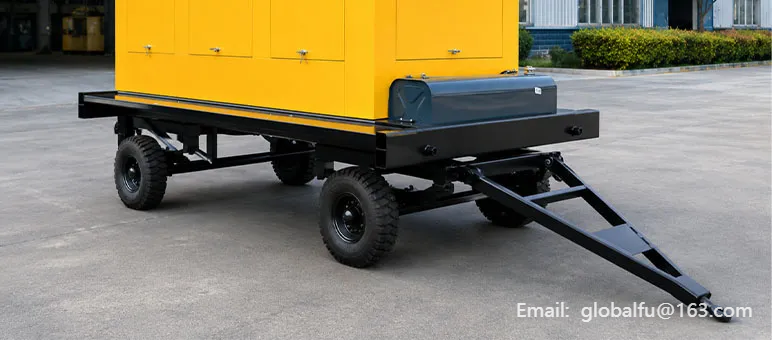

The generator set is mounted on a movable trailer chassis for easier transportation between jobsites. The chassis can use a movable hook and 180° turntable design, helping improve steering flexibility and operation convenience during towing and positioning.
The trailer chassis can also be customized according to customer requirements or actual working situations, making it suitable for construction sites, repair work, mining areas, farms, and temporary outdoor power supply.

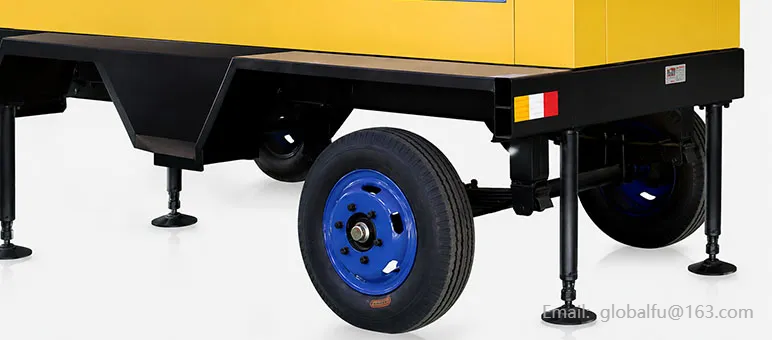

The trailer can be equipped with 4R mechanical or hydraulic support devices to help keep the power unit stable during operation. This is important when the generator set is placed on temporary jobsites, uneven ground, or outdoor working areas.
Mechanical support devices around the trailer frame help improve safety and stability after placement, while the walking system allows the machine to be moved more conveniently around the construction site.

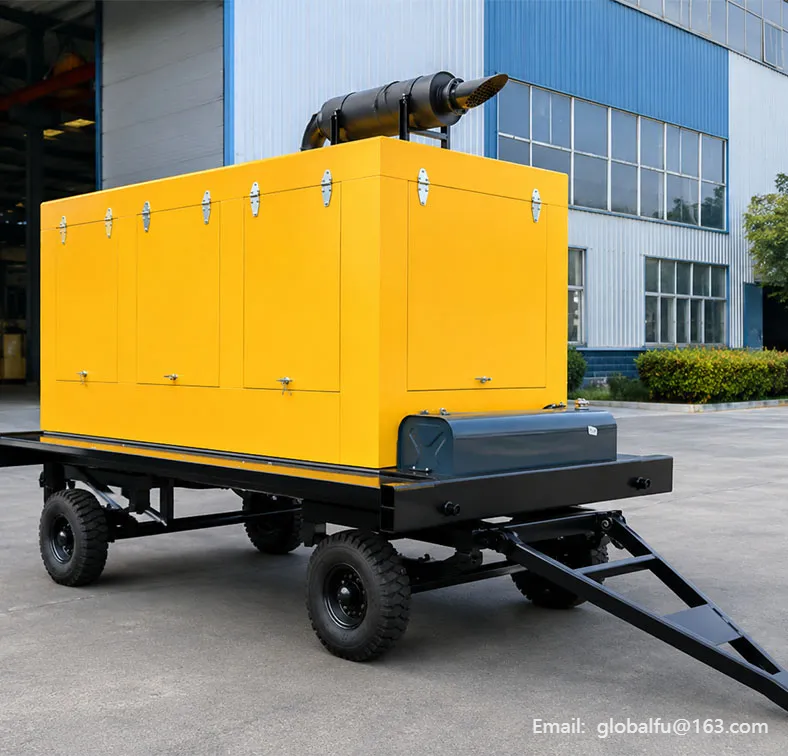

The enclosed canopy helps protect the diesel generator set from rain, snow, dust, and outdoor working conditions. The structure is designed for better sealing, corrosion resistance, and easier protection of internal components during mobile operation.

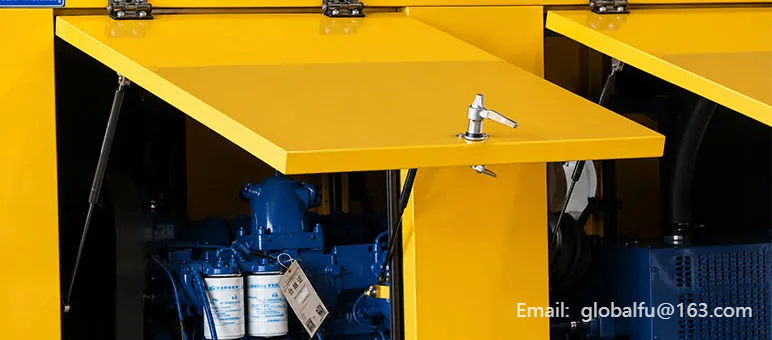

Ventilation windows are arranged at the front and rear to support airflow. Access doors on both sides make inspection, maintenance, and repair more convenient for operators.
The fuel tank is fixed on the trailer frame for safer and more convenient mobile operation. A large-capacity fuel tank can support longer generator running time and reduce frequent refueling during continuous outdoor work.
Final fuel tank capacity should be confirmed according to the selected power rating, engine configuration, and project operation requirements.
Built for reliable jobsite power, our generator sets provide stable energy for construction sites, remote projects, mining areas, farms, and emergency backup applications, with multiple power and engine options available.
