The 60Hz Yuchai Diesel Generator Set is powered by Yuchai series diesel engines and designed for stable power or lighting power supply in field construction, commercial buildings, high-rise buildings, industrial and mining projects, oil fields, highways, ports, telecommunications facilities, and temporary project sites. This Yuchai genset series is available with 60Hz output, 480V and 6kV–10.5kV voltage options, and 3P 4W configuration shown in the provided material. The model range covers 30kW / 37.5kVA to 1500kW / 1875kVA prime power and 33kW / 42kVA to 1680kW / 2100kVA standby power. For contractors, equipment dealers, EPC buyers, industrial users, and project owners, this Yuchai generator set series provides practical model options for jobsite power supply, standby power supply, industrial power supply, and remote project operation.
60Hz, 480V
30–1500kW Prime Power
Yuchai Diesel Engine
Jobsite & Industrial Power
Get Latest Price
Download PDF Catalog
| Genset Model | Standby Power KW/KVA | Prime Power KW/KVA | Engine Model | No. of Cylinder | Bore×Stroke mm | Overall Size mm | Gross Weight kg |
| SY42GE/S | 33/42 | 30/37.5 | YC4D65-D20 | 4.L | 108×115 | 1750×810×1160 | 735 |
| SY55GE/S | 44/55 | 40/50 | YC4D80Z-D20 | 4.L | 108×115 | 1750×810×1160 | 735 |
| SY70GE/S | 56/70 | 50/62.5 | YC4D80Z-D20 | 4.L | 108×115 | 1850×820×1250 | 860 |
| SY85GE/S | 68/85 | 60/75 | YC4D100Z-D20 | 4.L | 108×132 | 1950×820×1250 | 930 |
| SY110GE/S | 88/110 | 80/100 | YC6B130Z-D20 | 6.L | 108×125 | 2350×880×1460 | 1360 |
| SY140GE/S | 112/140 | 100/125 | YC6B160Z-D20 | 6.L | 108×125 | 2350×880×1460 | 1380 |
| SY165GE/S | 132/165 | 120/150 | YC6B210L-D20 | 6.L | 108×125 | 2360×950×1520 | 1550 |
| SY200GE/S | 160/200 | 150/187.5 | YC6A245L-D20 | 6.L | 108×132 | 2400×940×1560 | 1650 |
| SY275GE/S | 220/275 | 200/250 | YC6MK360L-D20 | 6.L | 123×145 | 2880×1100×1750 | 2320 |
| SY350GE/S | 280/350 | 250/312.5 | YC6MK420L-D21 | 6.L | 123×145 | 2970×1120×1750 | 2450 |
| SY400GE/S | 320/400 | 300/375 | YC6MJ515L-D22 | 6.L | 131×145 | 3100×1190×1750 | 2760 |
| SY550GE/S | 440/550 | 400/500 | YC6T660L-D21 | 6.L | 145×165 | 3450×1360×2070 | 4100 |
| SY700GE/S | 560/700 | 500/625 | YC6TD840-D32 | 6.L | 152×180 | 3610×1480×2010 | 4900 |
| SY825GE/S | 660/825 | 600/750 | YC6TD1020-D32 | 6.L | 152×180 | 3750×1480×2180 | 5140 |
| SY880GE/S | 704/880 | 640/800 | YC6TD1020-D32 | 6.L | 152×180 | 3750×1480×2180 | 5200 |
| SY1000GE/S | 800/1000 | 720/900 | YC6TH1220-D33 | 6.L | 175×195 | 4000×1700×2350 | 6900 |
| SY1100GE/S | 880/1100 | 800/1000 | YC6TH1350-D33 | 6.L | 175×195 | 4000×1700×2350 | 7150 |
| SY1375GEK | 1100/1375 | 1000/1250 | YC12VTD1680-D32 | 12.V | 152×180 | 4350×2120×2500 | 9300 |
| SY1650GEK | 1320/1650 | 1200/1500 | YC12VTD2070-D32 | 12.V | 152×180 | 4450×2120×2500 | 9400 |
| SY2200GEK | 1680/2100 | 1500/1875 | YC16VTD2700-D32 | 16.V | 152×180 | 5280×2400×2800 | 11410 |

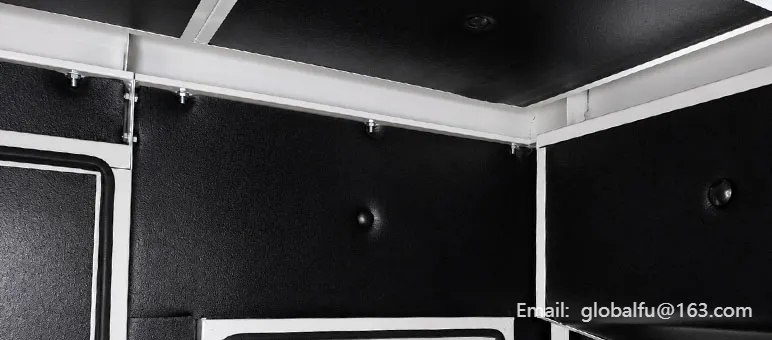

The generator set uses wave sound-absorbing cotton and continuously upgraded silent technology to help reduce operating noise.
The acoustic design helps make the unit more suitable for commercial buildings, field construction, temporary project sites, and other working areas where noise control is important. Final noise level should be confirmed according to the selected enclosure and configuration.
The series covers 30kW / 37.5kVA to 3000kW / 3750kVA prime power and 33kW / 42kVA to 3300kW / 4125kVA standby power.
This wide range allows buyers to select a suitable generator set according to actual site load, backup requirement, project scale, and operating conditions. It is suitable for both smaller construction support and higher-capacity industrial power supply applications.
The unit is equipped with high-quality vibration damping pads to help reduce vibration during operation.
These damping components help protect the generator set structure, reduce operating impact on the base frame, and support longer service life of the unit. For construction and industrial environments, better vibration control also helps improve operating stability.
The provided material describes a digital control system that can be configured according to user requirements.
Available functions may include remote computer control, group control, telemetry, automatic paralleling, and automatic fault protection according to project needs. Final control functions should be confirmed based on the selected genset model and configuration.

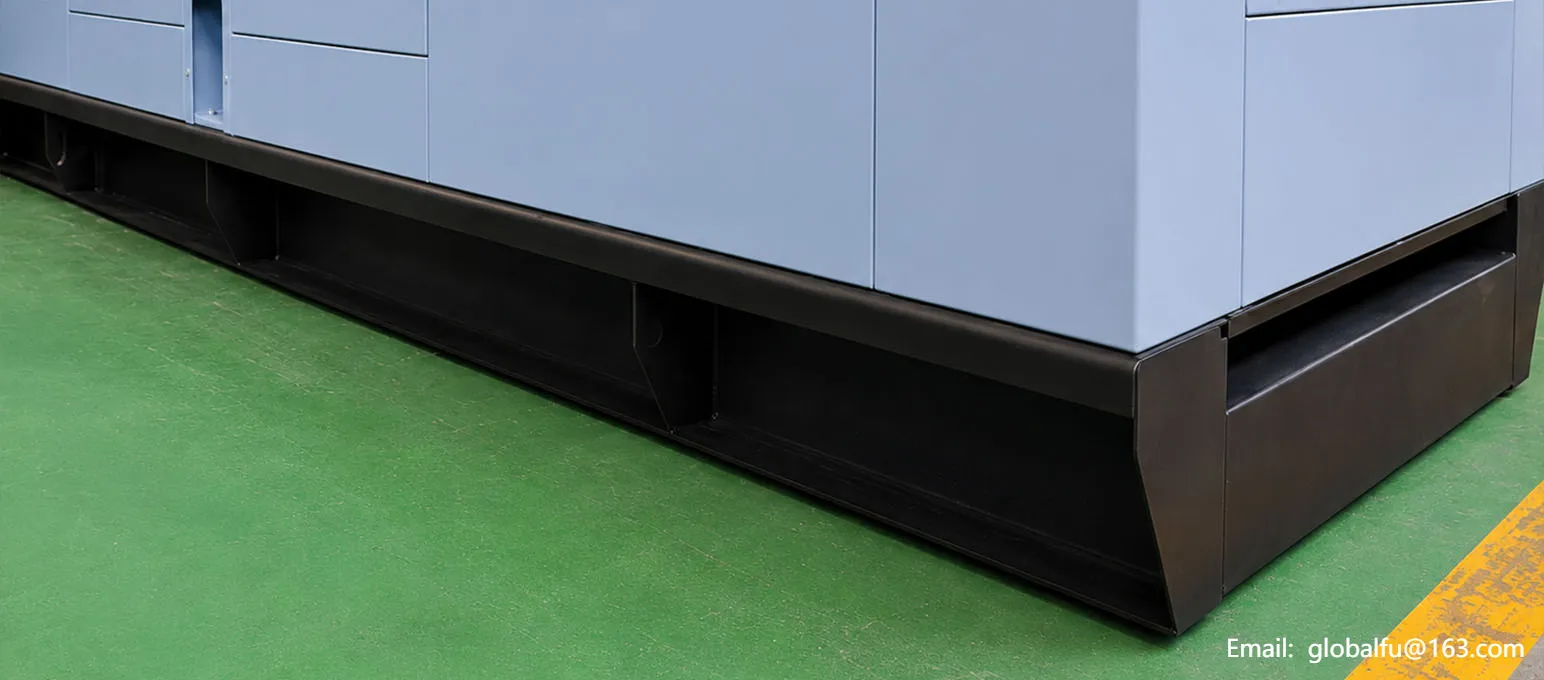

The generator set is built with a high-strength bent base frame designed to support structural stability and long-term durability.
The strong base frame helps carry the engine, alternator, and related system components more securely. It also supports stable installation, transportation, and operation of the generator set in construction, industrial, and project power supply environments.
Built for reliable jobsite power, our generator sets provide stable energy for construction sites, remote projects, mining areas, farms, and emergency backup applications, with multiple power and engine options available.
