Weichai Natural Gas Genset

Weichai Gas Genset for Natural Gas and Biogas

Description:

The Weichai Natural Gas & Biogas Genset is designed for gas-based power generation projects using natural gas, biogas, and other applicable gas fuel resources. It provides a practical power solution for industrial facilities, farms, mining sites, biogas utilization projects, gas resource stations, standby power systems, and remote project sites. This Weichai gas genset series offers flexible model selection for different power requirements. The natural gas genset range covers 80–1500kW prime power, while the Weichai biogas genset range covers 60–1200kW / 75–1500kVA prime power. With 6-cylinder, 12-cylinder, and 16-cylinder engine configurations, displacement options from 6.75L to 65.65L, and multiple genset sizes and weights, buyers can select the proper model according to fuel type, power demand, installation space, and project application. For B2B buyers comparing natural gas gensets and biogas gensets, this Weichai gas generator set series provides reliable gas engine performance, practical power coverage, and customizable configuration support for continuous power, standby power, and gas-to-power applications.

Key Features at a glance:

Product Type :

Natural Gas and Biogas
Prime Power Range:

60–1500kW
Engine Configuration :

6 / 12 / 16 Cylinders
Displacement Range :

6.75L–65.65L

Get Latest Price

Download PDF Catalog

Detailed Technical Specifications

Product Series	Genset Model	Prime Power KW/KVA	Engine Model	No. of Cylinder	Displacement L	Overall Size mm	Gross Weight kg
Weichai Natural Gas Genset Parameters	SW110NFK/S	80/100	WP6D132E300NG	6	6.75	24008601400	1400
	SW140NFK/S	100/125	WP6D132E300NG	6	6.75	24008601400	1400
	SW200NFK/S	150/187.5	WP10D200E300NG	6	9.726	280010501600	2150
	SW275NFK/S	200/250	WP13D317E300NG	6	12.54	290013501650	2400
	SW350NFK/S	250/312.5	WP13D317E300NG	6	12.54	300013501650	2500
	SW500NFK/S	350/437.5	6M33D450E310NG	6	19.6	350017002060	4550
	SW550NFK/S	400/500	6M33D450E310NG	6	19.6	350017002060	4550
	SW700NFK/S	500/625	12M26D605E300NG	12	31.8	400020002300	6800
	SW1100NFK/S	800/1000	12M33D900E310NG	12	39.2	480022002500	8500
	SW1375NFK/S	1000/1250	16M33D1280NG10	16	52.3	435017002450	10000
	SW1650NFK/S	1200/1500	16M33D1280NG10	16	52.3	435017002450	10100
	SW2100NFK/S	1500/1875	12M55D1588A0NG	12	65.65	445021002780	15000
Weichai Biogas Genset Parameters	SW82.5NFK/S	60/75	WP6D132E300NG	6	6.75	24008601400	1400
	SW110NFK/S	80/100	WP6D132E300NG	6	6.75	24008601400	1400
	SW165NFK/S	120/150	WP10D200E300NG	6	9.726	280010501600	2150
	SW220NFK/S	160/200	WP13D317E300NG	6	12.54	290013501650	2400
	SW275NFK/S	200/250	WP13D317E300NG	6	12.54	300013501650	2500
	SW385NFK/S	280/350	6M33D450E310NG	6	19.6	350017002060	4550
	SW440NFK/S	320/400	6M33D450E310NG	6	19.6	350017002060	4550
	SW550NFK/S	400/500	12M26D605E300NG	12	31.8	400020002300	6800
	SW880NFK/S	640/800	12M33D880ABG	12	39.2	480022002500	8500
	SW1100NFK/S	800/1000	12M33D880ABG	12	39.2	500022002500	10000
	SW1320NFK/S	960/1200	16M33D1280NG10	16	52.3	435017002450	10100
	SW1650NFK/S	1200/1500	12M55D1588A0NG	12	65.65	445021002780	15000

Premium Components for Maximum Reliability

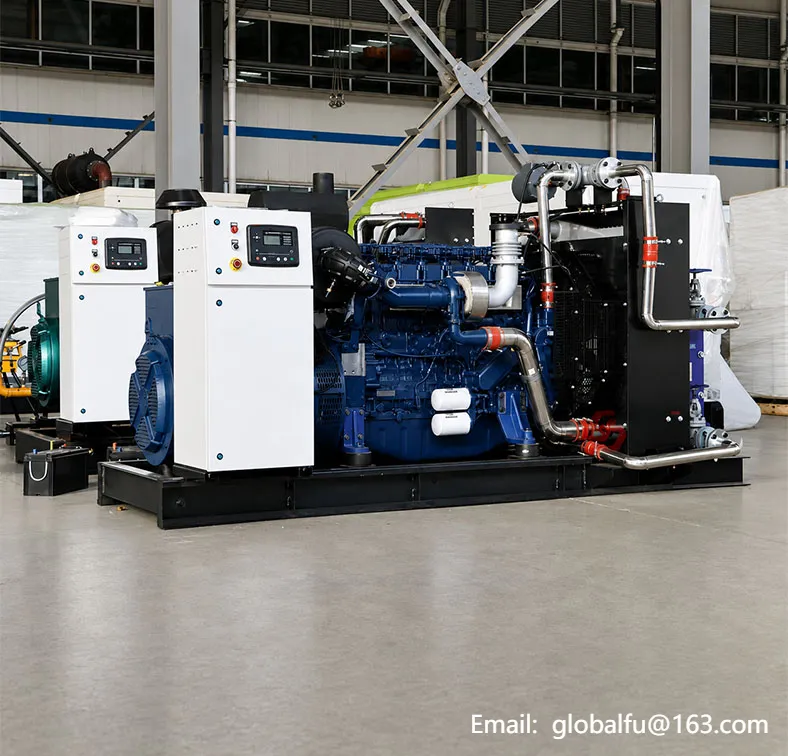

Natural Gas Pipeline and Fuel Supply Layout

The supplied images show visible gas pipeline connections, stainless-steel piping, and fuel delivery structure around the genset system.

For a natural gas generator set, stable fuel supply is important for continuous operation. Before quotation, buyers should confirm gas type, gas pressure, gas heat value, gas composition, and site gas supply condition so the proper genset model and fuel system configuration can be selected.

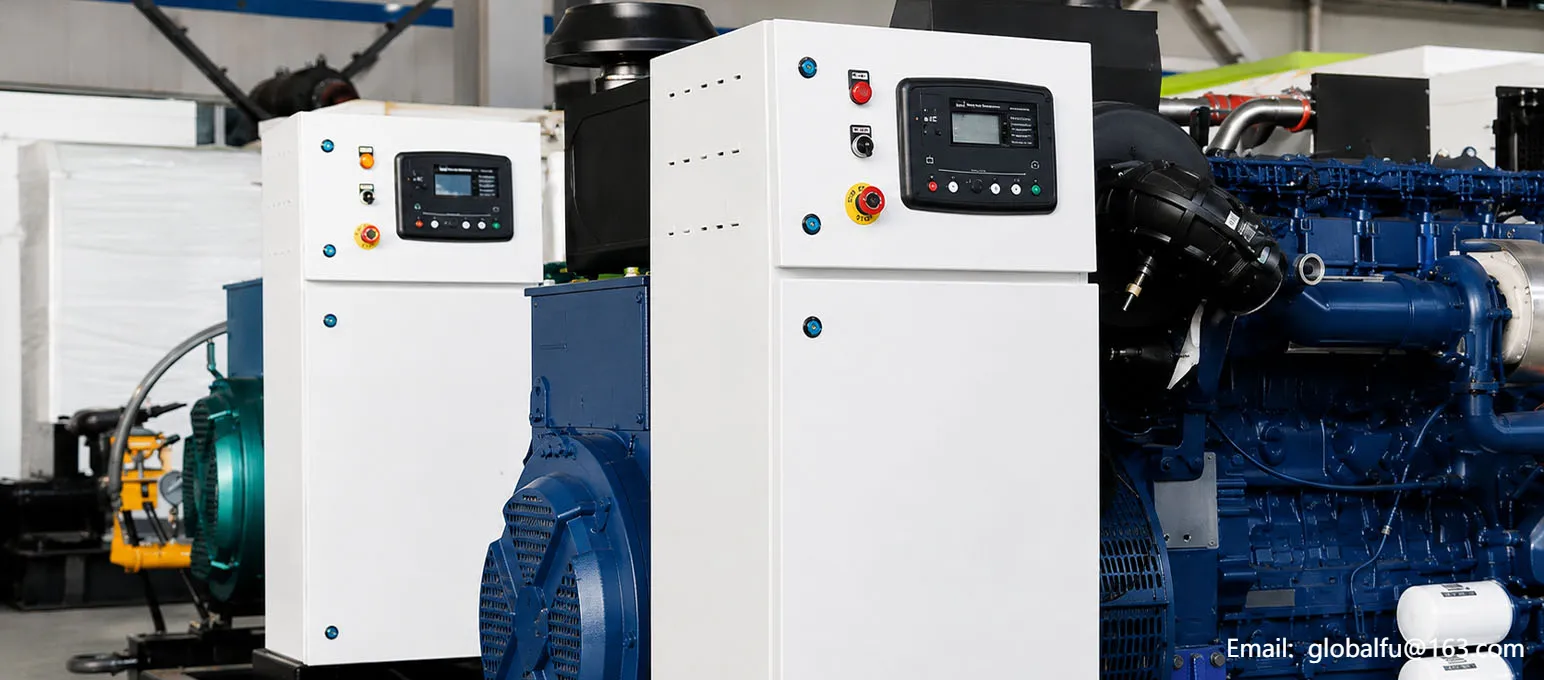

Generator Alternator and Control Cabinet

The open genset image shows the generator alternator and independent control cabinet arranged on the same base frame.

This layout supports centralized operation, easier inspection, and practical project installation. The control cabinet can help operators monitor and manage generator operation on site. Final controller brand, control functions, protection functions, and ATS/AMF options should be confirmed according to the selected configuration.

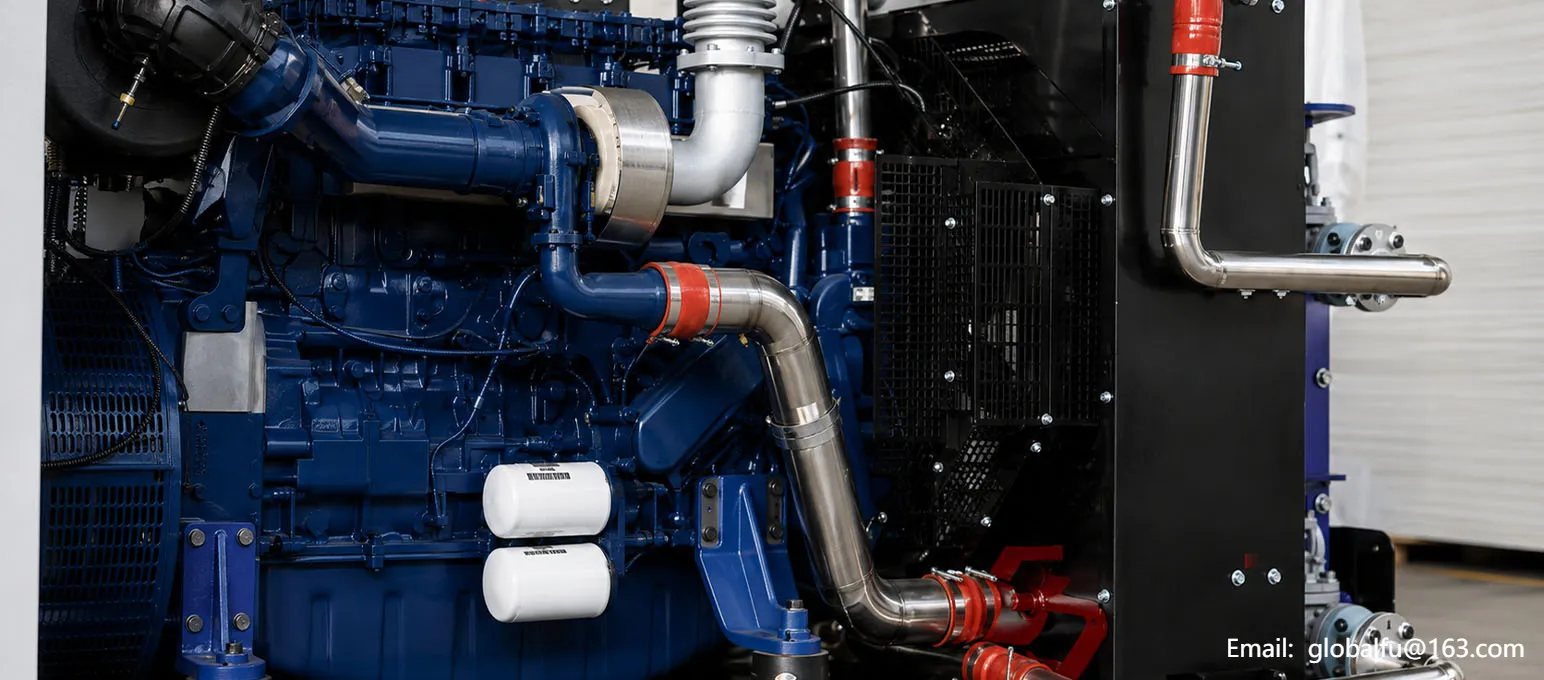

Cooling and Heat Dissipation System

Large cooling and heat dissipation structures, including radiator-related components, external piping, and cooling modules.

For gas engine genset operation, cooling performance is important for stable long-term running, especially in industrial power projects, mining sites, farms, gas resource projects, and standby power applications. Final cooling configuration should be confirmed according to the selected model, ambient temperature, and installation environment.

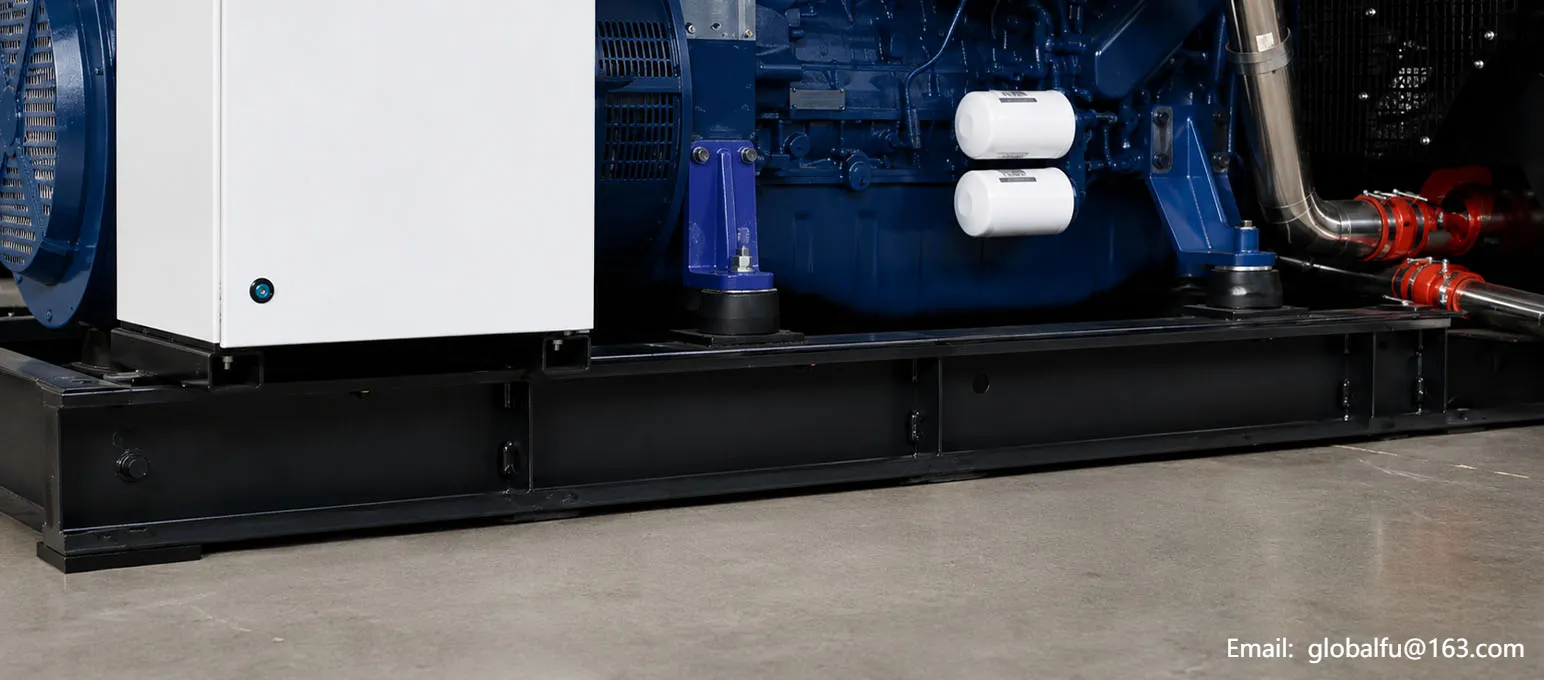

Heavy-Duty Base Frame and Service-Friendly Layout

The genset is arranged on a heavy-duty base frame, helping support the engine, alternator, control cabinet, and auxiliary systems as one integrated unit.

For B2B buyers, a clear and service-friendly layout is useful for transportation planning, installation positioning, daily inspection, and long-term maintenance. Final foundation design, installation space, lifting method, and maintenance clearance should be confirmed according to the selected model and project site conditions.
