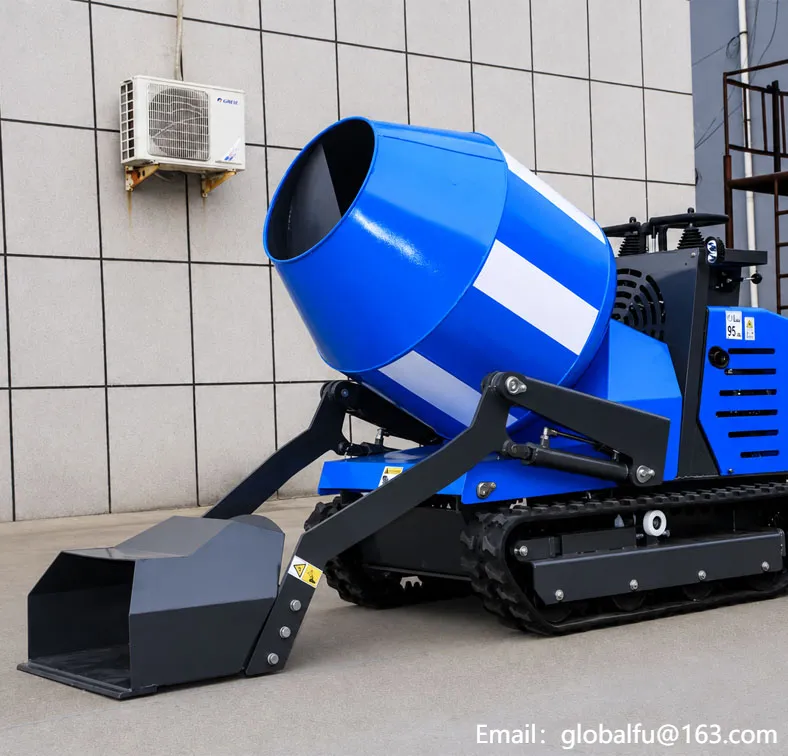

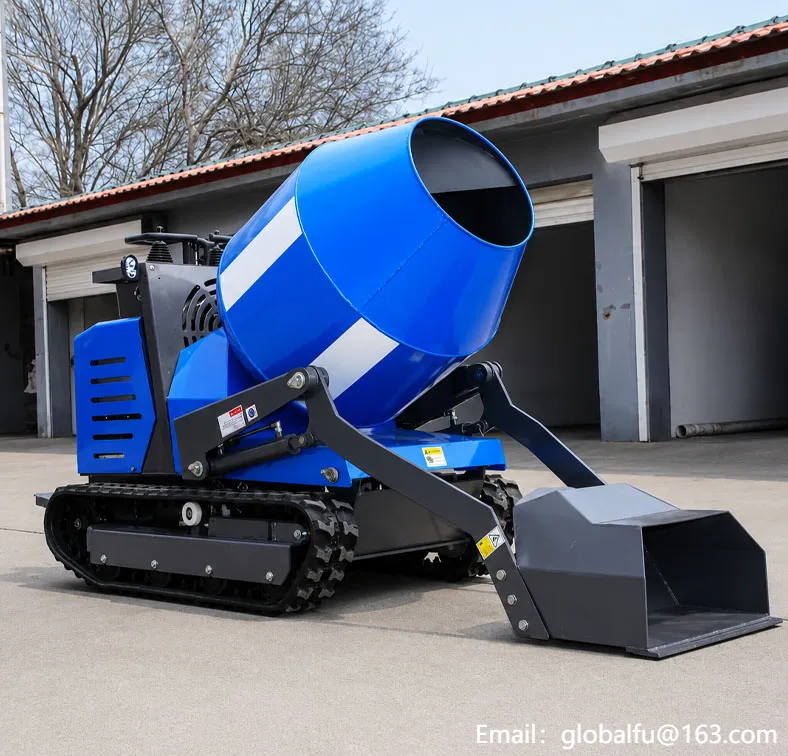

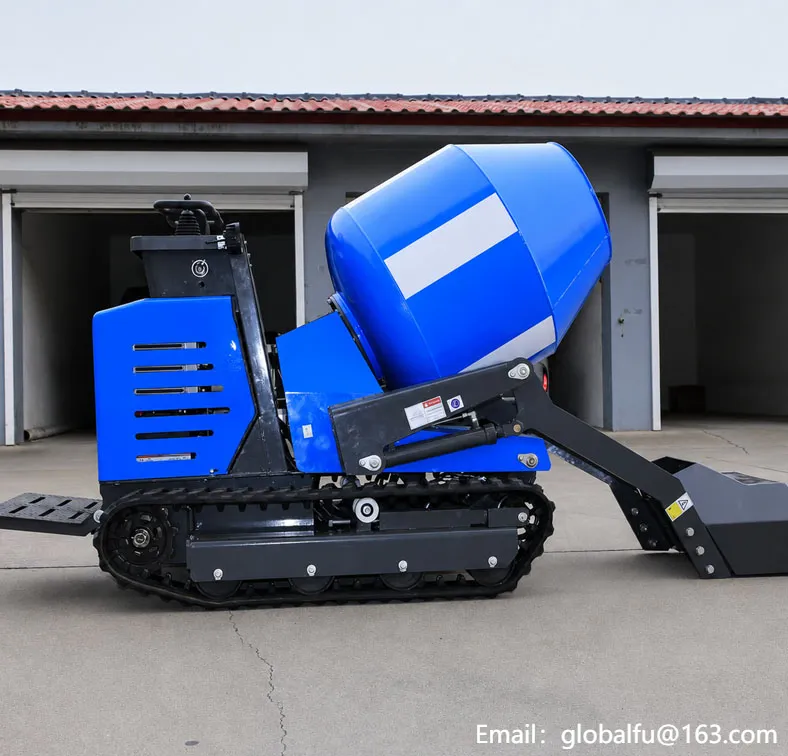

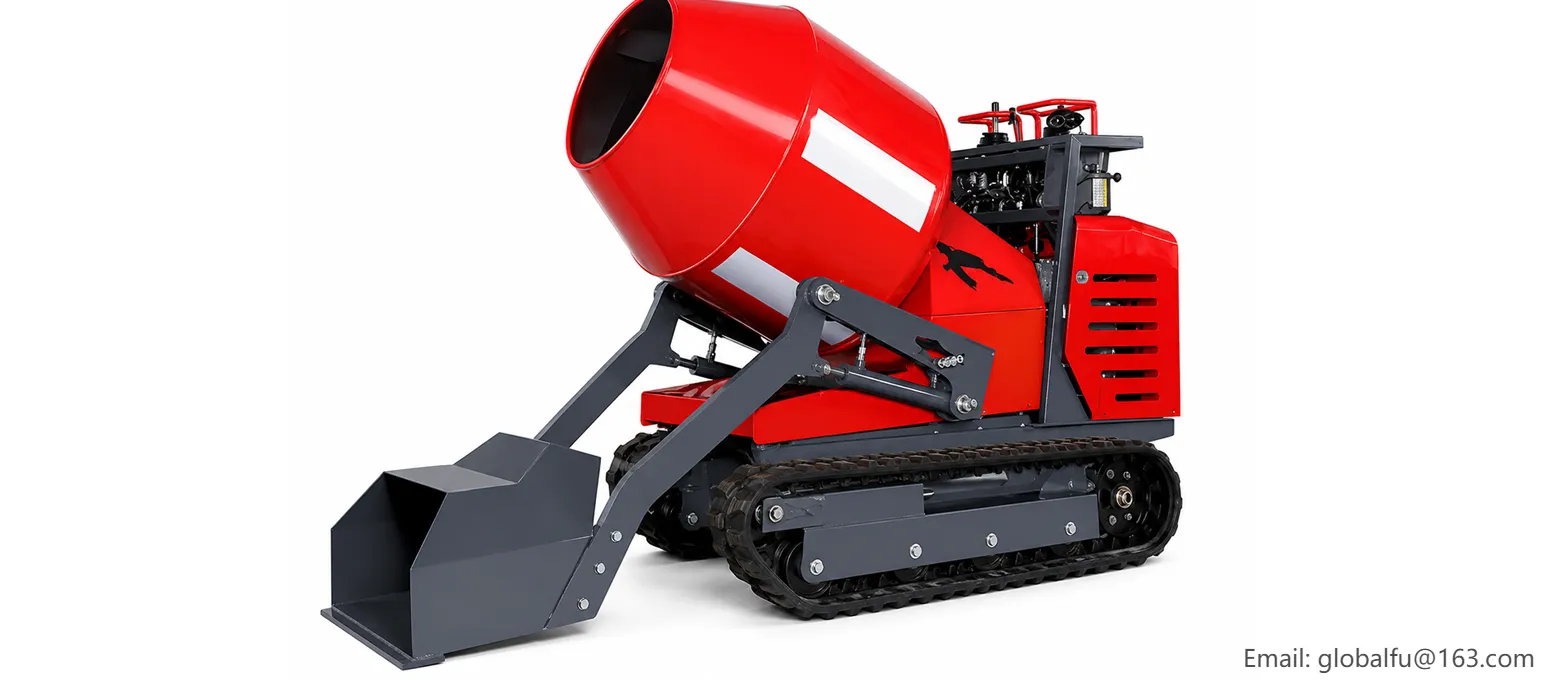

The 500L Crawler Self Loading Concrete Mixer is a compact construction machine designed for small-scale concrete production, rural construction projects, and job sites with limited working space. Combining material loading, concrete mixing, and site mobility in one machine, this self loading concrete mixer helps reduce manual handling and improves concrete preparation efficiency directly at the construction location. Equipped with a crawler chassis, RATO R740-1 engine, hydraulic working system, and integrated loading bucket, this small concrete mixer is suitable for projects requiring flexible movement and onsite concrete mixing capability. Its compact structure makes it a practical solution for small construction sites, building projects, and remote working environments where traditional concrete supply methods are difficult to apply.
320L / Batch
RATO R740-1 Engine, 15kW
0.1m³ Hydraulic Loading Bucket
Crawler Chassis, 30° Climbing Ability
Get Latest Price
Download PDF Catalog
| Item | Specification |
| Model | 500L Crawler Self Loading Concrete Mixer |
| Length × Width × Height (Lifting Arm) | 2800 × 1000 × 1850 mm |
| Length × Width × Height (Drop Arm) | 3200 × 1000 × 1530 mm |
| Machine Weight | 860 kg |
| Total Volume | 500 L |
| Concrete Per Batch | 320 L |
| Engine Brand | RATO |
| Engine Model | R740-1 |
| Rated Speed | 3600 rpm |
| Displacement | 0.739 L |
| Oil Consumption | 5 L/h |
| Rated Power | 15 kW |
| Walking Speed | 0–6 km/h |
| Minimum Radius of Turn | 1000 mm |
| Ground Clearance | 170 mm |
| Climbing Ability | 30° |
| Hydraulic Tank Capacity | 25 L |
| Hydraulic Oil | 46# Hydraulic Oil |
| Bucket Capacity | 0.1 m³ |
The machine is equipped with a RATO R740-1 engine with a rated power of 15 kW and rated speed of 3600 rpm.
The engine provides the power required for driving, loading, and mixing operations, helping the machine maintain stable performance during continuous construction work. With a compact engine layout, it is suitable for small construction environments where equipment size and operational flexibility are important.

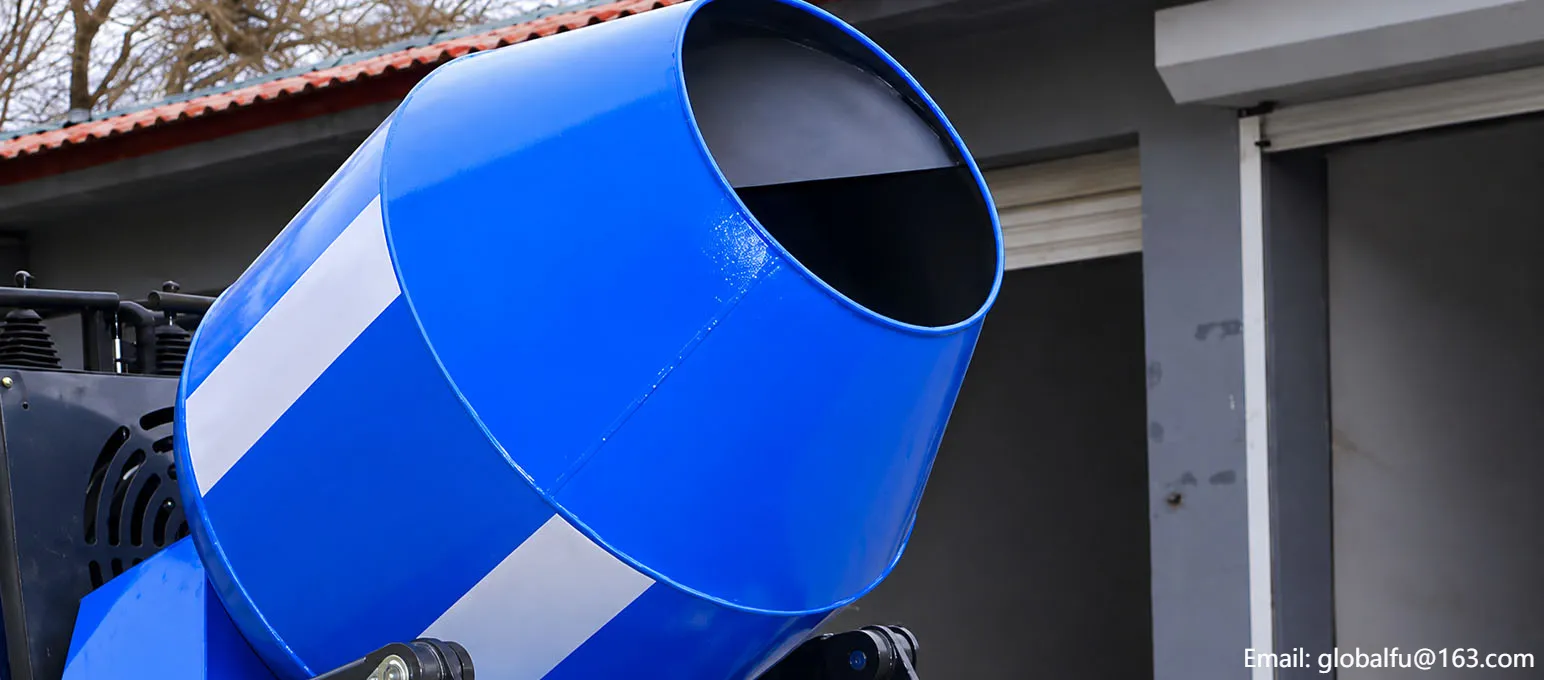

The 500L mixing system is designed for onsite concrete preparation with a total volume of 500 L and concrete output per batch of 320 L.
The integrated mixing structure allows operators to prepare concrete directly at the job site, reducing dependence on external concrete supply and improving flexibility for small construction projects.

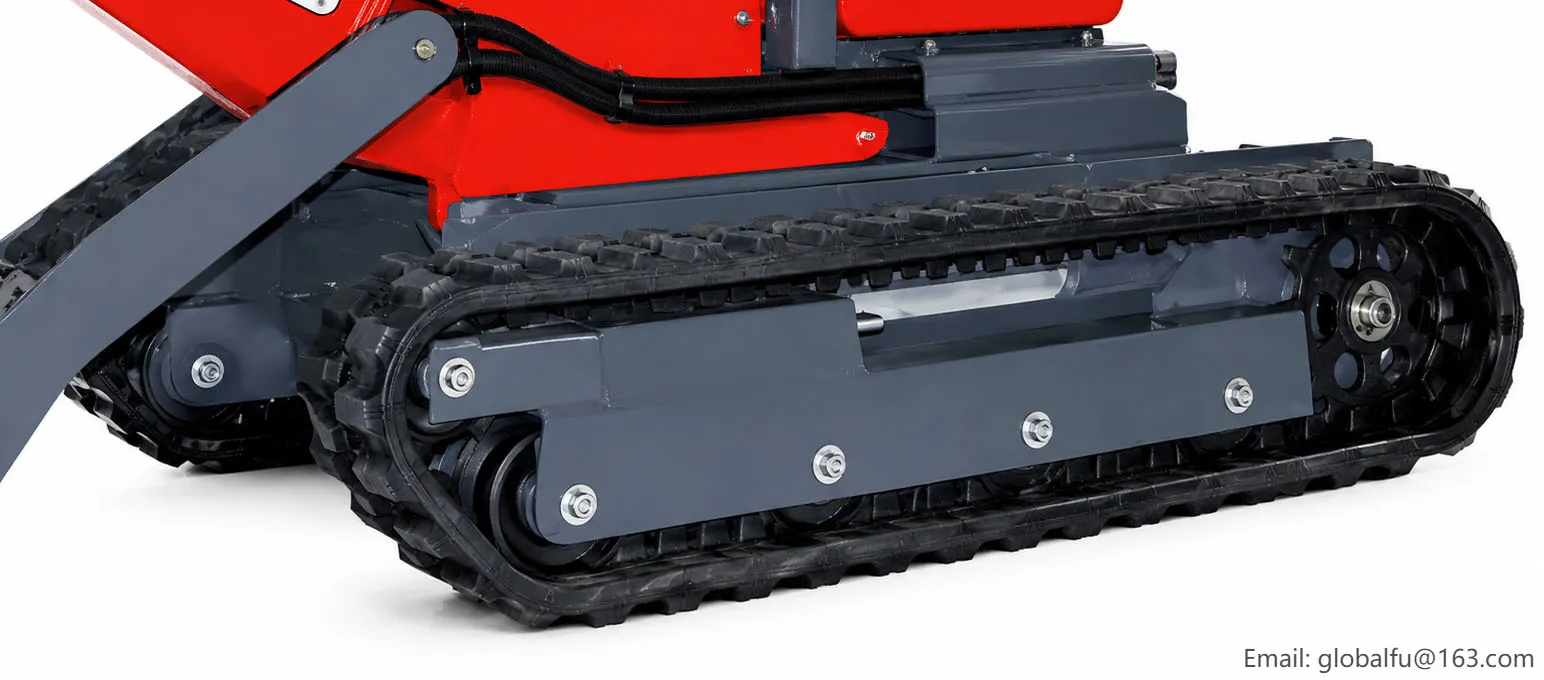

Different from traditional wheeled equipment, the crawler chassis provides improved ground adaptability for uneven construction areas.
The crawler system helps the machine operate in challenging working conditions such as rural construction sites, rough ground, and areas where standard vehicles may have limited access.

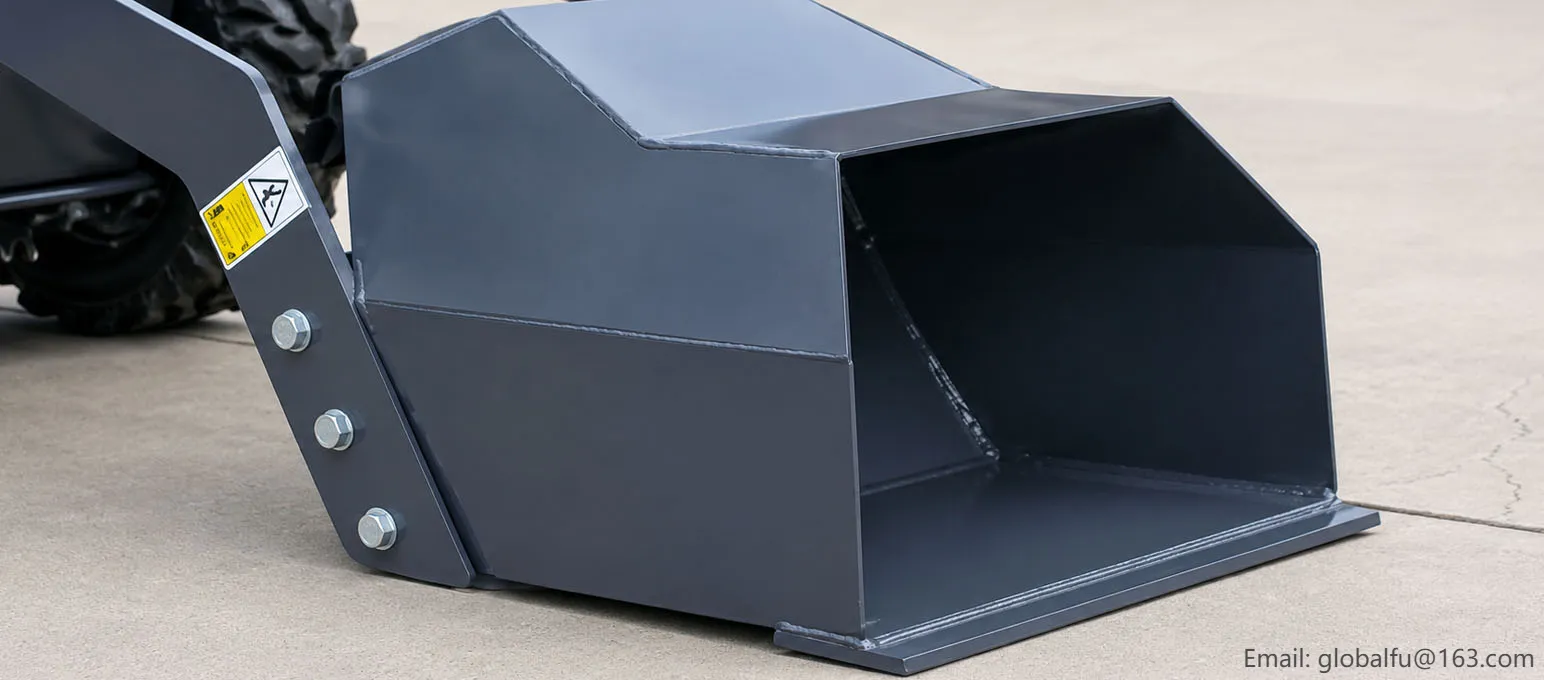

The machine features a hydraulic loading bucket with a capacity of 0.1 m³, allowing operators to complete material loading operations with reduced manual handling.
The self-loading function improves workflow efficiency by combining loading and mixing processes in one compact machine, making it suitable for small construction teams and flexible jobsite operations.

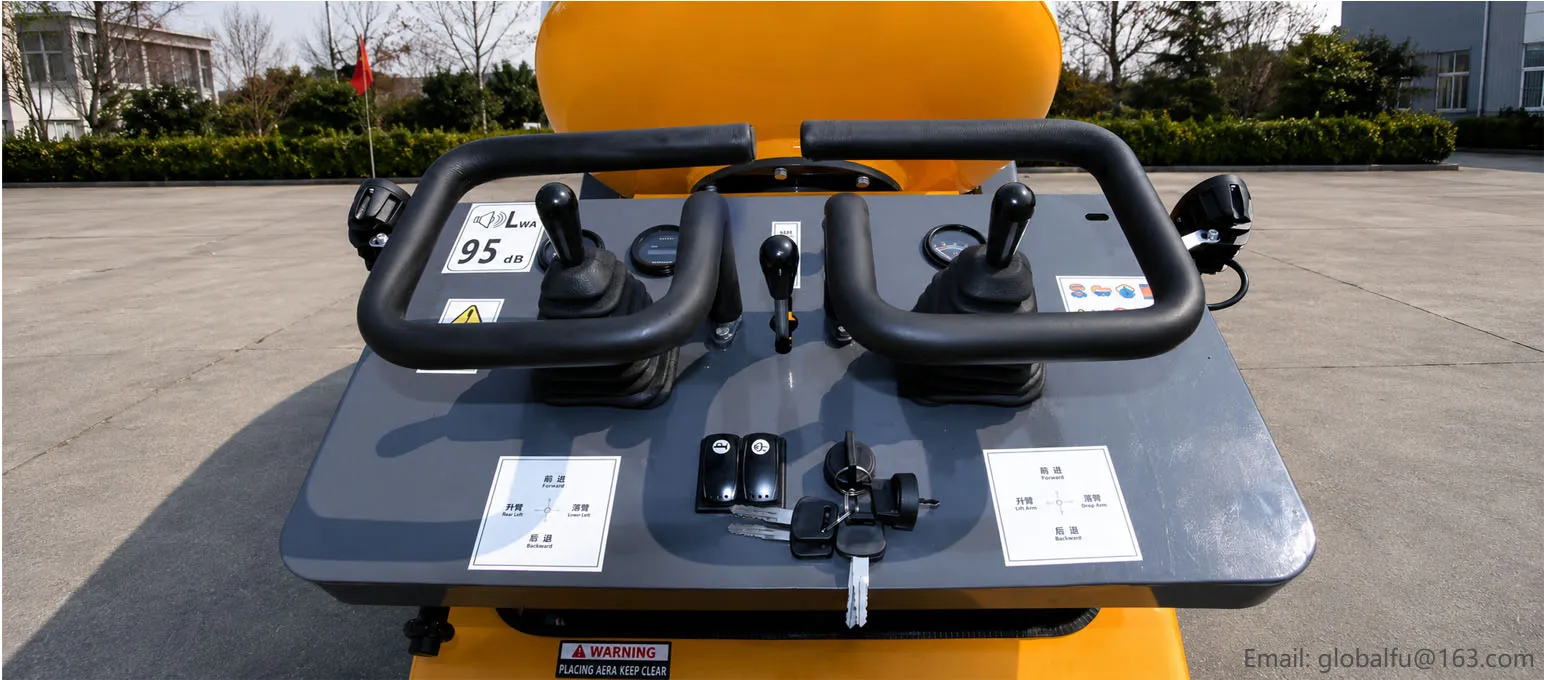

The control layout is designed for convenient operation, allowing operators to manage driving, loading, and mixing functions from the operating position.
The compact design helps improve visibility and control efficiency, especially when working in confined construction areas.
Built for construction environments, the crawler self loading concrete mixer combines a compact structure with strong mobility.
The machine provides a practical balance between size, working capability, and transportation convenience for small-scale concrete projects.
Engineered for adaptability, our self-loading concrete mixers deliver high-quality concrete exactly where you need it, overcoming the limitations of traditional batching plants
