The 50Hz Cummins Diesel Generator Set is powered by Cummins series diesel engines and designed to provide stable and reliable power for construction sites, industrial facilities, commercial buildings, mining operations, oil fields, farms, ports, telecommunications facilities, hospitals, hotels, data facilities, and emergency backup power applications. According to the available configuration range, this Cummins generator set supports 50Hz, 400V, 6kV–10.5kV, 3-phase 4-wire electrical systems, making it suitable for different project power requirements and destination-market standards. The series covers 16kW / 20kVA to 2500kW / 3125kVA prime power, with standby power from 18kW / 22kVA to 2650kW / 3300kVA. The broad power range enables contractors, equipment distributors, industrial buyers, EPC companies, and project owners to select a suitable diesel generator set according to actual load, operating hours, starting current, installation environment, and backup or prime-power requirements. Cummins diesel engines are widely recognized for strong power output, high reliability, durability, fuel economy, compact structure, large torque, strong torque reserve, good parts availability, and practical maintenance. The result is a 50Hz diesel generator set designed for dependable long-term operation in demanding commercial and industrial environments.
50Hz, 400V
16–2500 kW
Cummins Diesel Engine
Reliable,Durable,Fuel-Efficient,High Torque
Get Latest Price
Download PDF Catalog
| Genset Model | Standby Power (KW/KVA) | Prime Power (KW/KVA) | Engine Model | No. of Cylinder | Bore×Stroke (mm) | Overall Size (mm) | Gross Weight (kg) |
| SC22GF/K/S | 18/22 | 16/20 | 4B3.9-G11 | 4.L | 102×120 | 1650×700×1185 | 800 |
| SC28GF/K/S | 22/28 | 20/25 | 4B3.9-G1 | 4.L | 102×120 | 1650×700×1185 | 850 |
| SC28GF/K/S | 22/28 | 20/25 | 4B3.9-G2 | 4.L | 102×120 | 1650×800×1315 | 850 |
| SC33GF/K/S | 27/33 | 24/30 | 4BT3.9-G1 | 4.L | 102×120 | 1700×700×1190 | 900 |
| SC33GF/K/S | 27/33 | 24/30 | 4BT3.9-G2 | 4.L | 102×120 | 1700×700×1190 | 900 |
| SC42GF/K/S | 33/42 | 30/37.5 | 4BT3.9-G1 | 4.L | 102×120 | 1700×700×1190 | 900 |
| SC42GF/K/S | 33/42 | 30/37.5 | 4BT3.9-G2 | 4.L | 102×120 | 1700×700×1190 | 900 |
| SC55GF/K/S | 44/55 | 40/50 | 4BTA3.9-G2 | 4.L | 102×120 | 1750×800×1260 | 950 |
| SC70GF/K/S | 56/70 | 50/62.5 | 4BTA3.9-G11 | 4.L | 102×120 | 1900×800×1500 | 1180 |
| SC85GF/K/S | 68/85 | 60/75 | 4BTA3.9-G11 | 4.L | 102×120 | 1900×800×1500 | 1180 |
| SC110GF/K/S | 88/110 | 80/100 | 6BT5.9-G1 | 6.L | 102×120 | 2250×880×1445 | 1480 |
| SC110GF/K/S | 88/110 | 80/100 | 6BT5.9-G2 | 6.L | 102×120 | 2250×880×1445 | 1480 |
| SC110GFA/K/S | 88/110 | 80/100 | 4BTA3.9-G13 | 4.L | 102×120 | 1900×800×1500 | 1250 |
| SC140GF/K/S | 112/140 | 100/125 | 6BTA5.9-G2 | 6.L | 102×120 | 2250×880×1530 | 1500 |
| SC165GF/K/S | 132/165 | 120/150 | 6BTAA5.9-G12 | 6.L | 102×120 | 2400×880×1530 | 1580 |
| SC200GF/K/S | 160/200 | 150/187.5 | 6CTA8.3-G1 | 6.L | 114×135 | 2400×900×1620 | 1905 |
| SC200GF/K/S | 160/200 | 150/187.5 | 6CTA8.3-G2 | 6.L | 114×135 | 2400×900×1620 | 1905 |
| SC220GF/K/S | 176/220 | 160/200 | 6CTAA8.3-G2 | 6.L | 114×135 | 2460×960×1650 | 2050 |
| SC275GF/K/S | 220/275 | 200/250 | 6LTAA8.9-G2 | 6.L | 114×145 | 2550×1000×1780 | 2410 |
| SC350GF/K/S | 280/350 | 250/312.5 | 6LTAA9.5-G1 | 6.L | 114×145 | 2850×1120×1750 | 2700 |
| SC400GF/K/S | 320/400 | 300/375 | 6ZTAA13-G3 | 6.L | 130×163 | 3100×1380×2000 | 3500 |
| SC400GFA/K/S | 320/400 | 300/375 | NTA855-G7 | 6.L | 140×152 | 3185×1120×2050 | 3490 |
| SC450GFA/K/S | 360/450 | 320/400 | NTA855-G7 | 6.L | 140×152 | 3185×1120×2050 | 3490 |
| SC450GF/K/S | 360/450 | 320/400 | 6ZTAA13-G2 | 6.L | 130×163 | 3100×1380×2000 | 3500 |
| SC500GF/K/S | 400/500 | 360/450 | 6ZTAA13-G4 | 6.L | 130×163 | 3250×1360×2065 | 3600 |
| SC500GFA/K/S | 400/500 | 360/450 | KTA19-G3 | 6.L | 159×159 | 3480×1380×2200 | 4600 |
| SC550GF/K/S | 440/550 | 400/500 | QSZ13-G3 | 6.L | 130×163 | 3250×1360×2065 | 3600 |
| SC550GFA/K/S | 440/550 | 400/500 | KTA19-G3A | 6.L | 159×159 | 3480×1380×2200 | 4600 |
| SC625GF/K/S | 500/625 | 450/562.5 | QSZ13-G10 | 6.L | 130×163 | 3250×1360×2065 | 3800 |
| SC625GFA/K/S | 500/625 | 450/562.5 | KTAA19-G6 | 6.L | 159×159 | 3600×1550×2300 | 5000 |
| SC700GF/K/S | 560/700 | 500/625 | KTAA19-G6A | 6.L | 159×159 | 3600×1550×2300 | 5000 |
| SC825GF/K/S | 660/825 | 600/750 | KTA38-G2 | 12.V | 159×159 | 4400×1820×2450 | 7800 |
| SC880GF/K/S | 704/880 | 640/800 | KTA38-G2B | 12.V | 159×159 | 4400×1820×2450 | 7800 |
| SC1000GF/K/S | 800/1000 | 720/900 | KTA38-G2A | 12.V | 159×159 | 4400×1820×2450 | 7800 |
| SC1100GF/K/S | 880/1100 | 800/1000 | KTA38-G5 | 12.V | 159×159 | 4400×1820×2450 | 7900 |
| SC1250GF/K/S | 1000/1250 | 900/1125 | KTA38-G9 | 12.V | 159×159 | 4420×1850×2450 | 8000 |
| SC1375GF/K/S | 1100/1375 | 1000/1250 | KTA50-G3 | 16.V | 159×159 | 5000×2020×2500 | 8250 |
| SC1650GFK | 1320/1650 | 1200/1500 | KTA50-GS8 | 16.V | 159×159 | 5650×2150×2520 | 10900 |
| SC1800GFK | 1440/1800 | 1320/1650 | KTA50-G15 | 16.V | 159×159 | 5550×2230×2720 | 11420 |
| SC2200GFK | 1760/2200 | 1600/2000 | QSK60-G4 | 16.V | 159×190 | 5660×2200×2550 | 14500 |
| SC2500GFK | 2000/2500 | 1800/2250 | QSK60-G8 | 16.V | 159×190 | 5660×2200×2550 | 14500 |
| SC2750GFK | 2200/2750 | 2000/2500 | QSK60-G23 | 16.V | 159×190 | 6100×2600×2800 | 17000 |
| SC3000GFK | 2400/3000 | 2200/2750 | QSK78-G9 | 18.V | 170×190 | 6750×2750×3160 | 20500 |
| SC3300GFK | 2650/3300 | 2500/3125 | QSK95-G5 | 16.V | 190×210 | 7100×2800×2900 | 25000 |

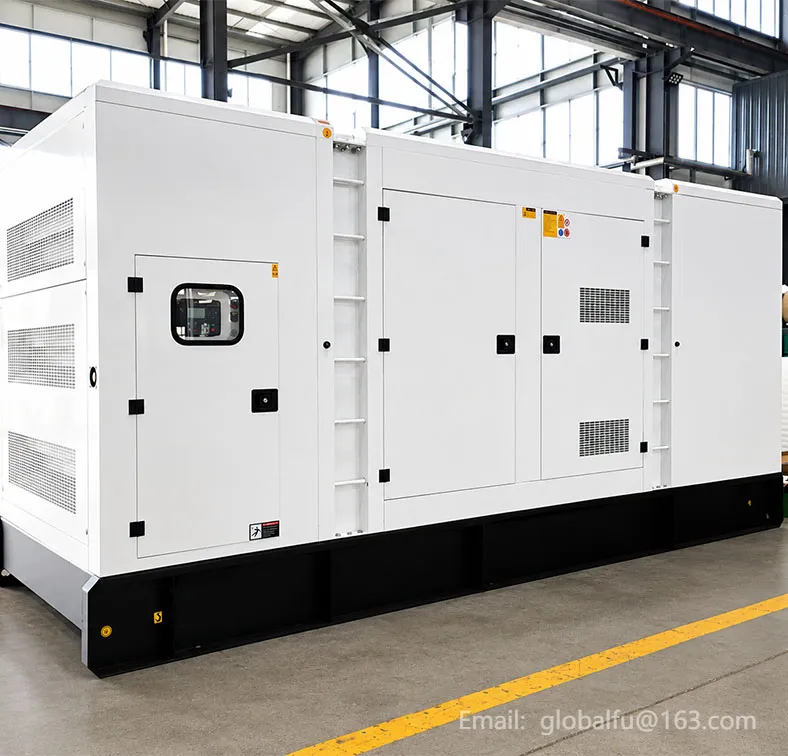

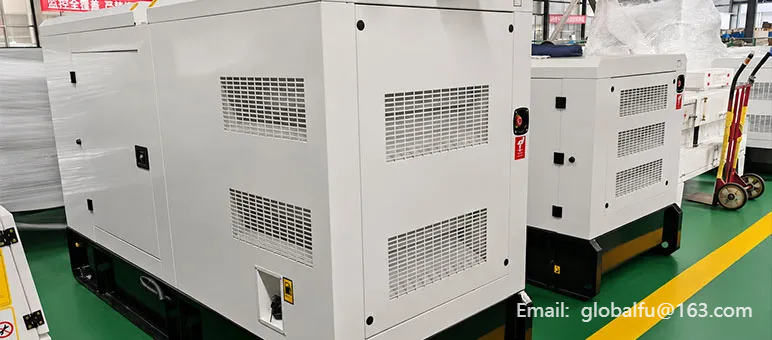

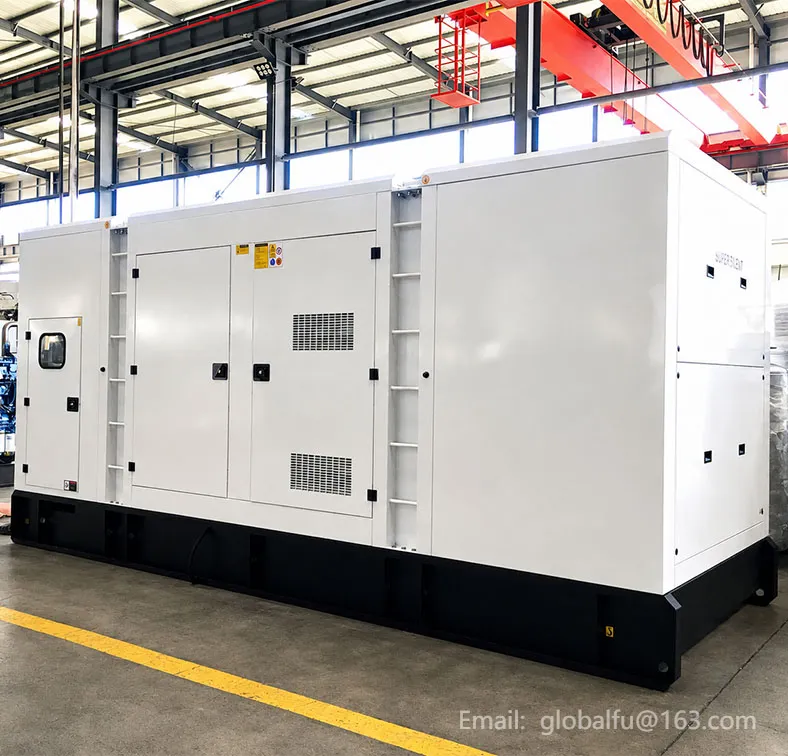

The generator set applies continuously upgraded silent technology to help reduce operating noise.
Lower noise performance is useful for commercial buildings, field construction, temporary project sites, and other working areas where noise control is important. The acoustic design helps make the unit more suitable for practical power supply applications in different environments.
The 50Hz configuration covers 16kW / 20kVA to 2500kW / 3125kVA prime power, with standby power from 18kW / 22kVA to 2650kW / 3300kVA.
This wide power range helps buyers select a suitable Cummins generator set according to actual load, voltage, frequency, prime or standby use, application scenario and installation environment. It can support both small backup power needs and larger industrial power supply applications.

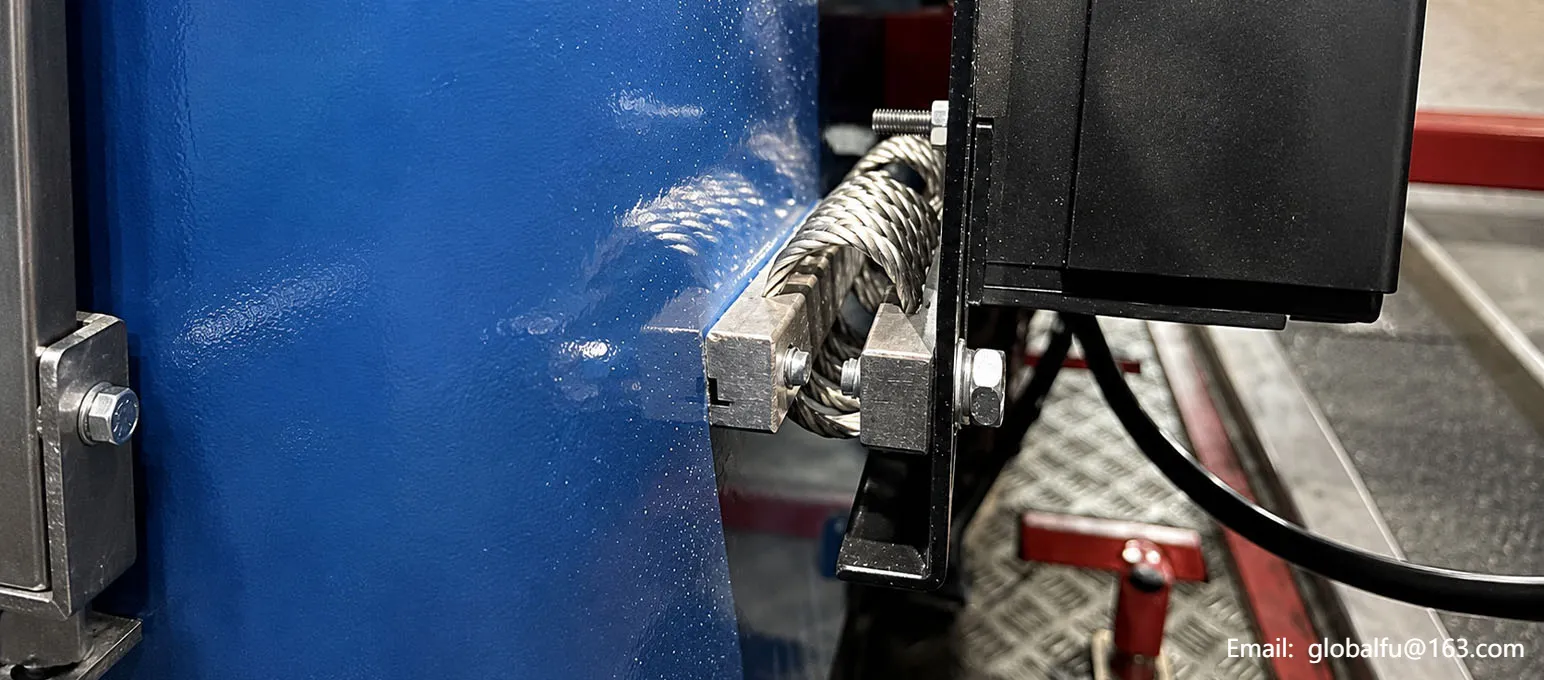

The unit is equipped with high-quality vibration damping pads designed to help reduce vibration during operation.
These damping components help protect the generator set structure, reduce operating impact on the base frame and support longer service life of the unit. For construction and industrial environments, better vibration control also helps improve operating stability.
The engine adopts a strong and durable cylinder block design.
The provided material highlights low vibration, low noise and low fuel consumption. This helps the generator set support stable operation in power supply applications such as hotels, hospitals, factories, aquaculture projects, coal mines and data facilities.
The Cummins genset series can be used as power or lighting power supply for field construction, commercial buildings, high-rise buildings, industrial and mining enterprises, oil field projects, highways, ports, telecommunications facilities, and other project sites.
For Kaishun’s construction machinery customers, this generator set series can also support temporary project power, remote jobsite operation, and backup power planning.

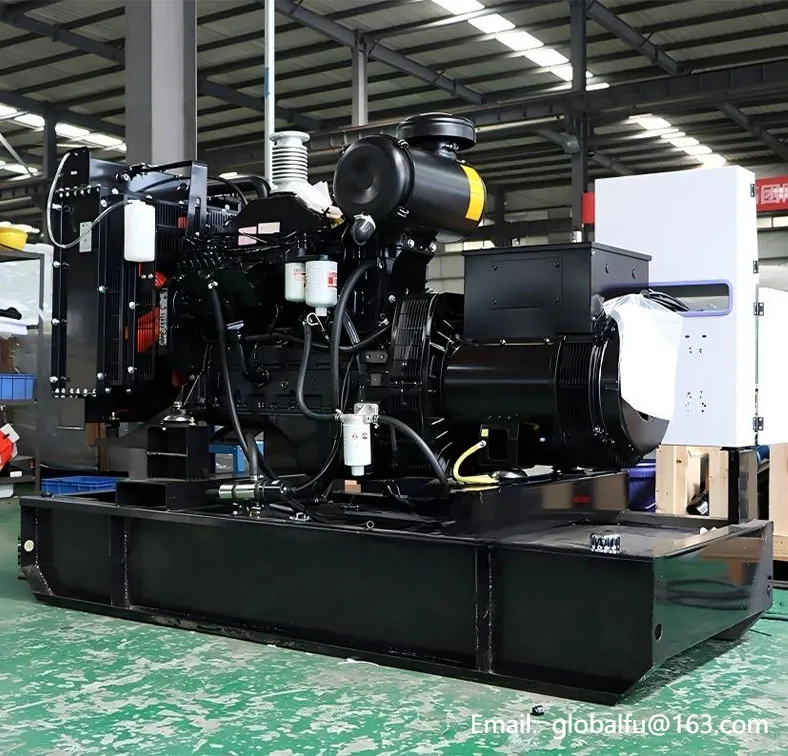

The generator set uses a high-strength bent base frame.
This base frame supports the generator set structure and helps improve installation stability and long-term durability during operation.
Built for reliable jobsite power, our generator sets provide stable energy for construction sites, remote projects, mining areas, farms, and emergency backup applications, with multiple power and engine options available.
